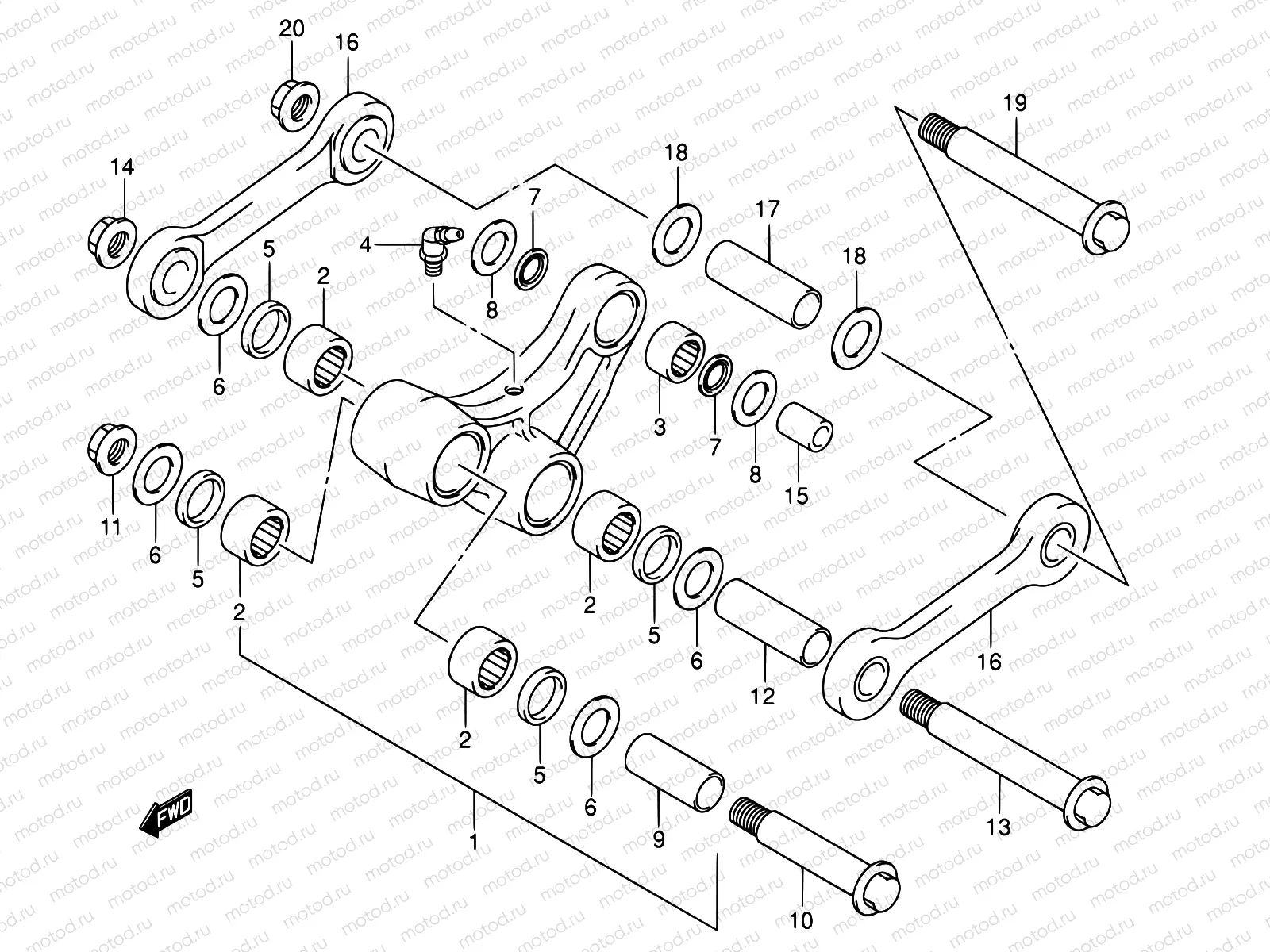

54 - REAR CUSHION LEVER

54 - REAR CUSHION LEVER
Например: 62600-29821
1
62600-29821
LEVER SET,RR CUSHION
31 085 ₽/шт
2
09263-20086
BEARING(20X27X15)
840 ₽/шт
3
09263-16033
BEARING(16X22X12)
1 034 ₽/шт
4
08351-3100A
Ниппель консистентной смазки
2 660 ₽/шт
5
62647-44A00
Уплотнение
388 ₽/шт
6
62647-37E00
WASHER,THRUST SWINGARM RR
204 ₽/шт
7
09284-16005
SEAL,OIL(16X22X2.5)
436 ₽/шт
8
62685-37E00
WASHER,THRUST LVR CUSHION RR
204 ₽/шт
9
62317-37E10
SPACER,CUSHION LEVER FR
1 020 ₽/шт
10
62658-37E01
BOLT,RR CUSHION LEVER FR
978 ₽/шт
11
09159-12056
Гайка
565 ₽/шт
12
62646-37E10
SPACER,RR CUSHION
1 020 ₽/шт
13
62621-37E01
BOLT,RR CUSHION
1 190 ₽/шт
14
09159-12056
Гайка
565 ₽/шт
15
62684-36E10
SPACER,RR CUSHION LEVER RR
711 ₽/шт
16
62640-37E11
ROD SET,RR CUSHION
9 540 ₽/шт
17
62646-37E10
SPACER,RR CUSHION
1 020 ₽/шт
18
62647-37E00
WASHER,THRUST SWINGARM RR
204 ₽/шт
19
62621-37E01
BOLT,RR CUSHION
1 190 ₽/шт
20
09159-12056
Гайка
565 ₽/шт
