Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 400 Burgman SUZUKI AN400 K8 Burgman 400 (E03,E28,E33) SUZUKI (VIN: JS1CG111) 54 - FRONT CALIPER

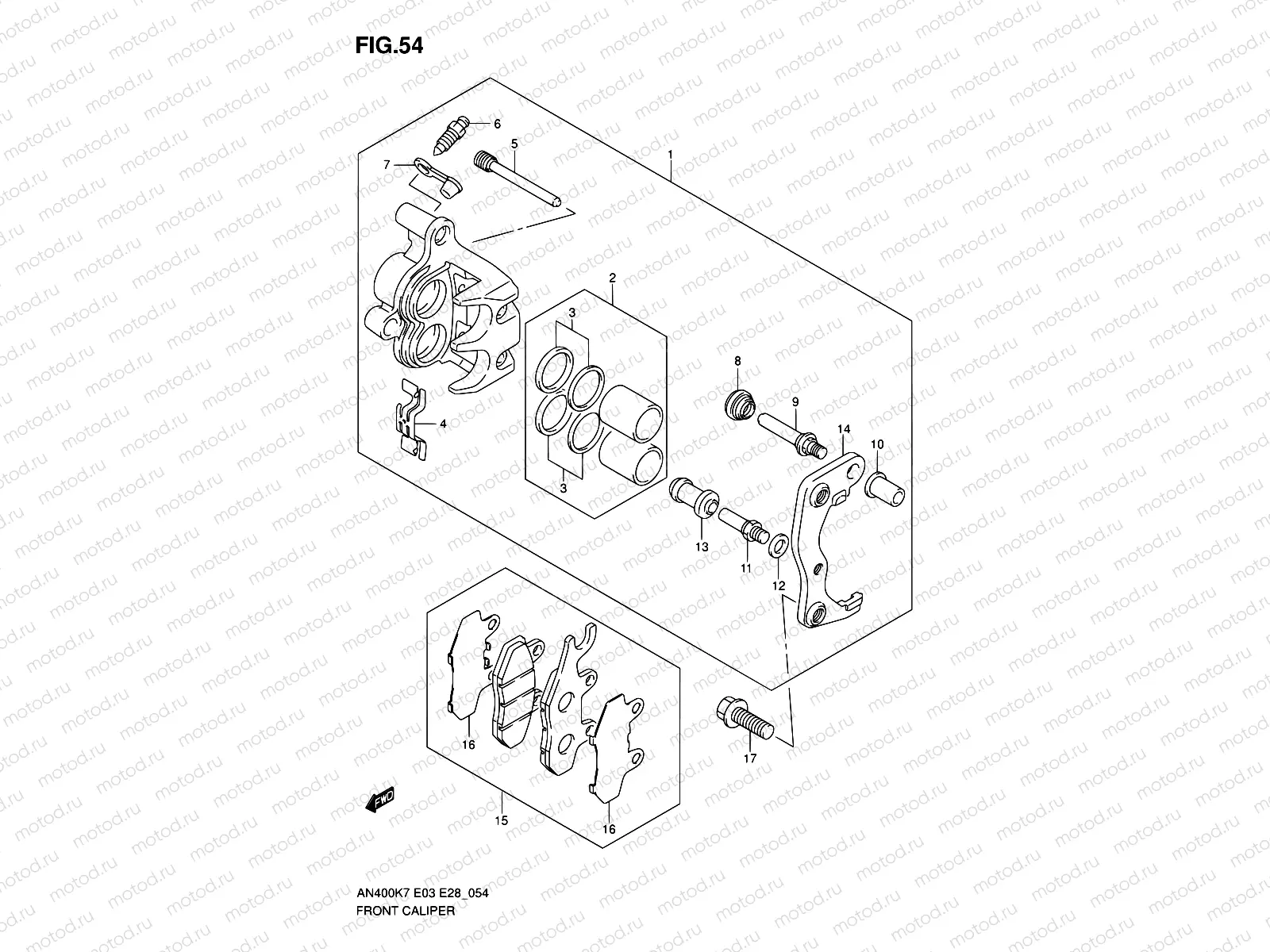

54 - FRONT CALIPER

54 - FRONT CALIPER

Например: 59100-05H00-999

1

59100-05H00-999

CALIPER ASSY,FR,R

46 002 ₽/шт

1

59300-05H00-999

CALIPER ASSY,FR,L

46 002 ₽/шт

2

59300-21810

PISTON SET

4 488 ₽/шт

3

59300-21860

SEAL SET,PISTON

2 229 ₽/шт

4

69115-31D10

Пружина

765 ₽/шт

5

59345-14600

PIN,HANGER

799 ₽/шт

6

59121-01A00

BLEEDER

1 226 ₽/шт

7

59122-01A00

CAP,BLEEDER

187 ₽/шт

8

59303-14500

Пыльник

307 ₽/шт

9

59387-00B20

Штырь штифт

1 150 ₽/шт

10

59388-00B20

Гайка

954 ₽/шт

11

59382-13A00

BOLT,PIN

485 ₽/шт

12

59314-13A00

Шайба

106 ₽/шт

13

59386-13A00

Пыльник

388 ₽/шт

14

69151-31D00

BRACKET

5 630 ₽/шт

14

59351-05H00

BRACKET,L

3 793 ₽/шт

15

59100-05820

Колодки тормозные, переднего правого суппорта

7 752 ₽/шт

15

59100-05830

Колодки тормозные, переднего левого суппорта

7 752 ₽/шт

16

69132-31D00

SHIM

649 ₽/шт

17

09103-10372

BOLT(10X25)

2 270 ₽/шт
