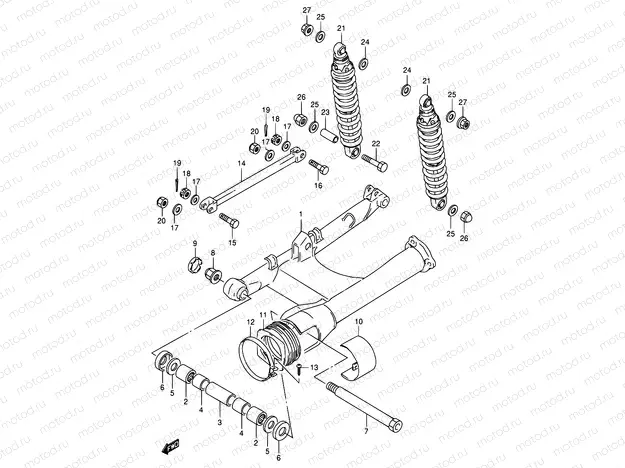

53 - REAR SWINGING ARM (E01)

53 - REAR SWINGING ARM (E01)
Например: 09263-25024
2
09263-25024
BEARING(25X33X30)
4 165 ₽/шт
3
61282-45C01
Spacer, pivot center
4
61251-17C00
SPACER,RR SWGARM PIVOT BERRING
5 049 ₽/шт
5
08211-20381
Шайба упорная
179 ₽/шт
6
61262-10D01
Couvrir
7
61211-45C01
SHAFT,RR SWINGINGARM PIVOT
6 217 ₽/шт
8
08319-3118A
Гайка
934 ₽/шт
9
61222-48B00
CAP,RR SWINGING ARM PIVOT
379 ₽/шт
11
61372-38A00
BOOT,PROPELLER SHAFT
4 080 ₽/шт
12
09402-92306-XC0
LAMP
258 ₽/шт
13
03211-0425B
Болт
82 ₽/шт
21
62100-45C20
Absorber assy, rear shock
22
09100-10247
BOLT(10X39)
2 310 ₽/шт
23
09180-10139
SPACER(10.2X14X20.7)
3 010 ₽/шт
24
08322-0114B
Шайба
1 370 ₽/шт
25
09160-10093
Шайба
144 ₽/шт
26
08313-10107
Гайка
1 520 ₽/шт
27
08316-1010B
Гайка
85 ₽/шт
