Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 400 Burgman SUZUKI AN400 K3 Burgman 400 (E02,E19,P37,E54) SUZUKI (VIN: JS1BW111) 53 - FRONT WHEEL

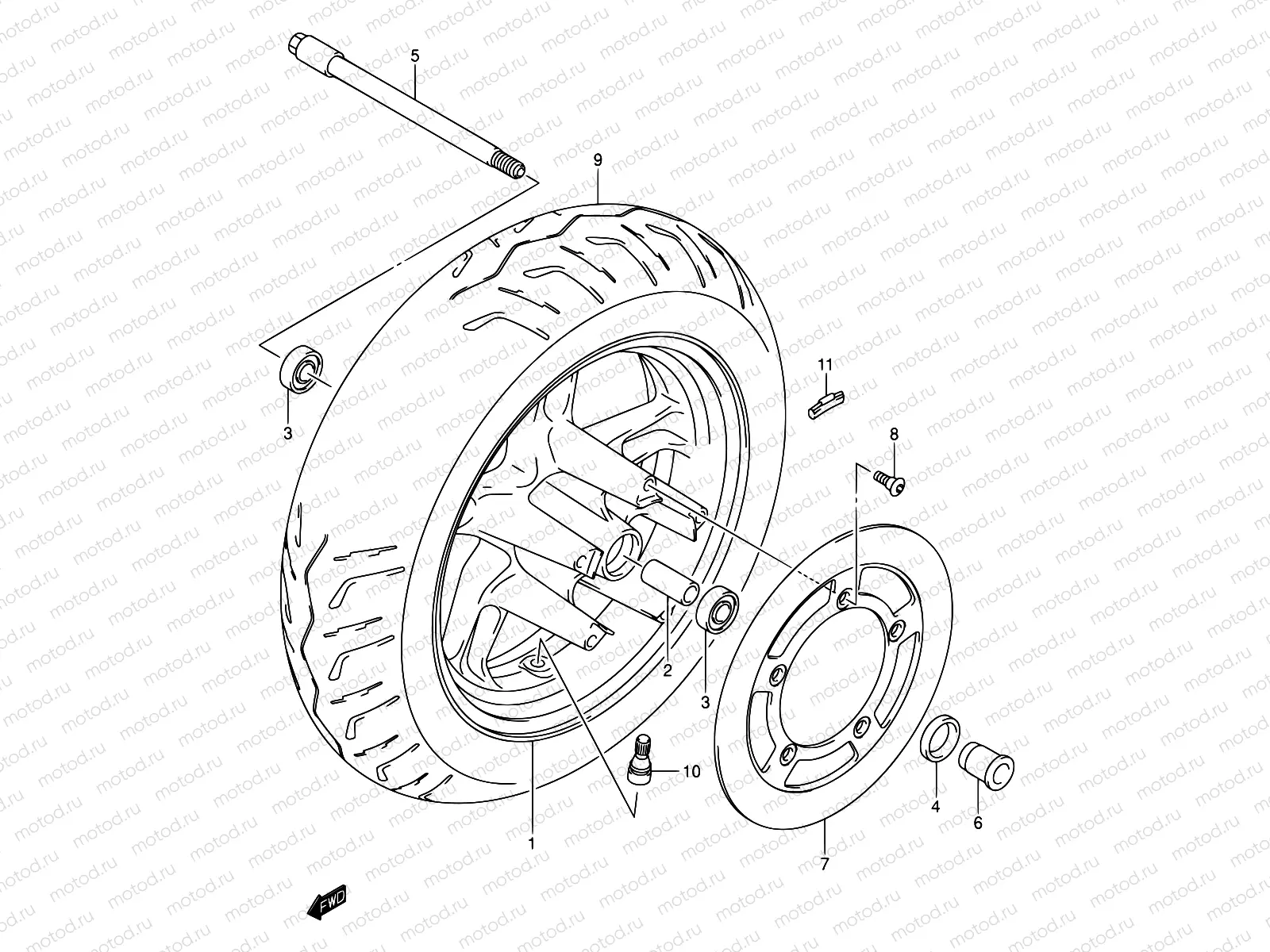

53 - FRONT WHEEL

53 - FRONT WHEEL

Например: 54111-14G00-YD8

1

54111-14G00-YD8

WHEEL,FR(13M/CXMT3.00)

65 824 ₽/шт

2

09180-15070

Шайба, подшипник

10 090 ₽/шт

3

08123-6202B

Wheel bearing

4

09284-22004

SEAL,OIL(22X35X5)

273 ₽/шт

5

54711-14F00

AXLE,FR

6 217 ₽/шт

6

54751-14F00

SPACER,FR AXLE,L

1 064 ₽/шт

7

59221-14G00

DISC,FR BRAKE

34 170 ₽/шт

8

09106-08160

БОЛТ

178 ₽/шт

9

55110-14F11

Шина передняя 110/90-13m/c 55pp

37 145 ₽/шт

10

43130-24A00

Ниппель

468 ₽/шт

11

43222-73H10-A05

Felni súly

11

43224-73H10-A05

BALANCER. WHEEL NO.2

11

43226-73H10-A05

BALANCER. WHEEL NO.3
