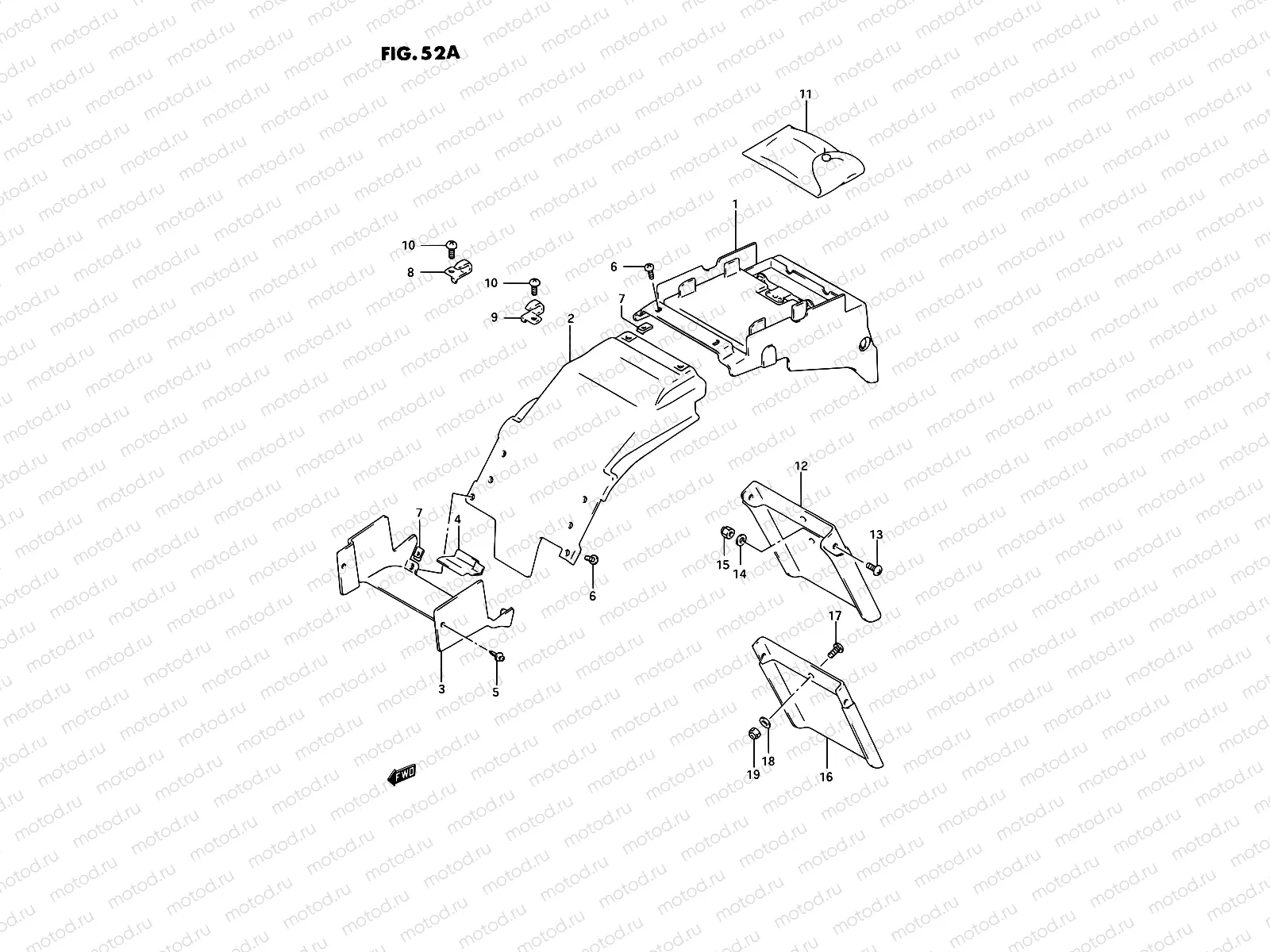

52A - REAR FENDER (MODEL R/S)

52A - REAR FENDER (MODEL R/S)
Например: 63110-17E00
1
63110-17E00
Rear fender
1
63110-17E20
Fender, rear upper
2
63114-17E10
Fender, rear front
3
63113-17E10
Fender,rr upp.f
4
63411-17E00
Mudguard, rear fender
5
09409-06322-5PK
ХОМУТ МАЛЫЙ
306 ₽/шт
6
02142-0512A
Болт
85 ₽/шт
7
94484-24F00
Гайка
178 ₽/шт
8
95721-17E00
Holder,helmet
9
95731-17E00
Holder, helmet lh
10
02142-0612B
Винт
81 ₽/шт
11
09800-21086
Tool assy
12
63311-17E80
xtension,rr fe
12
63311-17E50
xtension, rear fender
12
63311-17E60
xtension, rear fender
13
02142-0616A
Болт
81 ₽/шт
14
09160-06084
Шайба 6.5X18X1
81 ₽/шт
15
08319-2106A
Гайка
114 ₽/шт
16
63331-17E00
Mud guard, rear fender
17
02142-0616A
Болт
81 ₽/шт
18
09160-06084
Шайба 6.5X18X1
81 ₽/шт
19
08319-2106A
Гайка
114 ₽/шт
