Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DR-Z 400 SM SUZUKI DR-Z400SM K9 (E02) SUZUKI 52 - REAR SWINGING ARM

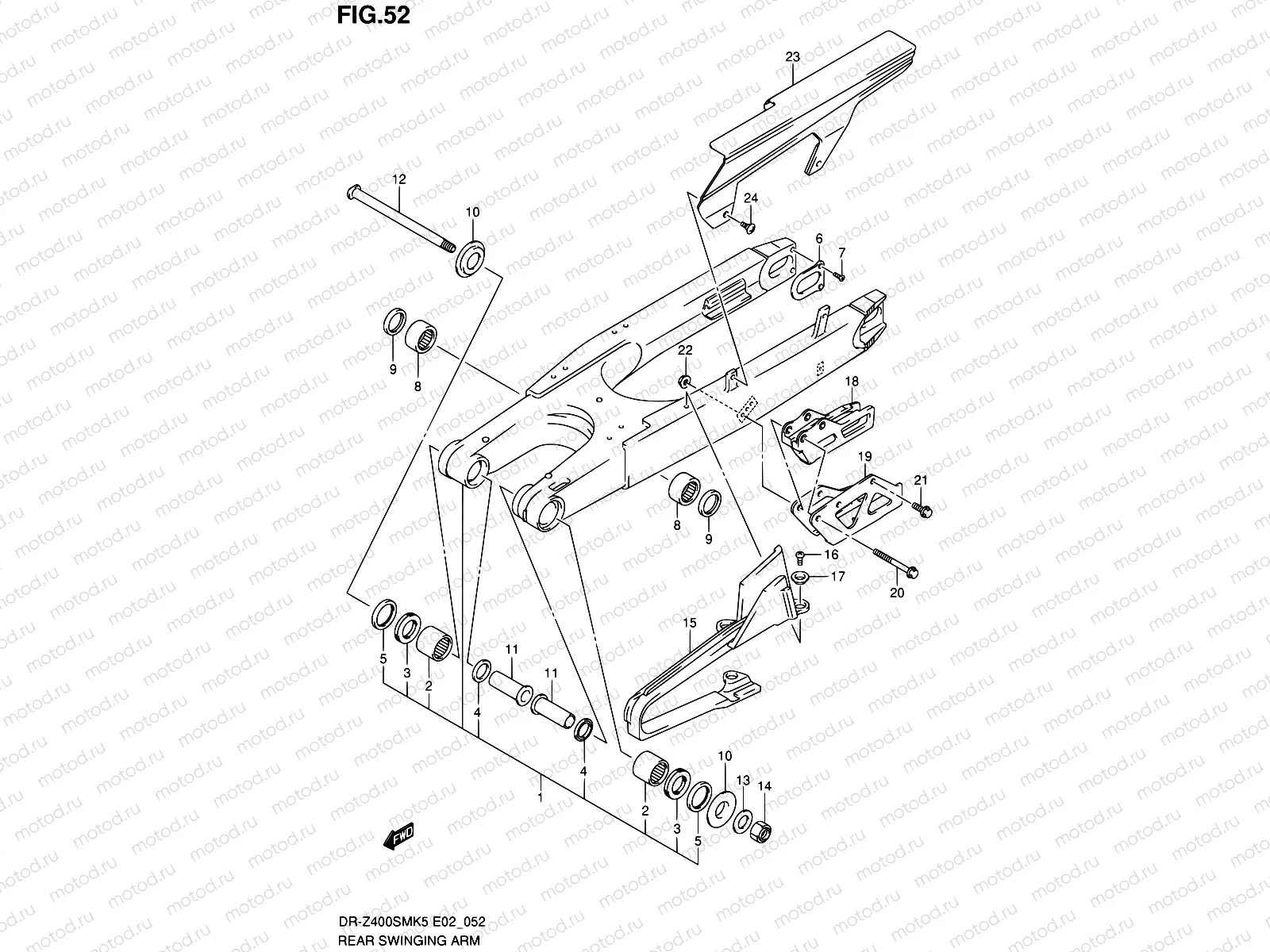

52 - REAR SWINGING ARM

52 - REAR SWINGING ARM
Например: 61000-29F70
1
61000-29F70
Arm,rr swinging
2
09263-22017
BEARING(22X29X30)
1 308 ₽/шт
3
09263-22064
ПОДШИПНИК ВЫЖИМНОЙ
1 324 ₽/шт
4
09285-22006
Seal,oil
226 ₽/шт
5
61262-36E00
SEAL,RR SWGARM PIVOT OUTER
388 ₽/шт
6
61128-37E00
Plate,swinginga
7
02122-0410B
Винт
1 370 ₽/шт
8
09263-20086
BEARING(20X27X15)
840 ₽/шт
9
62647-44A00
Уплотнение
388 ₽/шт
10
61250-44E00
SPACER,SWINGINGARM PIVOT OUTER
884 ₽/шт
11
61252-36E00
SPACER,SWGARM PIVOT INNER
1 454 ₽/шт
12
61211-29F00
SHAFT,RR SWINGINGARM PIVOT
2 805 ₽/шт
13
08322-0116B
Шайба
82 ₽/шт
14
09159-16007
ШАЙБА
7 740 ₽/шт
15
61273-29F20
BUFFER,CHAIN TOUCH DEFENSE
4 262 ₽/шт
16
02112-0508B
Болт
1 090 ₽/шт
17
09169-05022
Шайба
2 150 ₽/шт
18
61341-35G00
Направляющая chain
3 485 ₽/шт
19
61342-37F00
PLATE,CHAIN GUIDE
3 145 ₽/шт
20
09103-06244
BOLT(6X50)
2 190 ₽/шт
21
09103-06233
БОЛТ
1 250 ₽/шт
22
08319-3106B
Гайка
1 490 ₽/шт
23
61310-34E00
Корпус натяжения
3 825 ₽/шт
24
09139-06083
БОЛТ
194 ₽/шт
