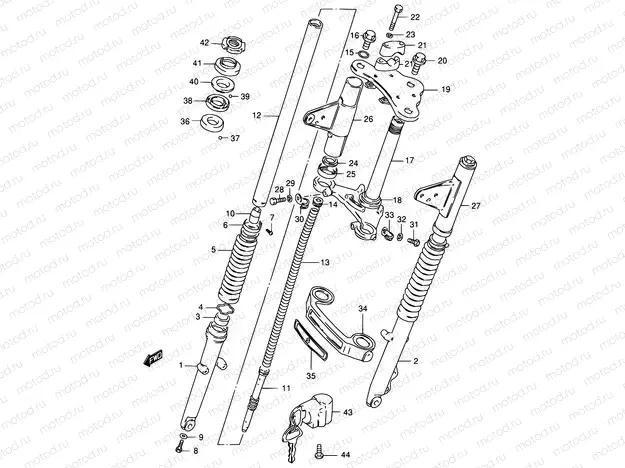

52 - FRONT FORK (GS125Z/D)

52 - FRONT FORK (GS125Z/D)

Например: 51100-05360-291

0

51100-05360-291

Front fork assy

1

51130-36500

PONTEIRA DTA

2

51140-05360

.tube, outer lh

3

51153-16F00

SEAL,OIL

833 ₽/шт

4

51156-39260

RING,SNAP

274 ₽/шт

5

51571-29500

Ботинок

2 502 ₽/шт

6

51575-29500

BAND,BOOT

669 ₽/шт

7

02112-0416A

Болт

82 ₽/шт

8

51147-16510

BOLT,FORK CYLINDER(10X25)

238 ₽/шт

9

51148-41310

GASKET

170 ₽/шт

10

51195-36220

PIECE,OIL LOCK

748 ₽/шт

11

51146-05330

Цилиндр

3 851 ₽/шт

12

51110-39680

TUBE,FORK INNER

12 395 ₽/шт

13

51171-05330

SPRING.FR FORK

14

51353-36220

Гайка

551 ₽/шт

15

09280-22001

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

178 ₽/шт

16

51351-39221

CAP,FORK

1 207 ₽/шт

17

51410-36231

STEM,STEERING

15 327 ₽/шт

18

51621-33001

RACE,STEERING OUTER LWR

867 ₽/шт

19

51310-05330-291

Head,steering s

20

51352-39220

BOLT

238 ₽/шт

21

56211-27200-291

HOLDER,HANDLE UPR

931 ₽/шт

22

01204-08557

BOLT

129 ₽/шт

23

08321-01087

Пластина замка

81 ₽/шт

24

51553-25210

CUSHION,HEAD LAMP BRACKET

238 ₽/шт

25

51551-10200

Направляющая

289 ₽/шт

26

51530-05330-291

BRACKET,HEADLAMP,R

3 597 ₽/шт

27

51540-05330-291

.bracket, headlamp lh

28

51451-28012

BOLT,FR FORK LWR(12X33)

817 ₽/шт

29

08321-01127

Пластина замка

85 ₽/шт

30

51455-36010

CLIP

243 ₽/шт

31

02112-0610B

Винт

81 ₽/шт

32

08321-01067

Шайба, стопорная

81 ₽/шт

33

51453-05110

CLIP,BRAKE CABLE

243 ₽/шт

34

51871-05350-291

Cover, front fork

35

68211-38300

EMBLEM,FR FORK COVER

899 ₽/шт

36

51611-33002

ПРОКЛАДКА

867 ₽/шт

37

06111-08003

Шарик стальной

82 ₽/шт

38

51611-20002

STEERING UPPER RACE

646 ₽/шт

39

06111-06003

Шарик стальной

85 ₽/шт

40

51621-28000

Обойма подшипника

680 ₽/шт

41

51643-25001

DUST SEAL,STEERING UPR

238 ₽/шт

42

51631-28000

NUT,STEERING STEM(25X44X10)

935 ₽/шт

43

51910-25311

LOCK ASSY,STEERING

2 584 ₽/шт

44

02112-35127

Винт 5X12

900 ₽/шт
