Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX-R 750 SUZUKI GSX-R750 K2 SUZUKI (VIN: JS1BD111) 52 - FRONT DAMPER

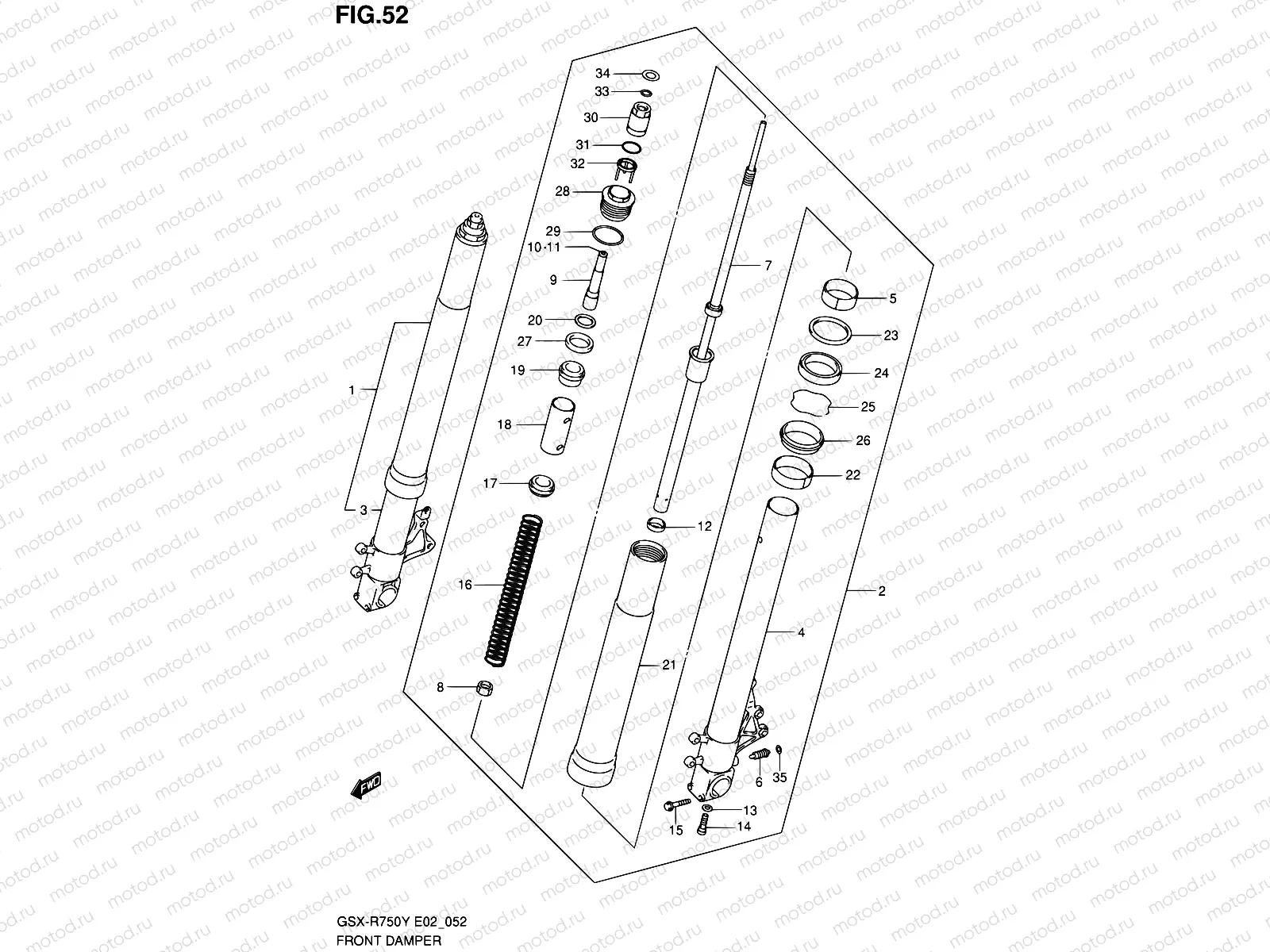

52 - FRONT DAMPER

52 - FRONT DAMPER

Например: 51103-35F30

1

51103-35F30

RH FR FORK DAMPER ASSY

1

51103-35F50

Damper assy, front fork rh

2

51104-35F30

LH FR FORK DAMPER ASSY

2

51104-35F50

Damper assy, front fork lh

3

51110-35F00

TUBE,INNER,R

56 848 ₽/шт

4

51120-35F00

TUBE,INNER,L

56 848 ₽/шт

5

51121-13E00

Скользящая втулка

840 ₽/шт

6

51830-33E00

PIECE,ADJUST

11 645 ₽/шт

7

52110-35F00

ROD,FR DAMPER

38 709 ₽/шт

8

51827-33E00

Гайка

864 ₽/шт

9

51829-33E20

CASE,ADJUSTER

6 960 ₽/шт

10

51821-33E00

PIECE,ADJUST

4 080 ₽/шт

11

09280-03002

Прокладка масляного насоса

1 130 ₽/шт

12

51815-33E00

PLATE,CENTERING

1 548 ₽/шт

13

09161-10009

Шайба

113 ₽/шт

14

51147-17C00

Болт

1 632 ₽/шт

15

51166-35F00

Болт

306 ₽/шт

16

51171-35F00

Spring

17

51172-17E00

JOINT,SPRING

1 785 ₽/шт

18

51176-33E00

Прокладка

1 533 ₽/шт

19

51175-22D00

GUIDE,SPRING UPR

1 479 ₽/шт

20

51172-34370

GUIDE,SPRING

238 ₽/шт

21

51131-35F00

Tube,outer

22

51152-13E00

Направляющая втулка

1 276 ₽/шт

23

51168-17C00

SPACER,SEAL

505 ₽/шт

24

51153-14D00

Сальник

1 486 ₽/шт

25

51556-38B00

Кольцо

243 ₽/шт

26

51173-29E00

Уплотнение

1 241 ₽/шт

27

51193-17D00

RUBBER,SEAT

1 156 ₽/шт

28

51189-35F00

BOLT,FORK

10 224 ₽/шт

29

51187-08D00

O RING,FORK BOLT

289 ₽/шт

30

51828-35F00

ADJUSTER,SPRING

4 848 ₽/шт

31

51199-17D00

O RING

204 ₽/шт

32

51823-22D30

PLATE,SPRING ADJUSTER

4 165 ₽/шт

33

51837-17D00

Кольцо стопорное

238 ₽/шт

34

51149-42E00

LABEL,ADJUST PIECE UPR

162 ₽/шт

35

51169-42E00

LABEL,ADJUST PIECE LWR

170 ₽/шт
