Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSX-R 600 SUZUKI GSX-R600 K9 (E02,E19,E24) SUZUKI (VIN: JS1CV111) 51A - UNDER COWLING (MODEL K9)

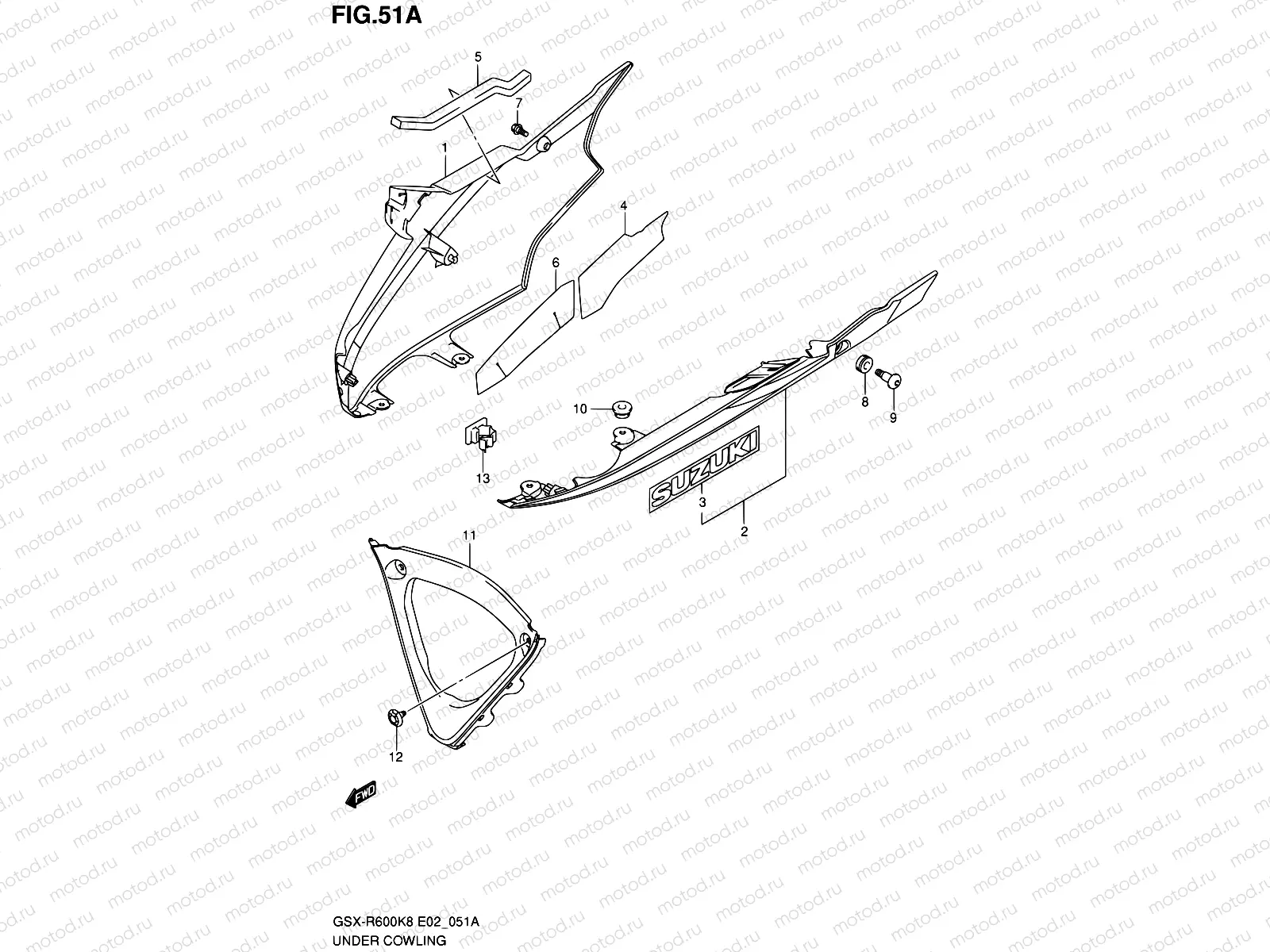

51A - UNDER COWLING (MODEL K9)

51A - UNDER COWLING (MODEL K9)

Например: 94470-37H00-02X

1

94470-37H00-02X

COWLING,UNDER,R(BLACK)

51 238 ₽/шт

1

94470-37H00-YPA

COWLING,UNDER,R(WHITE)

54 604 ₽/шт

1

94470-37H00-14X

Cowling comp,un

1

94470-37H00-YSF

ОБТЕКАТЕЛЬ

56 474 ₽/шт

2

94480-37H00-02X

COWLING,UNDER,L(BLACK)

48 994 ₽/шт

2

94480-37H00-YPA

COWLING,UNDER,L(WHITE)

51 986 ₽/шт

2

94480-37H00-14X

COWLING,UNDER,L(BLACK)

49 368 ₽/шт

2

94480-37H00-YSF

COWLING,UNDER,L(BLUE)

53 482 ₽/шт

3

68181-33C20-17U

ЭМБЛЕМА

1 795 ₽/шт

3

68181-33C20-YLC

EMBLEM,SUZUKI

2 209 ₽/шт

3

68181-33C20-YD8

ЭМБЛЕМА

2 210 ₽/шт

3

68181-33C20-YBD

ЭМБЛЕМА "SUZUKI"

2 170 ₽/шт

4

94472-37H00

SHIELD,UNDER COWL HEAT,R

1 372 ₽/шт

5

94477-37H00

CUSHION,UNDER COWLING

2 581 ₽/шт

6

94472-37H10

SHIELD,UNDER COWL HEAT,R

1 889 ₽/шт

7

09139-05064

Болт

162 ₽/шт

8

09320-09016

РЕЗИНКА

162 ₽/шт

9

09139-06126

БОЛТ МЕТАЛЛ (6х20)

194 ₽/шт

10

09321-10018

САЙЛЕНТБЛОК

238 ₽/шт

11

94498-37H00

COWLING,UNDER CTR

3 441 ₽/шт

12

94479-35F00

КЛИПСА КРЕПЕЖНАЯ, ПЛАСТИК

162 ₽/шт

13

09403-14311

Хомут

3 210 ₽/шт
