Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DL 650 V-Strom SUZUKI DL650A L8 V-Strom (E21,C733AZ) SUZUKI (VIN: JS1C733A) 505A - SEAT

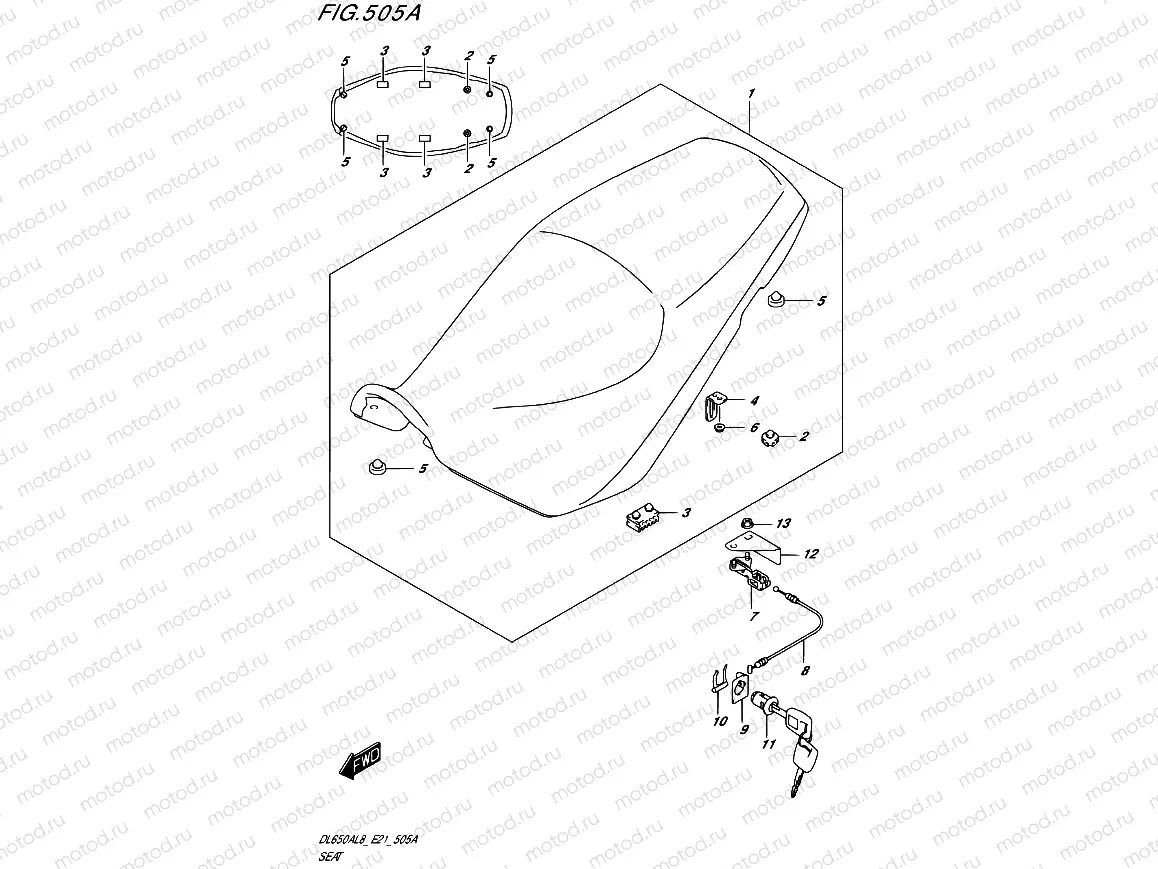

505A - SEAT

505A - SEAT

Например: 45100-28K01-BGP

1

45100-28K01-BGP

Seat Assy

33 235 ₽/шт

1 шт. в узле

2

45148-20G90

CUSHION,SEAT MOUNT

204 ₽/шт

2 шт. в узле

3

09321-08006

САЙЛЕНТБЛОК

194 ₽/шт

4 шт. в узле

4

45212-18K00

STRIKER,SEAT LOCK

587 ₽/шт

1 шт. в узле

5

45148-28K00

CUSHION

238 ₽/шт

4 шт. в узле

6

08316-1006A

Гайка

85 ₽/шт

2 шт. в узле

7

45220-04K20

BRACKET COMP,STRIKER SUPPORT

1 955 ₽/шт

1 шт. в узле

8

45280-28K00

CABLE COMP,SEAT LOCK

1 173 ₽/шт

1 шт. в узле

9

45288-14F00

Направляющая кабеля

262 ₽/шт

1 шт. в узле

10

45289-28K00

PLATE,SEAT LOCK ASSY

391 ₽/шт

1 шт. в узле

11

95700-14810

ЗАМОК ВМЕСТЕ С КЛЮЧАМИ

4 522 ₽/шт

1 шт. в узле

12

45288-28K00

GUARD,SEAT LOCK

860 ₽/шт

1 шт. в узле

13

08316-1006A

Гайка

85 ₽/шт

2 шт. в узле
