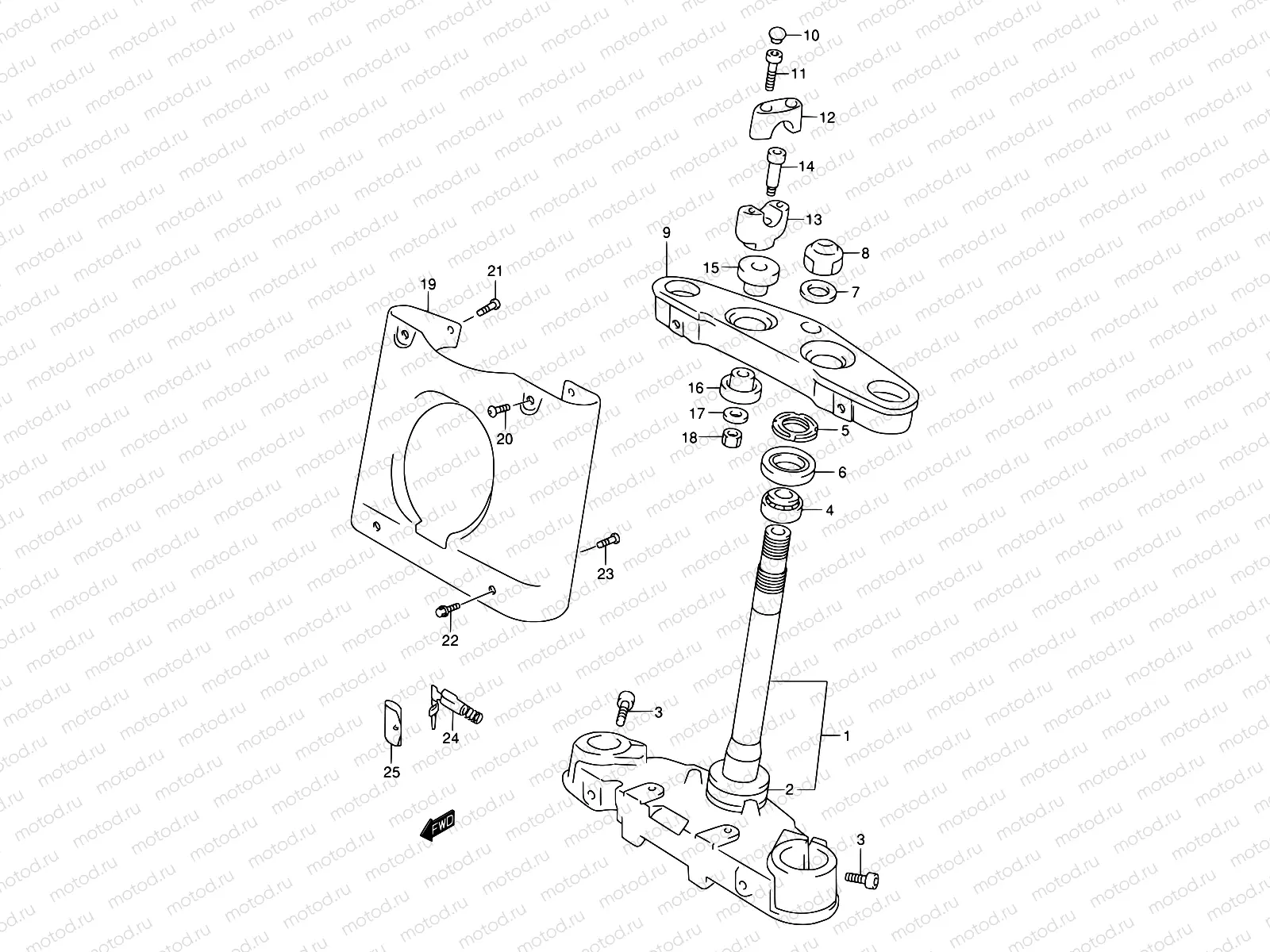

50 - STEERING STEM (MODEL W/X)

50 - STEERING STEM (MODEL W/X)
Например: 51410-10F00
1
51410-10F00
Stem,steering
2
09265-30034
Bearing
3 392 ₽/шт
3
51147-10F00
BOLT,STEM
352 ₽/шт
4
09265-25019
BEARING(25X47X15)
2 746 ₽/шт
5
51631-28000
NUT,STEERING STEM(25X44X10)
935 ₽/шт
6
51643-40503
Seal,dust
727 ₽/шт
7
51356-24B01
Шайба
655 ₽/шт
8
51353-24B00
ГАЙКА
1 785 ₽/шт
9
51311-10F00
Head,strng.stem
10
09250-06009
Крышка
194 ₽/шт
11
07130-08307
Болт
146 ₽/шт
12
56211-38A01
Держатель рукоятки, верхний
7 140 ₽/шт
13
56221-10F00
Держатель рукоятки, нижний
5 826 ₽/шт
14
51226-10F00
BOLT
3 499 ₽/шт
15
56240-38A42
DAMPER,RUBBER
3 675 ₽/шт
16
56242-39A12
CUSHION,RUBBER UNDER
3 148 ₽/шт
17
51354-38A40
Шайба
630 ₽/шт
18
09159-10027
Гайка
211 ₽/шт
19
51515-10F00
Cover, fr.fork
20
09139-08007
Винт
194 ₽/шт
21
09139-06027
Винт (6х12)
194 ₽/шт
22
01550-0816B
Болт крепёжный
97 ₽/шт
23
09139-06027
Винт (6х12)
194 ₽/шт
24
51900-309V0
LOCK SET,STEERING
13 959 ₽/шт
25
51920-48E00
CASE,STEERING KEY
1 067 ₽/шт
