Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 650 Burgman SUZUKI AN650A K7 Burgman 650 (E03,E28,E33) SUZUKI (VIN: JS1BU132, JS1CP51B) 50 - SIDE COVER (AN650AK6/K7/AK7)

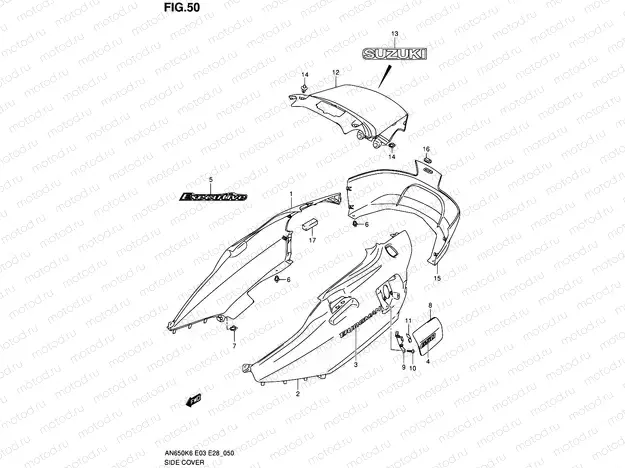

50 - SIDE COVER (AN650AK6/K7/AK7)

50 - SIDE COVER (AN650AK6/K7/AK7)

Например: 47111-10G20-YHG

1

47111-10G20-YHG

COVER,SIDE,R(GRAY)

28 543 ₽/шт

1

47111-10G20

COVER,SIDE,R(NON PAINT)

13 059 ₽/шт

1

47111-10G20-YHL

COVER,SIDE,R(GRAY)

28 543 ₽/шт

2

47211-10G31-YHF

COVER,SIDE,L(GRAY)

34 408 ₽/шт

2

47211-10G32-YHG

Cover,side,l

34 408 ₽/шт

2

47211-10G31-YHL

COVER,SIDE,L(GRAY)

34 408 ₽/шт

3

68131-10G10

EMBLEM,COVER SIDE

7 370 ₽/шт

4

68131-10GA0

EMBLEM,650

1 935 ₽/шт

5

68165-10GB0-DAY

EMBLEM,EXECUTIVE

974 ₽/шт

5

68165-10GB0-DAZ

EMBLEM,EXECUTIVE

974 ₽/шт

5

68165-10GB0-DBA

Emblem,executi

5

68165-10GB0-ECB

mblem,executi

6

09409-06314-5PK

КЛИПСА КРЕПЁЖНАЯ, ПЛАСТИК

162 ₽/шт

7

09409-08308-5ES

CLIP(GRAY)

178 ₽/шт

8

47381-10G11-YHF

LID,FUEL

3 148 ₽/шт

8

47381-10G11-YHG

LID,FUEL

3 148 ₽/шт

8

47381-10G11-YHL

ID,FUEL

3 148 ₽/шт

9

47382-10G10

Петля

711 ₽/шт

10

03541-0512B

Винт

81 ₽/шт

11

47388-10G01

ПРУЖИНКА

162 ₽/шт

12

47311-10G11-YHF

COVER,FRAME CTR

6 295 ₽/шт

12

47311-10G11-YHG

COVER,FRAME CTR

6 295 ₽/шт

12

47311-10G11-YHL

COVER,FRAME CTR

6 295 ₽/шт

13

68271-34A01-YES

mblem,"suzuki"

578 ₽/шт

14

09409-08308-5ES

CLIP(GRAY)

178 ₽/шт

15

47321-10G00-YHF

COVER,FRAME LWR

9 384 ₽/шт

15

47321-10G00-YHG

COVER,FRAME LWR

15 130 ₽/шт

15

47321-10G00-YHL

COVER,FRAME LWR

9 384 ₽/шт

16

09320-04012

Cushion

187 ₽/шт

17

47115-10G00

CUSHION,FRAME COVER

170 ₽/шт
