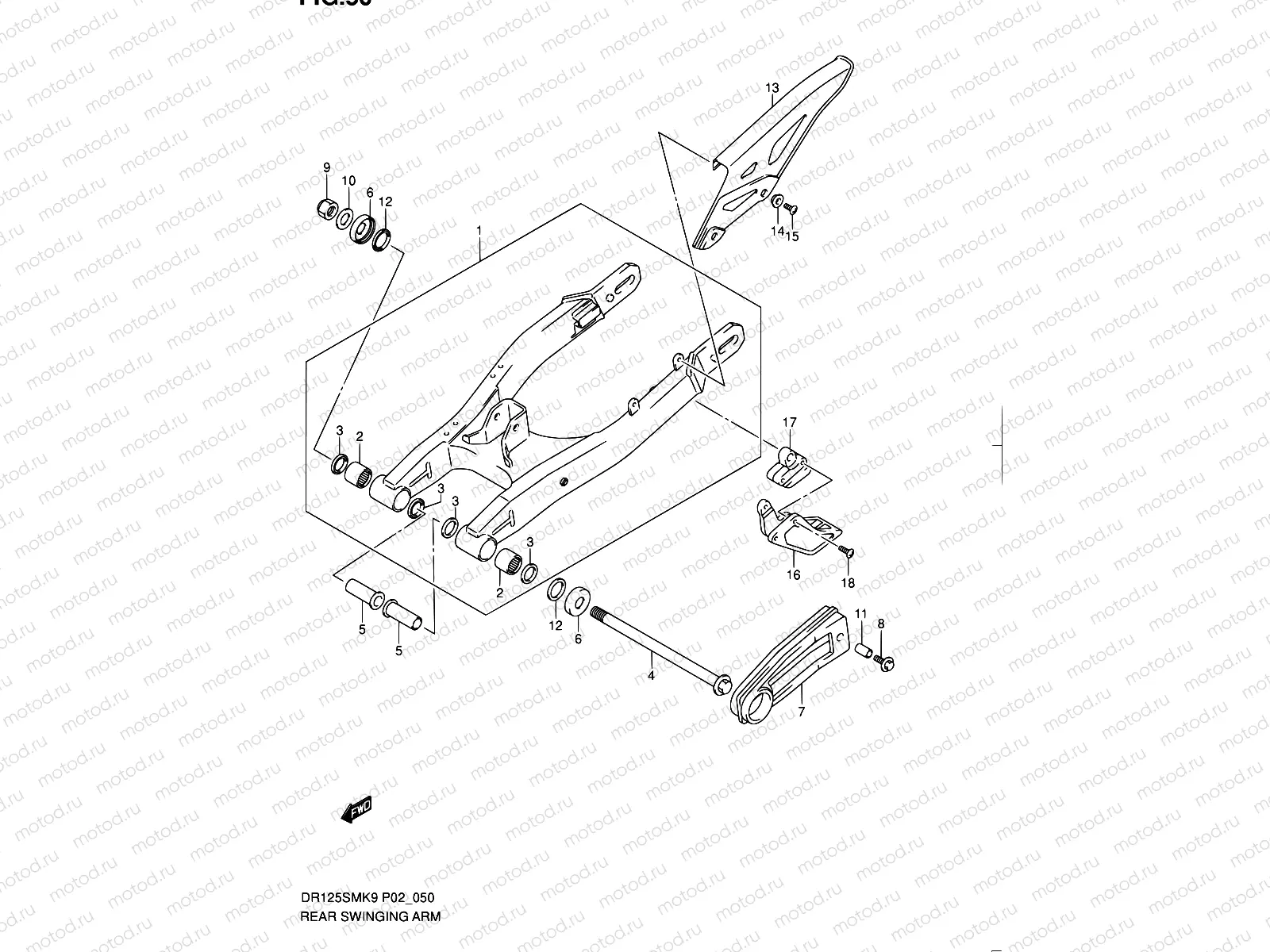

50 - REAR SWINGING ARM

50 - REAR SWINGING ARM
Например: 61000-24H00-EE3
1
61000-24H00-EE3
Swingingarm dr1
2
61261-13700
BUSHING,RR SWGARM PIVOT
962 ₽/шт
3
09283-20031
SEAL,OIL(20X27X5)
339 ₽/шт
4
61211-24H00
SHAFT. RR SWGARM PIVOT
5
61251-24H00
SPACER. RR SWGARM PIVOT
6
61262-38301
Seal,dust
748 ₽/шт
7
61273-24H00
BUFFER. CHAIN TOUCH DEF
8
09116-06152
BOLT(6X20)
146 ₽/шт
9
09159-14019
Гайка
7 080 ₽/шт
10
09160-14057
Шайба
1 520 ₽/шт
11
09180-06306
SPACER(6.5X9X5)
1 250 ₽/шт
12
08211-14321
Шайба упорная
162 ₽/шт
13
61311-24H00-291
CASE.CHAIN DR125SM
14
09169-06041
Шайба
85 ₽/шт
15
02142-0612B
Винт
81 ₽/шт
16
61341-13A10
Направляющая chain
1 975 ₽/шт
17
61345-42A00
RUBBER,CHAIN GUIDE
845 ₽/шт
18
02142-0620B
Болт
1 060 ₽/шт
