Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1100 SUZUKI GS1150EF G SUZUKI 5 - CRANKCASE (~E.102247)

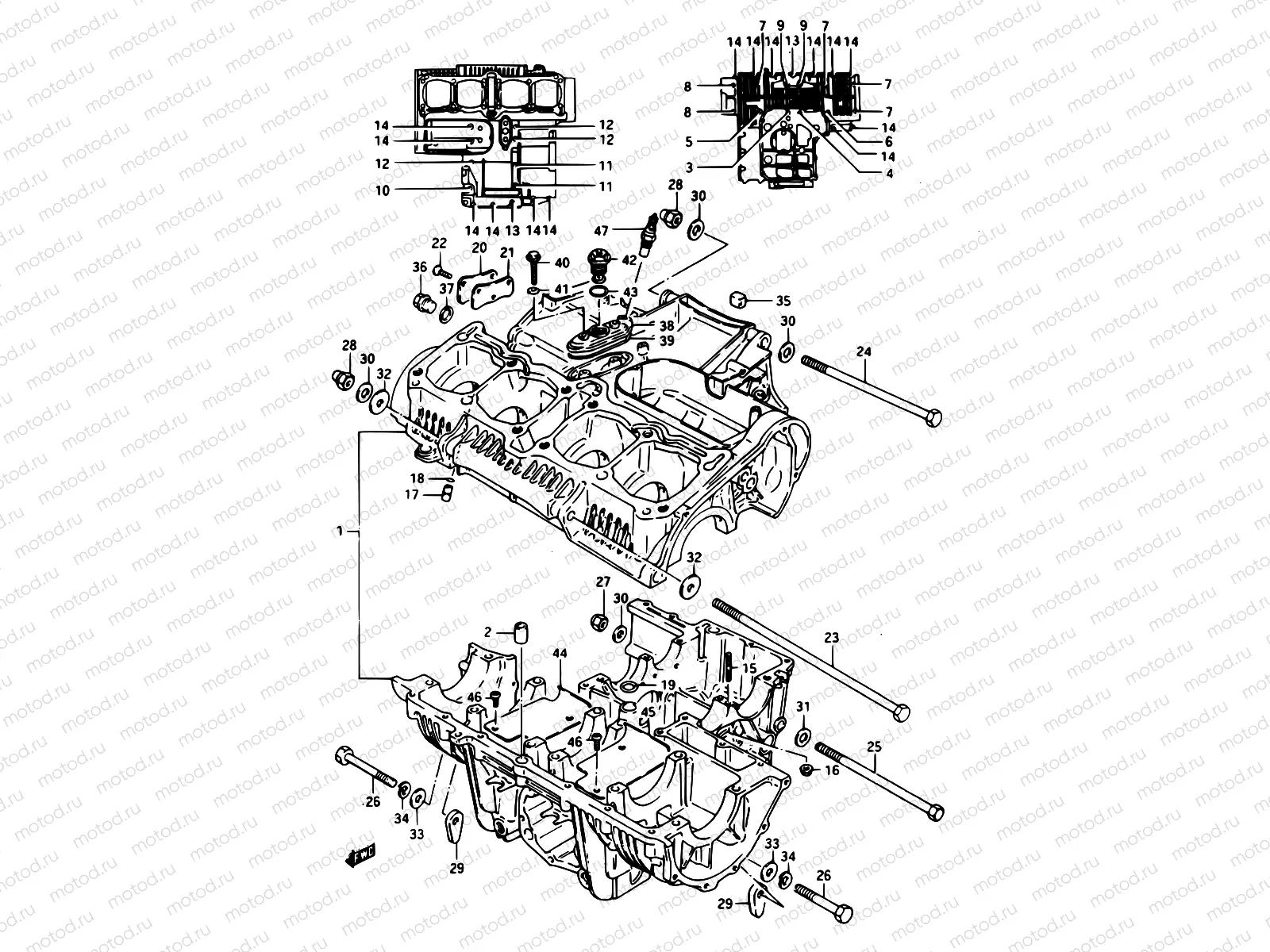

5 - CRANKCASE (~E.102247)

5 - CRANKCASE (~E.102247)

Например: 09108-10070

1

09108-10070

Stud bolt (l:165)

1

11241-00A10

Joint d'embase cylindre

1

09280-11005

Кольцо цилиндра

258 ₽/шт

1

11300-00817

Crankcase assy

2

04211-13189

ШТИФТ

129 ₽/шт

3

09103-08137

.bolt (8x170)

4

09103-08038

BOLT(8X135)

3 280 ₽/шт

5

09103-08098

BOLT(8X115)

1 920 ₽/шт

6

09103-08070

BOLT(8X100)

3 280 ₽/шт

7

01550-0890A

Болт

2 310 ₽/шт

8

01550-0865B

Болт

2 310 ₽/шт

9

01550-0860B

Болт

2 310 ₽/шт

10

01550-0850A

Болт

1 840 ₽/шт

11

01550-0685B

Болт

2 030 ₽/шт

12

01550-0675B

OLT

2 030 ₽/шт

13

01550-0655B

Болт

97 ₽/шт

14

01550-0640A

Болт

1 410 ₽/шт

15

01421-0650A

Болт

1 210 ₽/шт

16

08319-31067

Гайка

153 ₽/шт

17

09364-05005

Болт соединяющий

2 070 ₽/шт

18

09280-03003

O RING(D:1.05,ID:3.1)

1 090 ₽/шт

19

09280-13001

O RING(D:3.2,ID:12.9)

1 880 ₽/шт

20

11394-45000

Cap,oil gallery

21

11497-45000-H17

Gasket

22

02122-0616B

Болт

85 ₽/шт

23

09104-10028

Bolt (10x290)

24

09104-10025

Bolt (10x180)

25

09100-10078

БОЛТ

8 210 ₽/шт

26

09104-10015

Bolt (10x60)

27

09159-10028

Nut

28

09159-10064

Гайка

5 040 ₽/шт

29

09159-10020

NUT

3 990 ₽/шт

30

08322-0110B

Шайба

85 ₽/шт

31

08322-0110B

Шайба

85 ₽/шт

32

09160-10094

WASHER(10.5X30X3.2)

119 ₽/шт

33

09160-10005

WASHER(10.5X20X3.2)

980 ₽/шт

34

08321-01107

Шайба, стопорная

85 ₽/шт

35

11252-25000

PAD,CYLINDER

364 ₽/шт

36

09247-14026

Пробка редуктора сливная

289 ₽/шт

37

09168-14004

Прокладка

129 ₽/шт

38

16445-49010

Housing, switch

39

16448-45000

O RING,PRESSURE SWITCH HOUSING

743 ₽/шт

40

09116-06147

Болт копрусный

162 ₽/шт

41

09168-06023

ПРОКЛАДКА

162 ₽/шт

42

37820-45061

SWITCH ASSY,OIL PRESSURE

2 170 ₽/шт

43

09280-19001

КОЛЬЦО

170 ₽/шт

44

11521-49201

PLATE.OIL SEPARATOR

45

11522-49201

PLATE.OIL SEPARATOR

46

02112-06087

Винт крестовый 6x8

82 ₽/шт

47

34870-31301
