Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GS 500 SUZUKI GS500E Y SUZUKI (VIN: JS1GM51B) 5 - CRANKCASE COVER

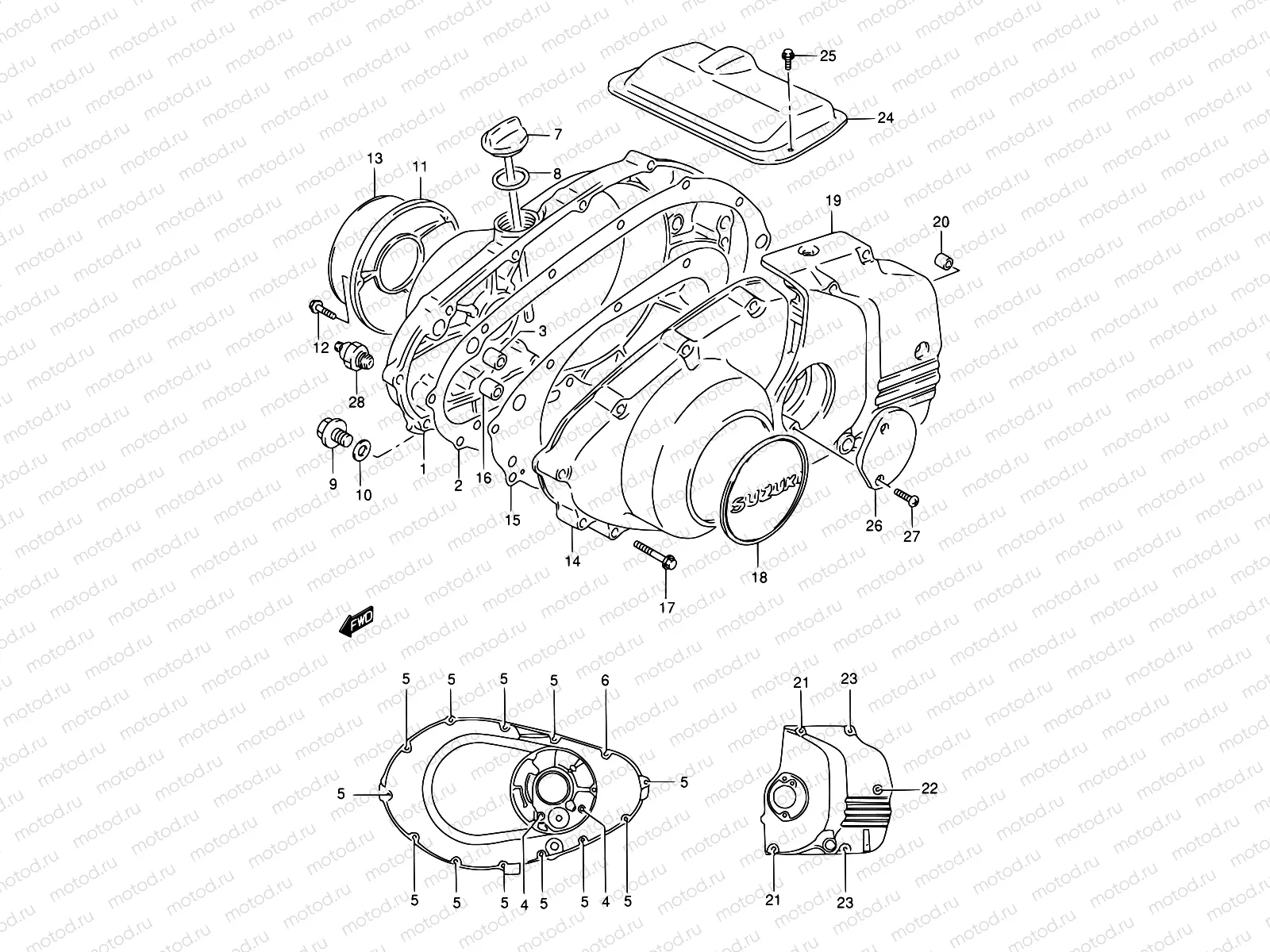

5 - CRANKCASE COVER

5 - CRANKCASE COVER
Например: 11341-01D10
1
11341-01D10
Крышка корзины сцепления
13 294 ₽/шт
2
11482-44110
GASKET,CLUTCH COVER
2 899 ₽/шт
3
04211-13189
ШТИФТ
129 ₽/шт
4
01547-06557
БОЛТ
97 ₽/шт
5
01547-06357
Болт
1 250 ₽/шт
6
01547-06257
БОЛТ
102 ₽/шт
7
11970-44110
Gauge,oil level
8
09280-26006
Кольцо уплотнительное
194 ₽/шт
9
09247-14026
Пробка редуктора сливная
289 ₽/шт
10
09168-14004
Прокладка
129 ₽/шт
11
11381-01D10
COVER,CONTACT BREAKER
7 165 ₽/шт
12
01547-05167
Болт
900 ₽/шт
13
68233-01D00
EMBLEM,CONTACT BREAKER COVER
1 595 ₽/шт
14
11351-01D10
Крышка генератора
12 668 ₽/шт
15
11483-44110
Прокладка зажигания
1 428 ₽/шт
16
04211-13189
ШТИФТ
129 ₽/шт
17
01547-06357
Болт
1 250 ₽/шт
18
68233-01D00
EMBLEM,CONTACT BREAKER COVER
1 595 ₽/шт
19
11361-01D10
COVER,ENGINE SPROCKET
9 306 ₽/шт
20
04211-09129
Стопор
102 ₽/шт
21
01547-0665B
Болт
1 920 ₽/шт
22
01547-06507
Болт крышки головки цилиндров №2
97 ₽/шт
23
01547-06407
Болт
1 410 ₽/шт
24
11382-01D00
COVER,STARTER MOTOR
1 806 ₽/шт
25
01547-0508B
Болт крышки
1 490 ₽/шт
26
11387-01D10
CAP,CLUTCH RELEASE ADJUST
2 072 ₽/шт
27
02122-05127
Болт
1 090 ₽/шт
28
37820-33D10
Датчик давления масла
4 764 ₽/шт
