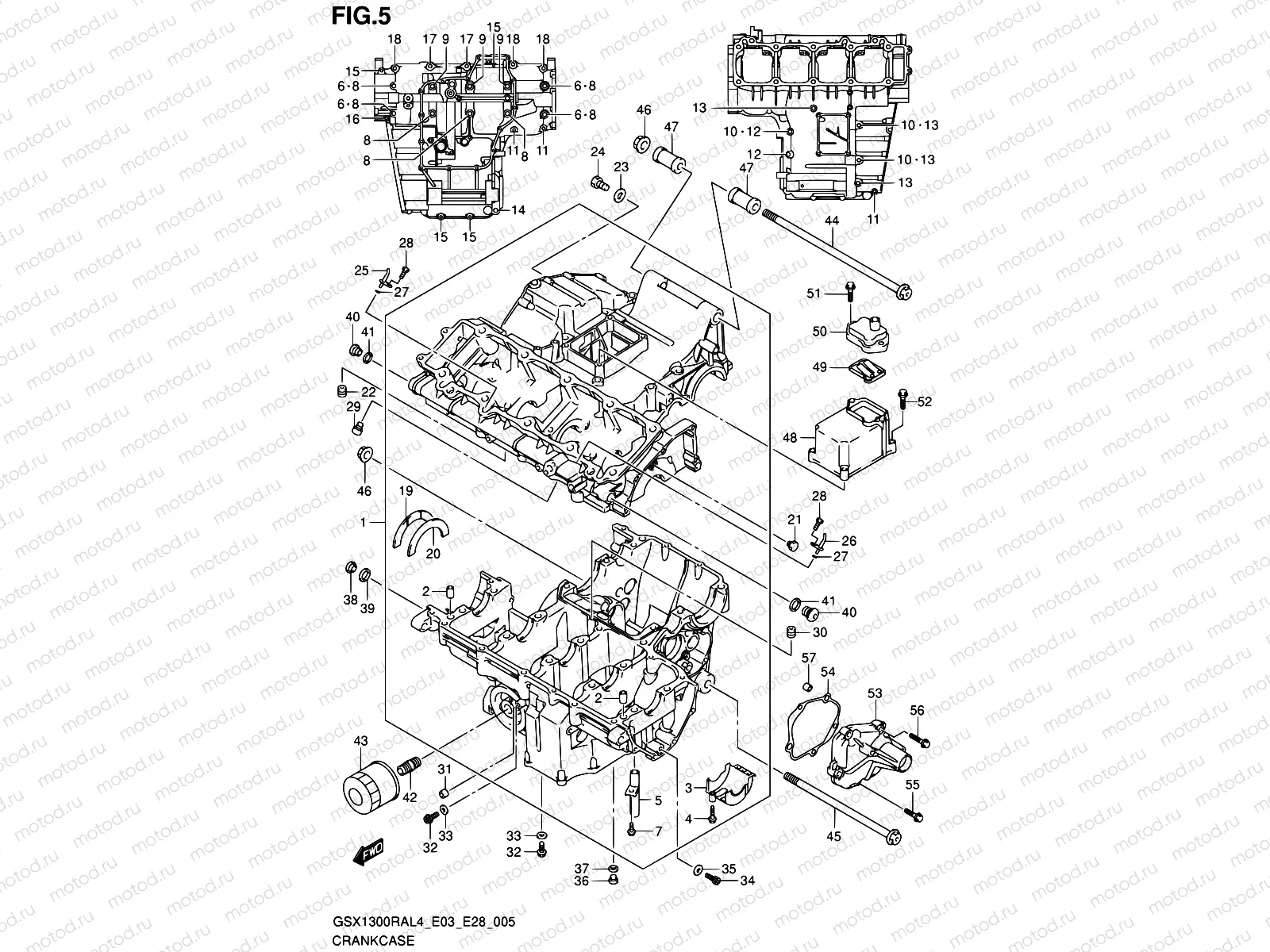

5 - CRANKCASE

5 - CRANKCASE

Например: 11302-24820

1

11302-24820

Картер

240 134 ₽/шт

2

11319-33E50

PIN,CRANKCASE

289 ₽/шт

3

11323-24F10

SEPARATOR,OIL

2 463 ₽/шт

4

01547-0625B

БОЛТ

97 ₽/шт

5

11328-24F00

UNION,BREATHER

934 ₽/шт

6

09168-10031

Прокладка

129 ₽/шт

7

01547-0612A

БОЛТ

81 ₽/шт

8

09103-09008

Болт 9X95

4 460 ₽/шт

9

09103-09010

BOLT(9X115)

4 930 ₽/шт

10

09168-08016

Прокладка

129 ₽/шт

11

01547-0650A

Болт

1 410 ₽/шт

12

01550-0865A

БОЛТ

153 ₽/шт

13

01550-0880A

БОЛТ

187 ₽/шт

14

01550-1060A

Болт

170 ₽/шт

15

01547-0640A

БОЛТ

97 ₽/шт

16

01547-0660B

Болт

1 920 ₽/шт

17

09103-08155

BOLT(8X60)

2 270 ₽/шт

18

09103-08355

BOLT(8X50)

2 030 ₽/шт

19

12228-24F00-0D0

BEARING, CRANK THRUST, L

510 ₽/шт

20

12228-24F00-0A0

BEARING,CRANK THRUST,L

669 ₽/шт

20

12228-24F00-0B0

EARING, CRANK THRUST, L

669 ₽/шт

20

12228-24F00-0C0

ВКЛАДЫШ КОРЕННОЙ

669 ₽/шт

20

12228-24F00-0D0

BEARING, CRANK THRUST, L

510 ₽/шт

20

12228-24F00-0E0

BEARING,CRANK THRUST,L

669 ₽/шт

20

12228-24F00-0F0

BEARING,CRANK THRUST,L

669 ₽/шт

21

11393-33E01

JET,MAGNETO COOLING

1 118 ₽/шт

22

09493-20012

Жиклер масляный

974 ₽/шт

23

09168-06023

ПРОКЛАДКА

162 ₽/шт

24

07120-0612B

БОЛТ

184 ₽/шт

25

11390-34E00

JET,PISTON COOLING

1 079 ₽/шт

26

11390-34E10

JET,PISTON COOLING

1 079 ₽/шт

27

09280-04004

O RING(D:1.2,ID:4.0)

194 ₽/шт

28

09106-06075

БОЛТ

1 450 ₽/шт

29

09106-06076

BOLT(6X10)

1 920 ₽/шт

30

09493-36006

JET,AIR(180)

931 ₽/шт

31

11532-46E00

JET,OIL PAN GALLERY

575 ₽/шт

32

07120-0612B

БОЛТ

184 ₽/шт

33

09168-06023

ПРОКЛАДКА

162 ₽/шт

34

07130-0816B

БОЛТ

2 030 ₽/шт

35

09168-08016

Прокладка

129 ₽/шт

36

09248-10010

ШЛАНГ

211 ₽/шт

37

09168-10002

Прокладка

178 ₽/шт

38

09248-16012

ШЛАНГ

289 ₽/шт

39

09168-16002

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

170 ₽/шт

40

09248-14011

PLUG

226 ₽/шт

41

09168-14004

Прокладка

129 ₽/шт

42

16591-06B01

Болт соединяющий

595 ₽/шт

43

16510-07J00

ФИЛЬТР МАСЛЯНЫЙ

1 777 ₽/шт

44

09103-12120

BOLT(12X320)

16 030 ₽/шт

45

09103-12119

BOLT(12X243)

14 980 ₽/шт

46

09159-12054

Гайка

840 ₽/шт

47

11611-24F00

SPACER,ENG MTG(L47)

1 384 ₽/шт

48

11331-15H00

COVER,BREATHER

7 859 ₽/шт

49

13150-01H01

VALVE ASSY,BREATHER REED

3 675 ₽/шт

50

11372-21H00

COVER,BREATHER REED VALVE

1 021 ₽/шт

51

01547-0620A

Болт

81 ₽/шт

52

01547-0630A

БОЛТ

97 ₽/шт

53

11383-15H00

КРЫШКА

7 735 ₽/шт

54

11485-24F00

Прокладка

318 ₽/шт

55

01547-0625B

БОЛТ

97 ₽/шт

56

01547-0635A

БОЛТ

97 ₽/шт

57

04211-09149

ШТИФТ

97 ₽/шт
