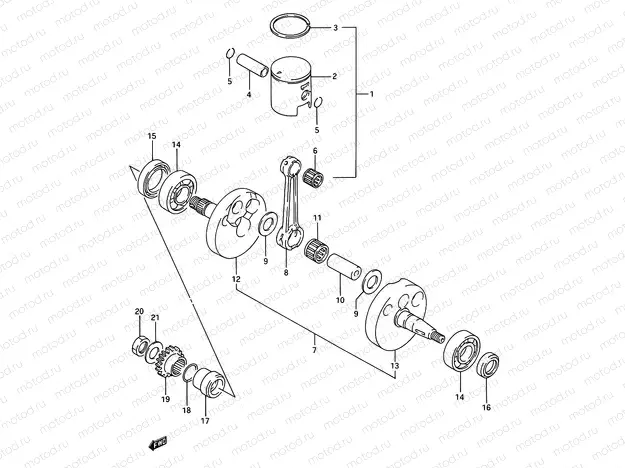

4B - CRANKSHAFT (MODEL K)

4B - CRANKSHAFT (MODEL K)
Например: 12102-02811
1
12102-02811
Piston (STD)
1
12102-02810-050
Piston kit (os:0.5)
1
12102-02810-100
Piston kit (os:1.0)
2
12141-02B70
Кольцо поршневое
2 717 ₽/шт
2
12110-02B43-0F0
PISTON(47.50MM)
67 320 ₽/шт
2
12110-02B42-050
Piston (os:0.5)
2
12110-02B42-100
Piston (os:1.0)
3
12141-02B70
Кольцо поршневое
2 717 ₽/шт
3
12141-02B50-050
Ring, piston (os:0.5)
3
12141-02B50-100
Ring, piston (os:1.0)
4
12151-20910
Палец поршня
833 ₽/шт
5
09381-14001
КОЛЬЦО СТОПОРНОЕ
113 ₽/шт
6
09263-14016
ПОДШИПНИК
1 024 ₽/шт
7
12200-02B40
Vilebrequin
8
12161-02B10
Connecting rod
9
09160-18023
.washer
10
12211-02B42
Pin,crank
11
09263-18026-0C0
Bearing
12
12221-02B40
.crankshaft, rh
13
12261-02B40
.crankshaft, lh
14
09262-20082
ПОДШИПНИК
1 535 ₽/шт
15
09283-30076
Seal,oil(30X40X7)
918 ₽/шт
16
09283-18006
SEAL,OIL(18X30X6)
1 697 ₽/шт
17
12359-27C30
SPACER,PRIMARY DRIVE GEAR
1 024 ₽/шт
18
09280-20004
Кольцо крыльчатки
97 ₽/шт
19
21111-02B41
"""GEAR,PRIMARY DRIVE(NT:18"
3 265 ₽/шт
20
09140-16019
NUT
2 270 ₽/шт
21
09164-16002
Шайба
1 880 ₽/шт
