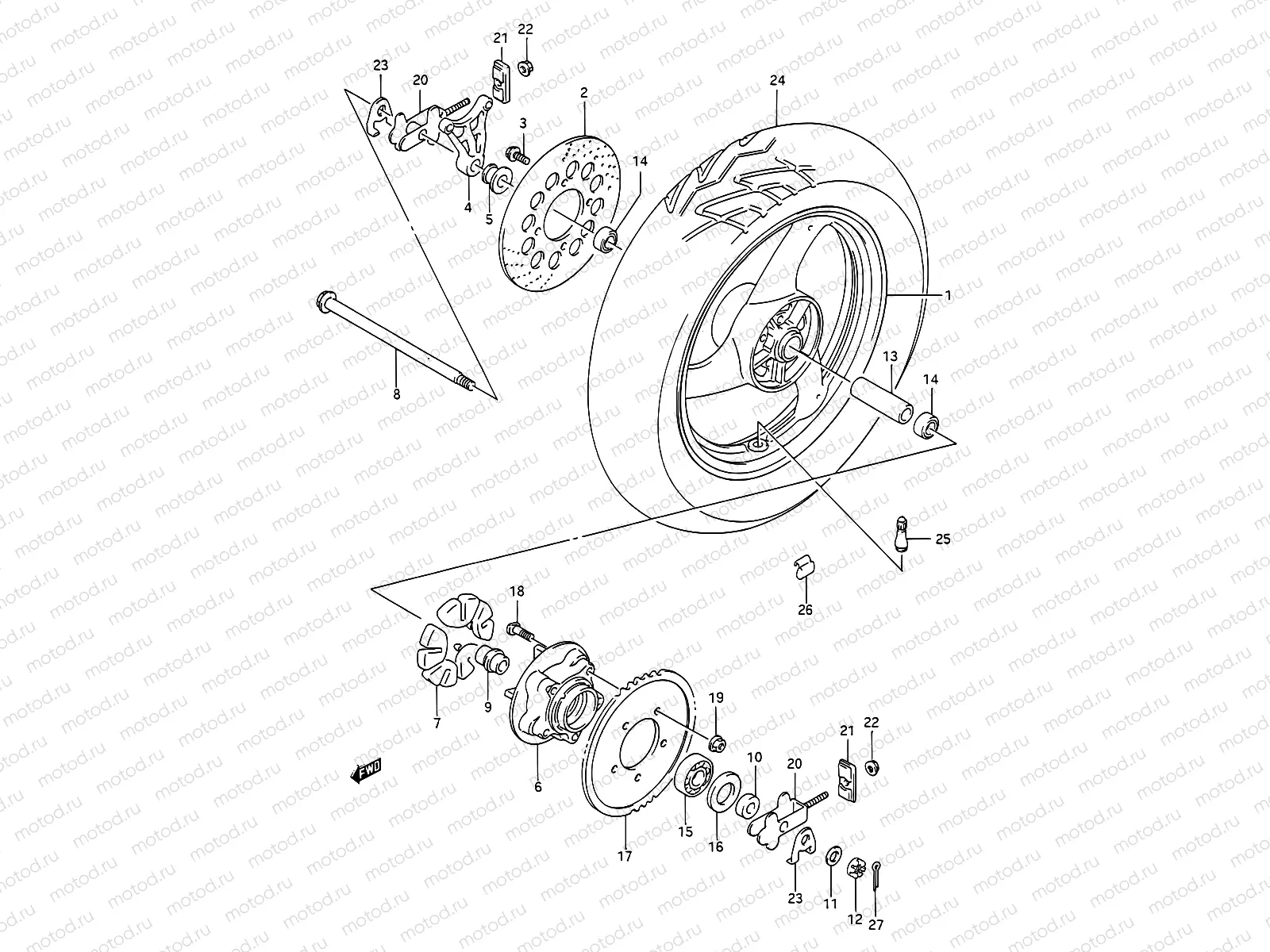

49 - REAR WHEEL

49 - REAR WHEEL
Например: 64111-34C00-28W
1
64111-34C00-28W
asting wheel,r
2
69211-01D00
ISC,RR BRAKE
29 130 ₽/шт
3
07120-0830A
Болт
153 ₽/шт
4
69721-43400
BRACKET,RR,CALIPER
3 734 ₽/шт
5
64740-19C00
SPACER,RR AXLE,R
1 267 ₽/шт
6
64611-01D00
RUM,RR SPROCKET
10 518 ₽/шт
7
64651-27A01
BSORBER,RR HUB SHOCK
954 ₽/шт
8
64711-01D0V
Axle,rr
9
64733-01D00
RETAINER,RR SPROCKET DRUM
1 396 ₽/шт
10
64751-19C00
SPACER,RR AXLE,L
852 ₽/шт
11
09160-17047
Шайба
2 700 ₽/шт
12
08314-4016B
Гайка
2 620 ₽/шт
13
09180-17067
SPACER(17.5X25X88)
1 207 ₽/шт
14
08143-63037
Подшипник
1 308 ₽/шт
15
09262-25073
ПОДШИПНИК КАЧЕНИЯ
1 550 ₽/шт
16
09285-35001
Сальник (35X62X8)
825 ₽/шт
17
64511-C01D0-4
Sprocket,rear
18
09119-10059
Болт
179 ₽/шт
19
08319-31107
Гайка
210 ₽/шт
20
61410-01D00
ADJUSTER,CHAIN
1 935 ₽/шт
21
61421-01D00
PLATE,CHAIN ADJUSTER GUIDE
579 ₽/шт
22
08319-31087
Гайка
178 ₽/шт
23
64712-19C01
WASHER,CHAIN ADJUSTER
442 ₽/шт
24
65110-01D00
Tire, t/l rear (130/70-17 62h)
25
43130-78030-000
VALVE,TIRE TR413 BS
1 324 ₽/шт
25
43130-24A00
Ниппель
468 ₽/шт
26
55411-17G00
BALANCER,WHEEL(10G)
272 ₽/шт
26
55412-17G00
BALANCER,WHEEL(20G)
272 ₽/шт
26
55412-45100
Balancer,wheel
27
04111-4030A
Шпонка
85 ₽/шт
