Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI TS 125 SUZUKI TS125R M SUZUKI (VIN: SF15A) 49 - REAR WHEEL

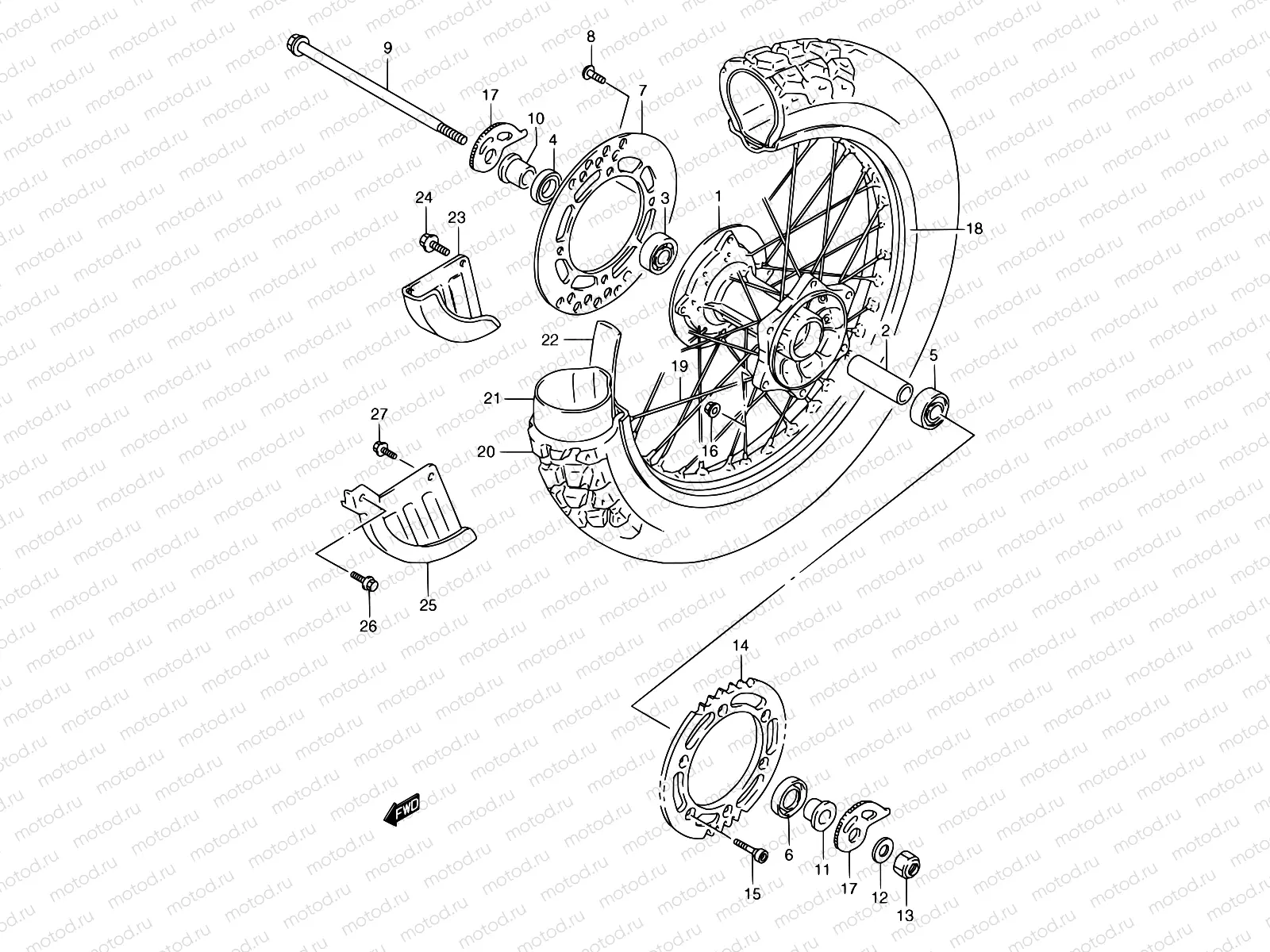

49 - REAR WHEEL

49 - REAR WHEEL

Например: 64111-03D00

1

64111-03D00

HUB,RR WHEEL

84 150 ₽/шт

2

09180-17095

SPACER,17.3X24X112

3

08133-6203B

earing

1 394 ₽/шт

4

09282-26001

SEAL,OIL(26X42X8)

1 190 ₽/шт

5

08123-6303B

earing,rear Hub

1 405 ₽/шт

6

09283-26019

SEAL,OIL(26X47X5)

694 ₽/шт

7

69211-03D01

ISC,RR BRAKE

20 528 ₽/шт

8

09106-08128

Болт

2 070 ₽/шт

9

64711-03D00

Axle, rear

10

64741-03D00

Entretoise

11

64751-03D00

Spacer, lh

12

09160-17047

Шайба

2 700 ₽/шт

13

08319-2116A

Гайка

4 500 ₽/шт

14

64511-03D01

SPROCKET,RR(NT:50)

8 837 ₽/шт

14

64511-03D11

15

09120-08004

Болт

162 ₽/шт

16

08319-31087

Гайка

178 ₽/шт

17

61411-03D00

CHAIN ADJUSTER

18

65311-03D00

Rim, wheel (1.85x18)

19

65320-03D00

Spoke assy, wheel

20

65110-03D00

Tire, rear (4.10-18)

21

65200-44AA0

TUBE ASSY,INNER

4 896 ₽/шт

22

65261-33030

PROTECTOR,INNER TUBE

364 ₽/шт

23

69200-28C00

OVER SET,RR BRAKE DISC

1 955 ₽/шт

24

01550-06207

БОЛТ

85 ₽/шт

25

69200-28C00

OVER SET,RR BRAKE DISC

1 955 ₽/шт

26

09103-06286

BOLT(6X20)

1 210 ₽/шт

27

01550-06207

БОЛТ

85 ₽/шт

27

01550-0612B

БОЛТ

81 ₽/шт
