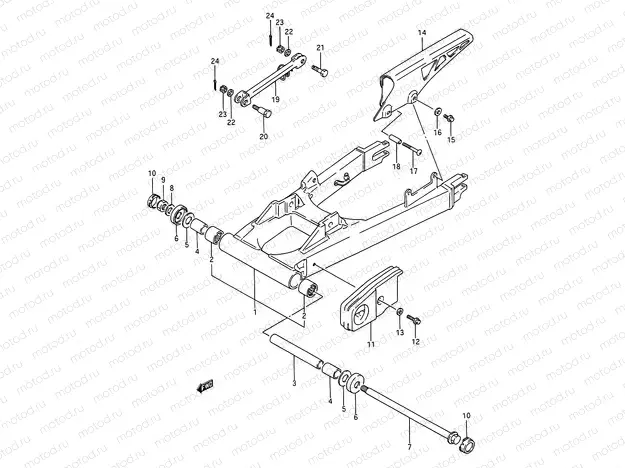

49 - REAR SWINGING ARM

49 - REAR SWINGING ARM
Например: 61000-48B10
1
61000-48B10
Swinging arm assy, rear
2
09263-25024
BEARING(25X33X30)
4 165 ₽/шт
3
61282-48B00
Spacer, center
4
61251-49000
SPACER,RR SWGARM PIVOT
2 072 ₽/шт
5
08211-16381
WASHER
1 410 ₽/шт
6
61262-49202
Cover,rr Swingingarm Pivot
1 207 ₽/шт
7
61211-48B11
Shaft, swinging arm pivot
8
09160-14015
WASHER(14X27X3)
2 660 ₽/шт
9
09159-14019
Гайка
7 080 ₽/шт
10
61222-48B00
CAP,RR SWINGING ARM PIVOT
379 ₽/шт
11
61273-48B12
Guard chain sliding shoe
12
01550-06207
БОЛТ
85 ₽/шт
13
09169-06040
Шайба
1 060 ₽/шт
14
61310-48B00
Case,chain
15
01550-0612B
БОЛТ
81 ₽/шт
16
09169-06026
Пластина замка
119 ₽/шт
17
02142-06557
Болт
1 520 ₽/шт
18
09180-06130
Entretoise
19
64310-48B10
Torque link, rear
20
09111-10022-XC0
Bolt(10x39)
21
09101-10039
Bolt, rear
22
08322-0110B
Шайба
85 ₽/шт
23
08314-4010B
ШАЙБА
114 ₽/шт
24
04111-2020A
Штифт
81 ₽/шт
