Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI SV 1000 SUZUKI SV1000S K3 SUZUKI (VIN: JS1BX132) 49 - FRONT DAMPER (MODEL K3/K4)

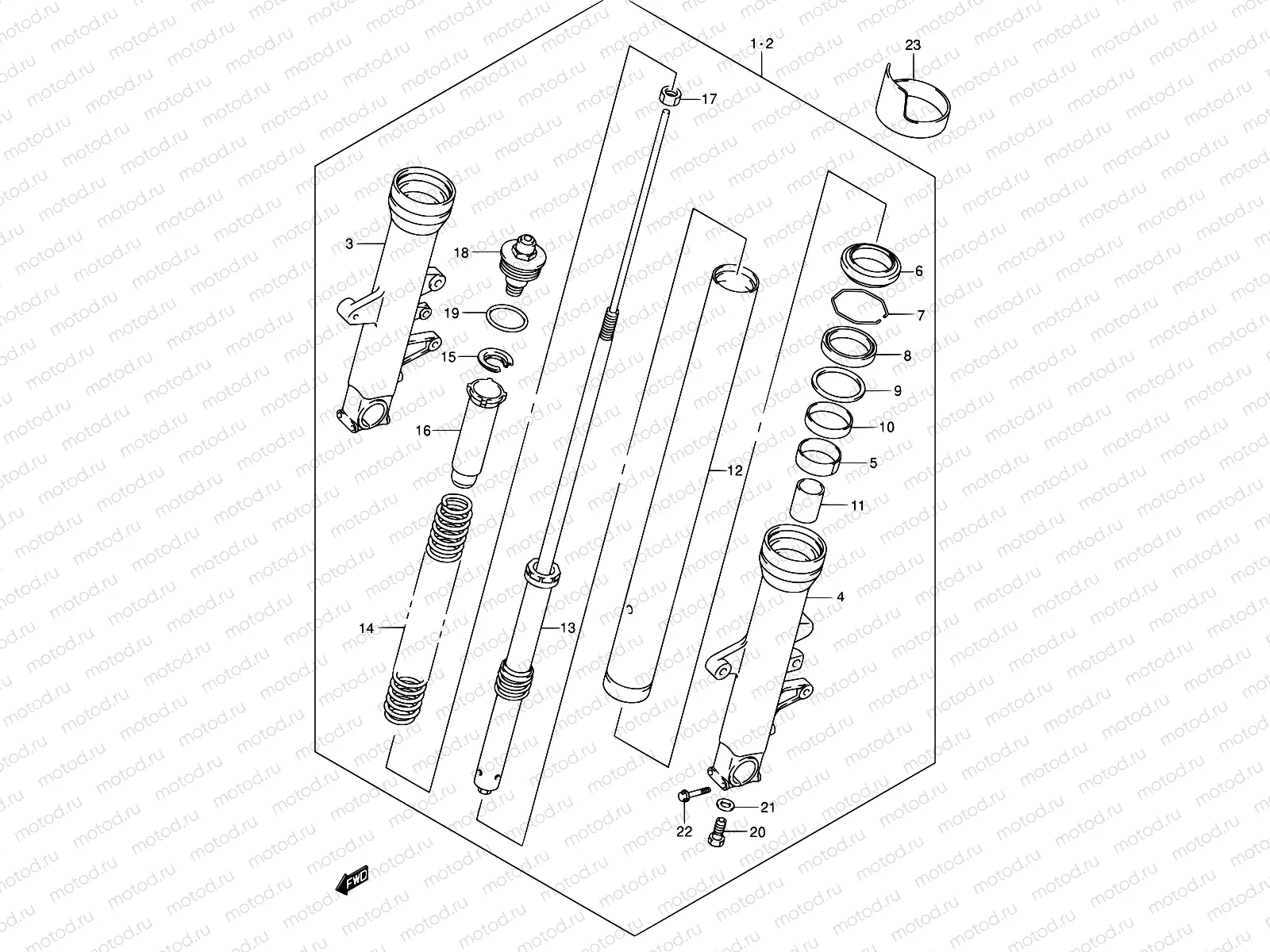

49 - FRONT DAMPER (MODEL K3/K4)

49 - FRONT DAMPER (MODEL K3/K4)

Например: 51103-16G20

1

51103-16G20

Damper assy,fro

1

51103-16G00

Damper assy,fro

1

51103-16G40

Damper assy,fro

2

51104-16G20

LH FR FORK DAMPER

2

51104-16G00

Damper assy,fro

2

51104-16G40

Damper assy,fro

3

51130-16G00

TUBE,OUTER,R

53 856 ₽/шт

4

51140-16G00

TUBE,OUTER,L

53 856 ₽/шт

5

51121-37F00

Скользящая втулка

1 777 ₽/шт

6

51173-42F00

Уплотнение

1 244 ₽/шт

7

51156-27C00

Кольцо

549 ₽/шт

8

51153-42F00

Сальник

3 230 ₽/шт

9

51158-27C00

Шайба

306 ₽/шт

10

51167-37F00

Направляющая втулка

1 534 ₽/шт

11

51195-16G20

PIECE,OIL LOCK

3 995 ₽/шт

12

51110-16G00

TUBE,INNER

44 880 ₽/шт

12

51110-16G10

TUBE,INNER

41 990 ₽/шт

13

51146-16G20

Cylinder

13

51146-16G00

Cylinder

13

51146-16G40

Cylinder

14

51171-16G20

Spring,front

14

51171-16G00

Spring front

14

51171-16G40

Spring,front

15

51172-16G00

Направляющая

606 ₽/шт

16

51176-16G00

Кольцо/шайба

1 806 ₽/шт

17

51129-24F00

Гайка

817 ₽/шт

18

51351-16G00

CAP,FORK

10 283 ₽/шт

18

51351-16G10

CAP,FORK

13 607 ₽/шт

19

51117-16G01

O Ring

383 ₽/шт

20

51147-16G00

Болт

1 207 ₽/шт

21

51148-41310

GASKET

170 ₽/шт

22

51328-40F30

Болт

606 ₽/шт

23

51201-16G00

PROTECTOR

823 ₽/шт
