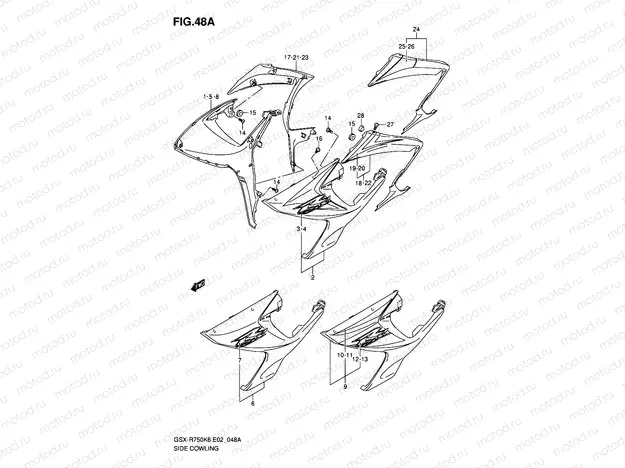

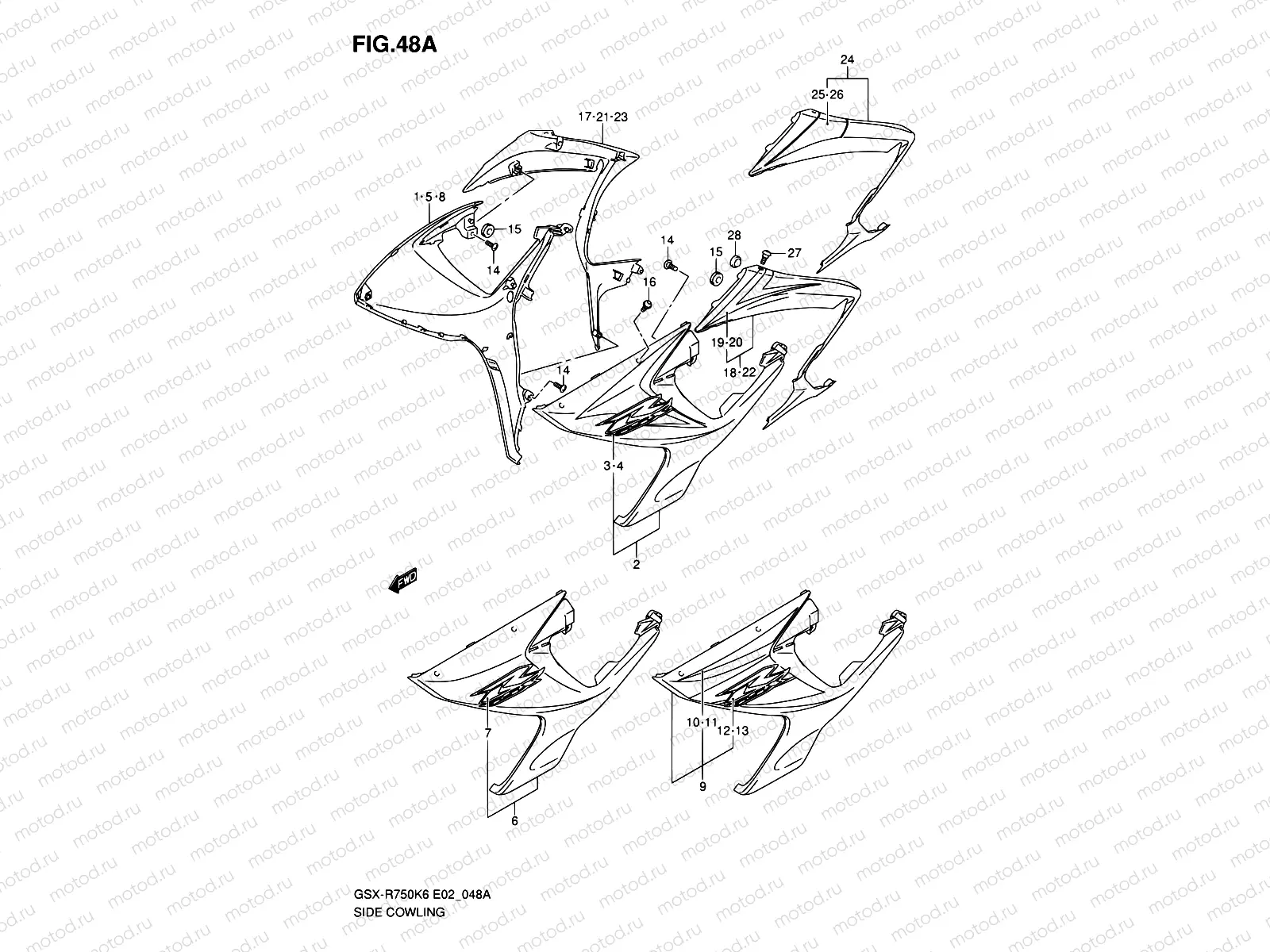

48A - SIDE COWLING (MODEL K7)

48A - SIDE COWLING (MODEL K7)

Например: 94490-02H20-YBA

1

94490-02H20-YBA

COWLING,SIDE,R(BLUE)

40 664 ₽/шт

1

94490-02H20-YHF

COWLING,SIDE,R(GRAY)

40 664 ₽/шт

2

94440-02H20-YBA

COWLING,SIDE,L(BLUE)

40 664 ₽/шт

2

94440-02H20-YHF

COWLING,SIDE,L(GRAY)

40 664 ₽/шт

3

68685-02H30-DZG

КРЕПЛЕНИЕ

8 133 ₽/шт

3

68685-02H30-DZH

КРЕПЛЕНИЕ

8 133 ₽/шт

4

68695-02H30-DZG

"""TAPE,COWL SIDE,L"""

9 149 ₽/шт

4

68695-02H30-DZH

"""TAPE,COWL SIDE,L"""

9 149 ₽/шт

5

94490-01H10-YKV

COWLING,SIDE,R(BLACK)

39 882 ₽/шт

6

94440-01H10-YKV

COWLING,SIDE,L(BLACK)

39 882 ₽/шт

7

68681-41G00-DCD

EMBLEM,GSXR

1 935 ₽/шт

8

94490-02H10-YKY

COWLING,SIDE,R(BLUE)

40 273 ₽/шт

9

94440-02H10-YKY

COWLING,SIDE,L(BLUE)

40 273 ₽/шт

10

68685-02H10-DZK

TAPE,COWL SIDE UPR,R

1 975 ₽/шт

11

68695-02H10-DZK

TAPE,COWL SIDE UPR,L

1 975 ₽/шт

12

68685-02H20-DZJ

TAPE,COWL SIDE,R

5 122 ₽/шт

13

68695-02H20-DZJ

Tape,cowl side,

14

03541-0516A

Болт

81 ₽/шт

15

09320-08514

Damper

16

09139-05064

Болт

162 ₽/шт

17

94450-02H20-019

COVER,UNDER COWL,R(BLACK)

23 265 ₽/шт

17

94450-02H20-YHG

COVER,UNDER COWL,R(GRAY)

23 265 ₽/шт

18

94460-02H20-019

COVER,UNDER COWL,L(BLACK)

21 505 ₽/шт

18

94460-02H20-YHG

COVER,UNDER COWL,L(GRAY)

21 505 ₽/шт

19

68185-02H20-DZL

КРЕПЛЕНИЕ

2 170 ₽/шт

19

68185-02H20-DZM

КРЕПЛЕНИЕ

2 170 ₽/шт

20

68195-02H20-DZL

Наклейка бокового обтекателя, левая

2 170 ₽/шт

20

68195-02H20-DZM

Наклейка бокового обтекателя, левая

2 170 ₽/шт

21

94475-01H00-019

COVER,UNDER COWL,R

19 355 ₽/шт

22

94485-01H00-019

COVER,UNDER COWL,L

19 355 ₽/шт

23

94450-02H10-YBD

COVER,UNDER COWL,R(WHITE)

22 678 ₽/шт

24

94460-02H10-YBD

COVER,UNDER COWL,L(WHITE)

20 919 ₽/шт

25

68185-02H10-LR5

КРЕПЛЕНИЕ

1 521 ₽/шт

26

68195-02H10-LR5

КРЕПЛЕНИЕ

1 521 ₽/шт

27

09139-05077

Болт

204 ₽/шт

28

09321-10018

САЙЛЕНТБЛОК

238 ₽/шт
