Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DR-Z 400 SUZUKI DR-Z400E K3 (E01) SUZUKI (VIN: JS1BF111) 48A - FRONT FORK BRACKET (DR-Z400EY/EK1/EK2/K3/EK3/EK4 E24)

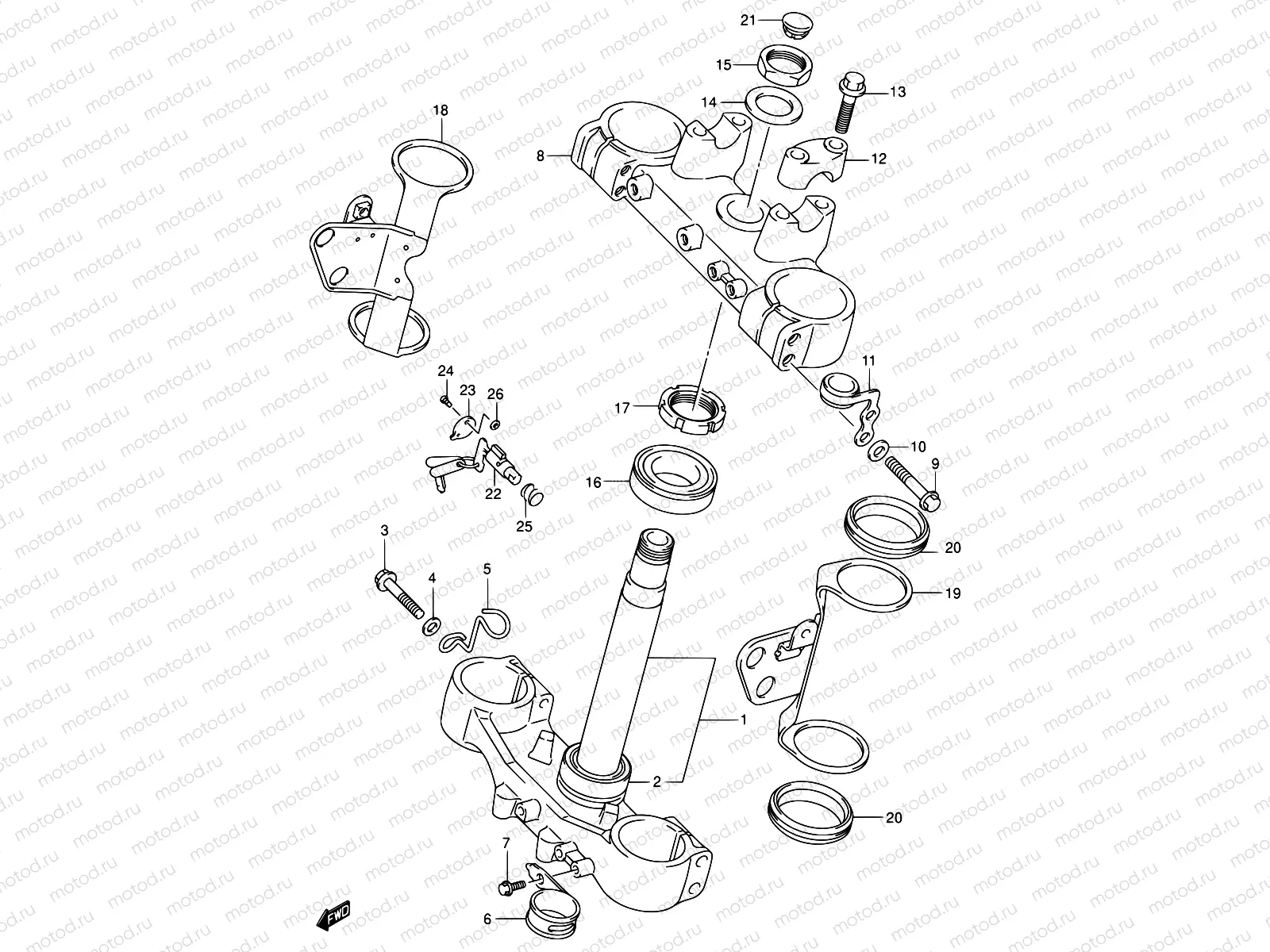

48A - FRONT FORK BRACKET (DR-Z400EY/EK1/EK2/K3/EK3/EK4 E24)

48A - FRONT FORK BRACKET (DR-Z400EY/EK1/EK2/K3/EK3/EK4 E24)

Например: 51410-29F10

1

51410-29F10

BRACKET,FR FORK UNDER

62 458 ₽/шт

2

09265-30035

Bearing

3 570 ₽/шт

3

51328-36E00

Болт

457 ₽/шт

4

51316-36E00

Шайба

227 ₽/шт

5

34938-29E01

Направляющая кабеля

594 ₽/шт

6

51453-29F20

GUIDE,CABLE

1 920 ₽/шт

7

58627-27C40

Болт

231 ₽/шт

8

51311-29F01

BRACKET,FR FORK UPR

26 197 ₽/шт

9

51328-29F20

Болт верхний

555 ₽/шт

10

51316-36E00

Шайба

227 ₽/шт

11

51288-29F20

Направляющая кабеля

1 920 ₽/шт

12

56211-29F00

HOLDER,HANDLEBAR UPR

1 580 ₽/шт

13

51321-27C40

Болт

309 ₽/шт

14

51356-29E00

Шайба

1 775 ₽/шт

15

51353-27C40

Гайка

1 244 ₽/шт

16

09265-30035

Bearing

3 570 ₽/шт

17

51631-28E00

NUT,STEERING

1 377 ₽/шт

18

51530-29F00

BRACKET,HEADLAMP HOUSING,R

7 275 ₽/шт

19

51540-29F00

BRACKET,HEADLAMP HOUSING,L

7 275 ₽/шт

20

51553-29F00

DAMPER,HEADLAMP HSG BRACKET

1 137 ₽/шт

21

09250-12016

Cap(Od:20)

162 ₽/шт

22

51900-13810

LOCK SET,STEERING

4 223 ₽/шт

23

51912-13E00

CAP,STEERING LOCK

274 ₽/шт

24

51913-13E00

PIN,STEERING LOCK

199 ₽/шт

25

51931-13E00

SPRING,STEERING LOCK

215 ₽/шт

26

09164-04001

Шайба

980 ₽/шт
