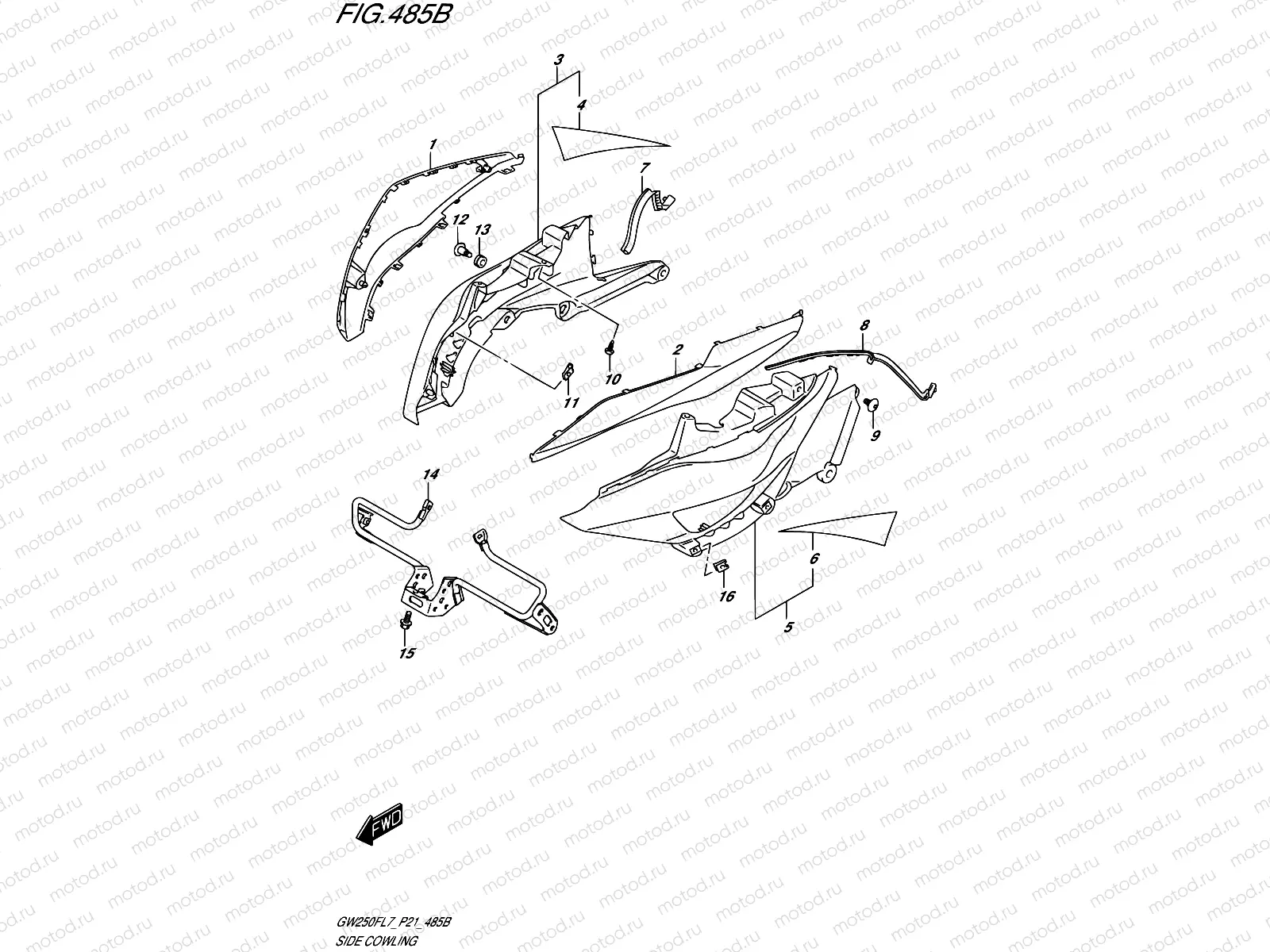

485B - SIDE COWLING (FOR AGQ)

485B - SIDE COWLING (FOR AGQ)
Например: 94431-48H00-YSF
1
94431-48H00-YSF
Cowling, side upper rh (blue)
1 шт. в узле
2
94441-48H00-YSF
Cowling, side upper lh (blue)
1 шт. в узле
3
94430-48H00-YWW
Cowling, side lower rh (white)
1 шт. в узле
4
68685-48H00-AGQ
.tape, side cowling rh (blue/white)
1 шт. в узле
5
94440-48H00-YWW
Cowling, side lower lh (white)
1 шт. в узле
6
68695-48H00-AGQ
.tape, side cowling lh (blue/white)
1 шт. в узле
7
94433-48HA0
Protector, side cowling rh
1 шт. в узле
8
94443-48HA0
Protector, side cowling lh
1 шт. в узле
9
09139-06152
Болт
3 520 ₽/шт
2 шт. в узле
10
03541-0516A
Болт
81 ₽/шт
6 шт. в узле
11
09148-05038
ГАЙКА
97 ₽/шт
4 шт. в узле
12
09139-06190
БОЛТ
194 ₽/шт
2 шт. в узле
13
09320-09016
РЕЗИНКА
162 ₽/шт
2 шт. в узле
14
94530-48H01
Bracket, side cowling
1 шт. в узле
15
01550-0616A
БОЛТ
81 ₽/шт
5 шт. в узле
16
35155-48H00
NUT,HEADLAMP
156 ₽/шт
4 шт. в узле
