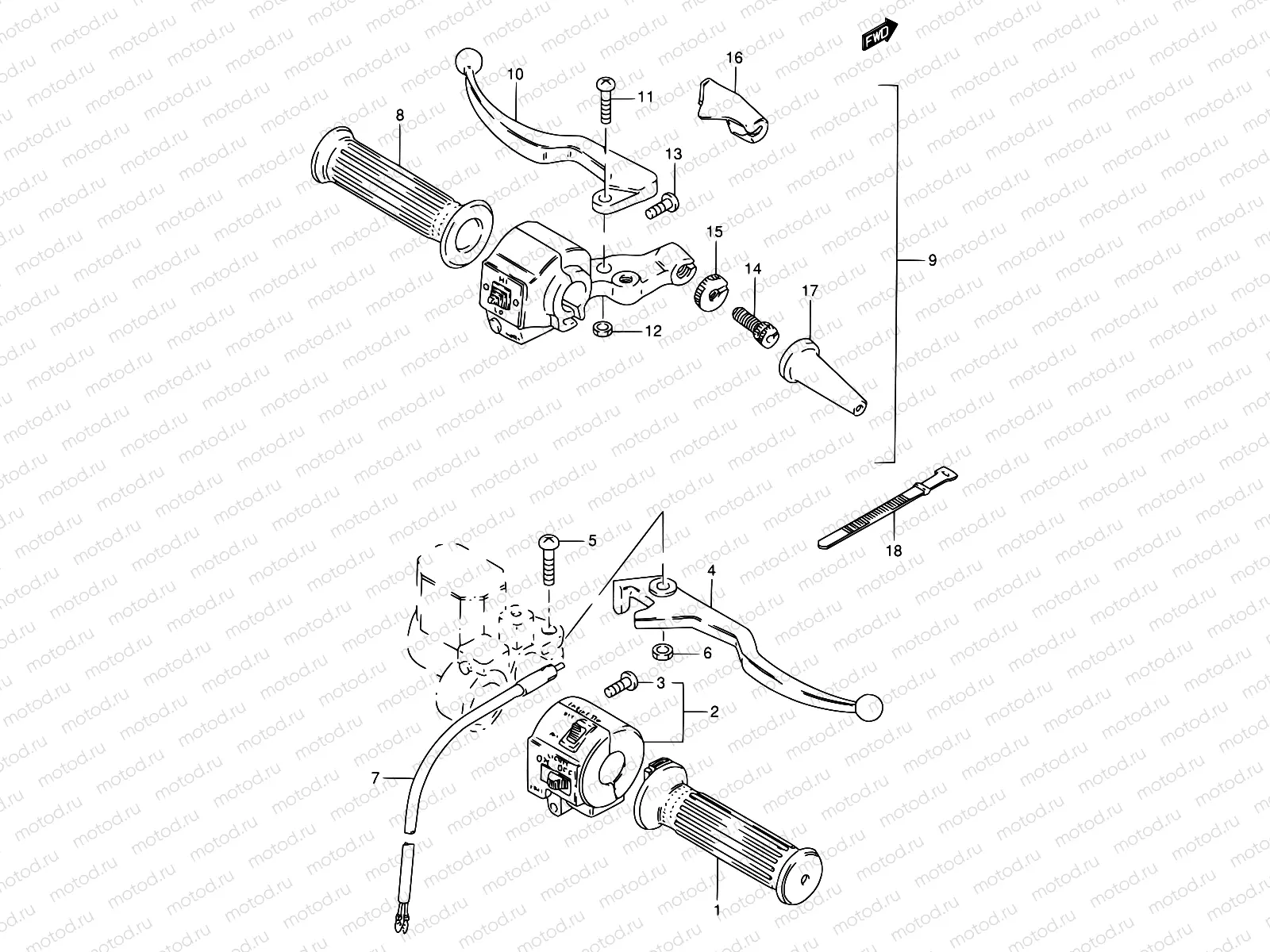

48 - HANDLE SWITCH (MODEL Z/D/K)

48 - HANDLE SWITCH (MODEL Z/D/K)

Например: 57110-13000

1

57110-13000

GRIP,THROTTLE

1 873 ₽/шт

2

37200-05302

SWITCH ASSY,HANDLE,R

10 674 ₽/шт

3

02112-75207

Болт

1 640 ₽/шт

4

57421-13001

LEVER BRAKE

1 583 ₽/шт

5

09139-06114

SCREW(6X28)

3 950 ₽/шт

6

08319-2106A

Гайка

114 ₽/шт

7

57460-13001

Переключатель

4 165 ₽/шт

8

57211-46111

Рукоятка

918 ₽/шт

9

57500-05312

LEVER/SWITCH ASSY,CL

10

57620-36500

Рукоятка муфты

6 885 ₽/шт

11

57431-13001

SCREW

395 ₽/шт

12

08319-21057

Гайка

97 ₽/шт

13

02112-75207

Болт

1 640 ₽/шт

14

57441-11010

Кабель регулирующий

323 ₽/шт

15

57442-11010

ГАЙКА РЕГУЛИРОВАНИЯ ТРОСА СЦЕПЛЕНИЯ, МЕТАЛЛ

206 ₽/шт

16

57661-31000

COVER CLUTCH REAR

442 ₽/шт

17

58273-31001

ПЫЛЬНИК ТРОСА СЦЕПЛЕНИЯ

187 ₽/шт

18

09407-12402

Струбцина

211 ₽/шт
