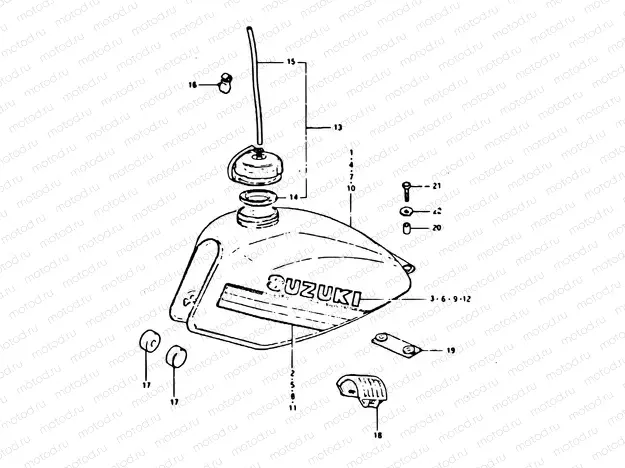

48 - FUEL TANK (DR400SX)

48 - FUEL TANK (DR400SX)

Например: 44110-37211-13L

1

44110-37211-13L

Fuel tank (Red)

2

68110-37210-67H

.tape set

3

68131-06C50-33J

.emblem (black)

4

44110-37211-13L

Fuel tank (Red)

5

68110-37210-74U

.tape set

6

68111-29310-064

Emblem (White)

7

44110-37211-13L

Fuel tank (Red)

8

68110-37210-74T

.tape set

9

68111-29310-064

Emblem (White)

10

44110-37211-13L

Fuel tank (Red)

11

68110-37210-67H

.tape set

12

68131-06C50-33J

.emblem (black)

13

44200-48831

Cap, fuel tank

14

44248-05211

Gasket

537 ₽/шт

15

09352-50005-600

ШЛАНГ

436 ₽/шт

16

44486-32101

Хомут

187 ₽/шт

17

09329-10016

САЙЛЕНТБЛОК

221 ₽/шт

18

44541-40602

Damper (Upper)

19

44541-37200

Damper (rear)

20

09180-06251

Кольцо/шайба

1 250 ₽/шт

21

09118-06086

Болт 6X25

1 680 ₽/шт

22

09160-06134

Шайба

102 ₽/шт
