Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI RF 600 SUZUKI RF600R V SUZUKI 47C - UNDER COWLING BODY (MODEL V)

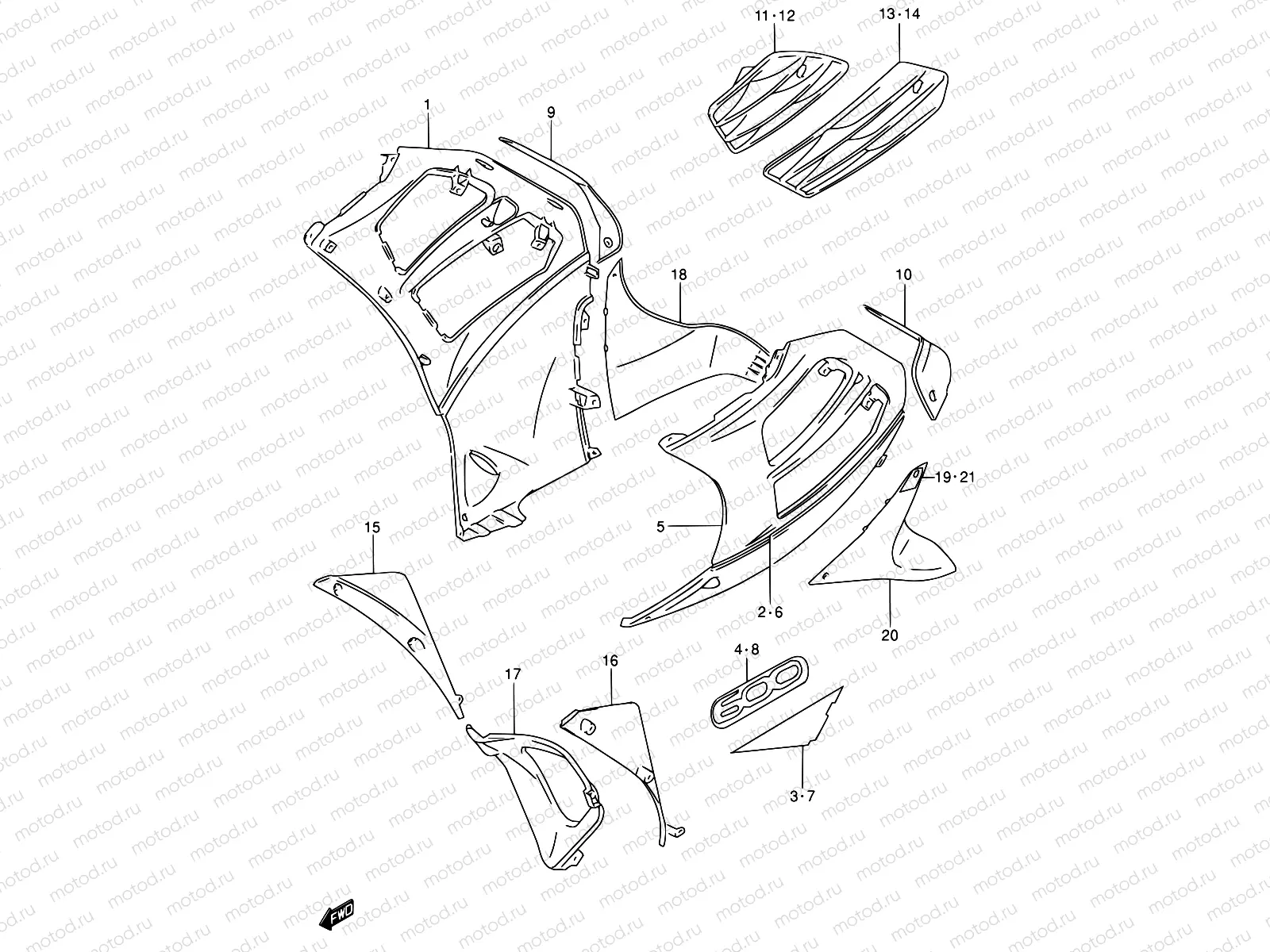

47C - UNDER COWLING BODY (MODEL V)

47C - UNDER COWLING BODY (MODEL V)

Например: 94407-21E70-Y0V

1

94407-21E70-Y0V

Cowling, under rh (green)

1

94407-21E70-28V

Cowling,under,r

2

68185-21E00-019

Tape,und.cwl,r

3

68185-21E10-019

Tape,cowling rh

4

68181-21E50-Y2M

mblem,cowling

5

94408-21E70-Y0V

Cowling,under,l

5

94408-21E70-28V

Cowling, under lh (red)

6

68195-21E00-019

Tape,und.cwl,l.

7

68195-21E10-019

Tape,cowling lh

8

68181-21E50-Y2M

mblem,cowling

9

94420-21E00

Panel,under ,r.

10

94426-21E00

Panel,under,l

11

94430-21E00-Y0V

Cover,under, r.

11

94430-21E00-28V

Cover,und.cwl.r

12

94440-21E00-Y0V

Cover,under, l.

12

94440-21E00-28V

Cover,und.cwl.l

13

94670-21E01-Y0V

Cover,cwl.lwr,r

13

94670-21E01-28V

Cover,cwl.lwr,r

14

94681-21E01-Y0V

Cover,cwl.lwr,l

14

94681-21E01-28V

Cover,und.cwl,l

15

94461-21E00-019

Cowling,inner,r

16

94462-21E00-019

COWLING,UNDER INNER,L

3 089 ₽/шт

17

94498-21E00-019

Cowling,under,c

18

94660-21E10-3DX

Cowling, rear rh (black)

18

94660-21E10-1PX

Cowling, rear rh (black)

19

68685-21E00-Y0V

.tape, under rh (green)

19

68685-21E00-28V

.tape, under rh (red)

20

94690-21E10-3DX

Cowling,und.rr.

20

94690-21E10-1PX

Cowling comp,un

21

68695-21E00-Y0V

.tape, under lh (green)

21

68695-21E00-28V

.tape, under lh (red)
