Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI SV 650 SUZUKI SV650 K2 SUZUKI (VIN: JS1AV133) 47B - SEAT TAIL COVER (MODEL K2)

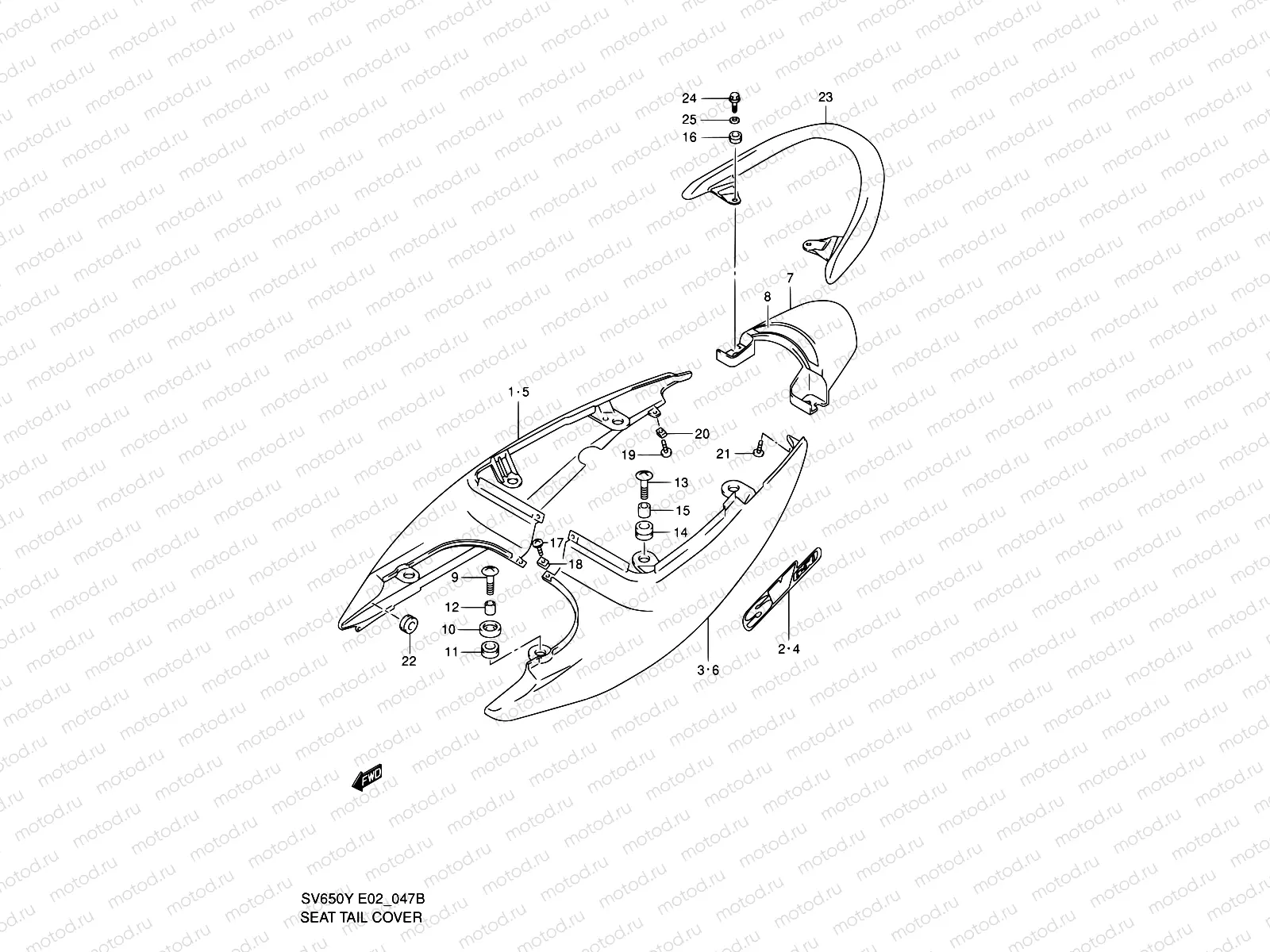

47B - SEAT TAIL COVER (MODEL K2)

47B - SEAT TAIL COVER (MODEL K2)

Например: 45501-20F20-YC2

1

45501-20F20-YC2

over,seat tail

1

45501-20F20-Y7L

COVER,SEAT TAIL,R

17 517 ₽/шт

1

45501-20F20-YD8

Cover,seat tail

1

45501-20F20-Y9H

Cover,seat tail

2

68161-20F00-GY3

EMBLEM,SEAT TAIL COVER

1 740 ₽/шт

2

68161-20F00-GY1

EMBLEM,SEAT TAIL COVER

1 740 ₽/шт

2

68161-20F00-GY4

EMBLEM,SEAT TAIL COVER

1 740 ₽/шт

2

68161-20F00-GY2

EMBLEM,SEAT TAIL COVER

1 740 ₽/шт

3

45502-20F20-YC2

OVER,SEAT TAIL,L

19 276 ₽/шт

3

45502-20F20-Y7L

Cover,seat tail

3

45502-20F20-YD8

Cover,seat tail

3

45502-20F20-Y9H

Cover,seat tail

4

68161-20F00-GY3

EMBLEM,SEAT TAIL COVER

1 740 ₽/шт

4

68161-20F00-GY1

EMBLEM,SEAT TAIL COVER

1 740 ₽/шт

4

68161-20F00-GY4

EMBLEM,SEAT TAIL COVER

1 740 ₽/шт

4

68161-20F00-GY2

EMBLEM,SEAT TAIL COVER

1 740 ₽/шт

7

45503-19F50-Y7L

Cover,tail ctr.

8

45514-19F00

TAPE,SEAT TAIL COVER CTR

1 666 ₽/шт

9

09136-06083

Винт 6X30

1 720 ₽/шт

10

47116-19F00

CUSHION,SEAT TAIL FR UPR

848 ₽/шт

11

47115-19F00

CUSHION,SEAT TAIL COVER FR

1 642 ₽/шт

12

09180-06294

Прокладка впрыска топлива

1 880 ₽/шт

13

09136-06105

Болт

129 ₽/шт

14

09320-10045

CUSHION

210 ₽/шт

15

09180-06286

Кольцо/шайба

162 ₽/шт

16

47115-05F00

CUSHION,SEAT TAIL COVER RR

383 ₽/шт

17

03241-1512B

Болт

82 ₽/шт

18

09148-05038

ГАЙКА

97 ₽/шт

19

03241-1512B

Болт

82 ₽/шт

20

09148-05038

ГАЙКА

97 ₽/шт

21

03241-0410A

Болт

85 ₽/шт

22

09320-08527

Cushion

1 640 ₽/шт

23

46210-19F50-291

Handle,pillion

24

01551-0825A

БОЛТ

119 ₽/шт

25

09160-08126

Шайба

1 250 ₽/шт
