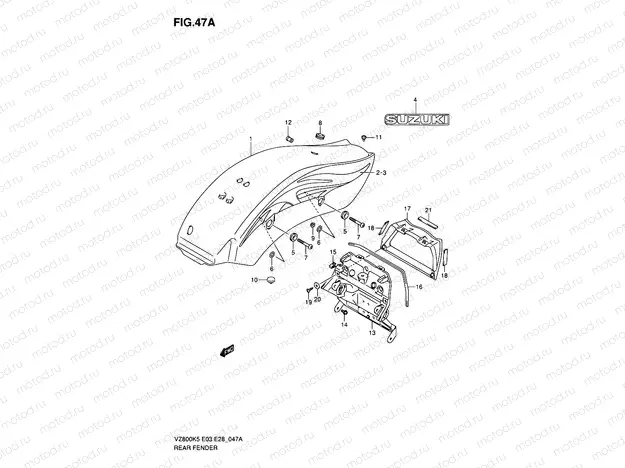

47A - REAR FENDER (VZ800ZK7)

47A - REAR FENDER (VZ800ZK7)

Например: 63110-39GA0-YHG

1

63110-39GA0-YHG

Fender, rear front (gray)

2

68175-39GA0-DLY

TAPE. RH

3

68176-39GA0-DLY

TAPE. LH

4

68271-34A01-YES

mblem,"suzuki"

578 ₽/шт

5

47191-24F00

CUSHION,FRAME COVER UPR RR

323 ₽/шт

6

09160-15002

WASHER(15.5X26X2.3)

113 ₽/шт

7

63161-41F00

BOLT,RR FENDER

459 ₽/шт

8

09320-15008

САЙЛЕНТБЛОК

2 310 ₽/шт

9

08316-1008B

Гайка

81 ₽/шт

10

63114-39G00

CUSHION,RR FENDER UPR NO.1

543 ₽/шт

11

09321-08026

Damper

12

63119-39G00

CUSHION,GRIP

1 556 ₽/шт

13

63112-39G02

FENDER,RR RR

5 122 ₽/шт

14

09111-06090

BOLT(6X16.5)

2 030 ₽/шт

15

09409-08326

КЛИПСА КАНСОЛИ ЦЕНТРАЛЬНОЙ, ПЛАСТИК

81 ₽/шт

16

63116-39G00

CUSHION,RR FENDER RR

395 ₽/шт

17

63113-39G00

COVER,RR FENDER RR

2 131 ₽/шт

18

63117-39G00

CUSHION,REAR FENDER REAR

170 ₽/шт

19

03541-0516B

Болт

81 ₽/шт

20

08322-0106A

Шайба

81 ₽/шт

21

63118-39G00

CUSHION,RR FENDER RR

325 ₽/шт
