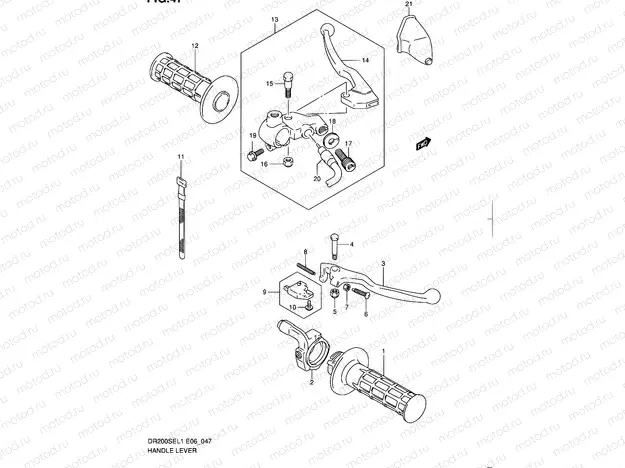

47 - HANDLE LEVER (DR200SEL1 E06)

47 - HANDLE LEVER (DR200SEL1 E06)
Например: 57110-14D00
1
57110-14D00
GRIP,THROTTLE
2 503 ₽/шт
2
57100-13610
CASE ASSY,THROTTLE
7 395 ₽/шт
3
57421-03D00
LEVER,BRAKE
2 210 ₽/шт
4
57431-14500
BOLT,BRAKE LEVER
395 ₽/шт
5
08319-2106A
Гайка
114 ₽/шт
6
57431-14511
BOLT,ADJUST
368 ₽/шт
7
08310-0005B
Гайка
1 370 ₽/шт
8
57318-14502
Пружина
170 ₽/шт
9
57460-14J02
Switch Assy,stop
3 366 ₽/шт
10
57465-17C00
Болт
170 ₽/шт
11
09407-12402
Струбцина
211 ₽/шт
12
57211-27C00
РУКОЯТКА
872 ₽/шт
13
57500-44AF0
LEVER CLUTCH DR125SE/V-
14
57621-44AF0
Рукоятка муфты
2 268 ₽/шт
15
57431-21D11
BOLT,LEVER PIVOT
544 ₽/шт
16
08319-2106B
Гайка
119 ₽/шт
17
57441-08C01
Adjuster,wire
735 ₽/шт
18
57442-44AF0
.nut, lock
19
01547-06207
Болт
85 ₽/шт
20
57560-44AF0
SWITCH ASSY,CLUTCH
1 329 ₽/шт
21
57341-29F02
Cover,clutch Cable Dust
468 ₽/шт
