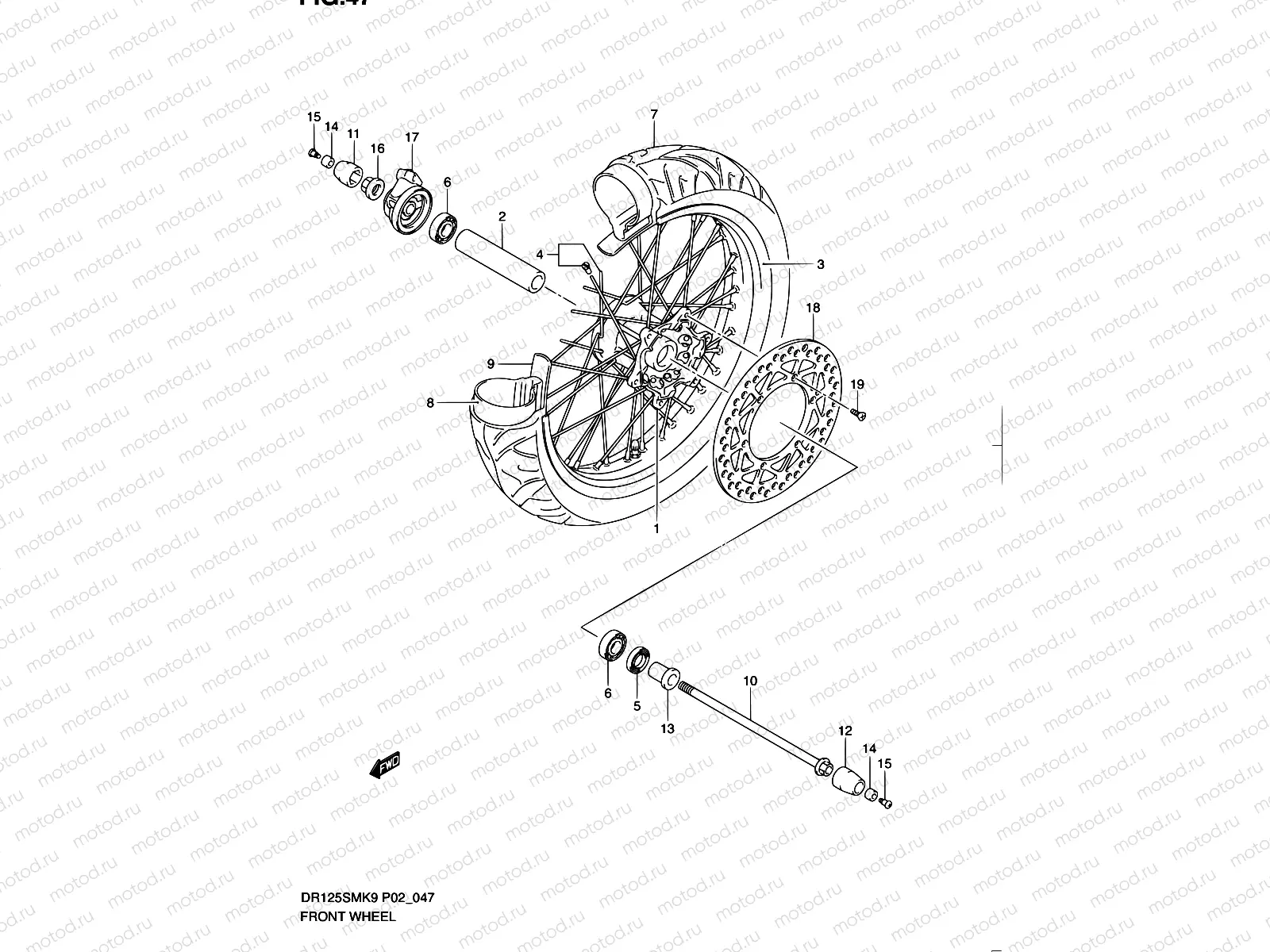

47 - FRONT WHEEL

47 - FRONT WHEEL

Например: 54111-24H00

1

54111-24H00

ub,front

2

54731-24H00

SPACER. FRONT HUB BEARING

3

55311-24H00

RIM,FR WHEEL(17X2.15 AL)

37 341 ₽/шт

4

55320-24H00

Комплект спиц, переднего колеса

5 943 ₽/шт

5

09285-18002

SEAL,OIL(18X32X7)

368 ₽/шт

6

08133-62017

BEARING

1 139 ₽/шт

7

55110-24H00

TIRE. FRONT

8

55200-24H00

TUBE ASSY. WHEEL INNER

9

55261-24H00

Protector,inner

1 177 ₽/шт

10

54711-24H00

Axle, front dr1

11

54713-24H00

Cap,front axle,

12

54714-24H00

Cap, front axle

13

54741-24H00

SPACER. FR AXLE LH

14

54762-24H00

SPACER. AXLE CAP

15

09139-05034

SCREW(5X11.5)

1 490 ₽/шт

16

08319-3112A

Гайка

211 ₽/шт

17

54600-24H00

BOX ASSY,SPEEDOMETER GEAR

10 166 ₽/шт

18

59221-24H00

Disque de frein

19

09120-06014

Болт

1 490 ₽/шт
