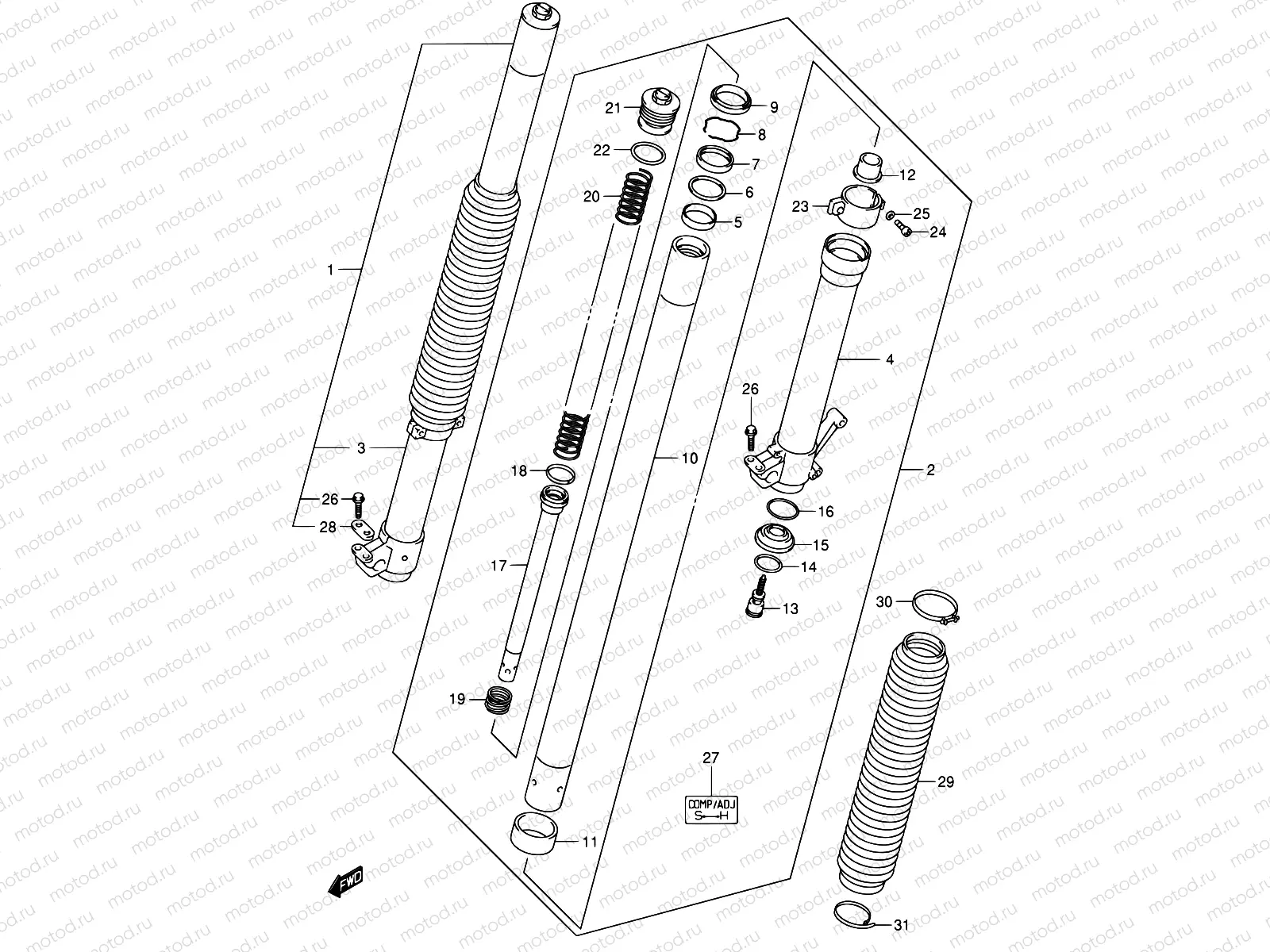

47 - FRONT FORK DAMPER (MODEL Y/K1)

47 - FRONT FORK DAMPER (MODEL Y/K1)
Например: 51103-29F20
1
51103-29F20
Damper assy,fro
2
51104-29F20
Damper assy,fro
3
51130-29F20
Tube,outer,rh
4
51140-29F20
Tube,outer,lh
5
51167-36E40
Направляющая втулка
2 033 ₽/шт
6
51158-36E00
SPACER,SEAL
485 ₽/шт
7
51153-36E00
Сальник
1 326 ₽/шт
8
51156-36E00
Кольцо стопорное
438 ₽/шт
9
51173-36E00
Уплотнение
1 666 ₽/шт
10
51110-29F20
Tube,inner
11
51121-36E40
Скользящая втулка
748 ₽/шт
12
51195-29F20
Piece,oil lock
13
51170-29F20
BOLT,CTR
9 345 ₽/шт
14
51183-29F20
Packing
15
51205-29F20
Plate,end
16
51117-27C40
Кольцо уплотнительное
328 ₽/шт
17
51190-29F20
Cylinder
18
51196-29F20
Кольцо поршневое
1 302 ₽/шт
19
51177-29F20
Spring,rebound
20
51171-29F20
Spring,front
21
51351-29F20
Bolt
22
51117-36E00
O RING
360 ₽/шт
23
51203-29F00
HOLDER,BOOT
2 522 ₽/шт
24
07130-05207
Болт
1 520 ₽/шт
25
09160-05044
Шайба
1 020 ₽/шт
26
51321-27C40
Болт
309 ₽/шт
27
51149-29E40
LABEL
309 ₽/шт
28
51516-29F00
COVER,AXLE HOLDER
403 ₽/шт
29
51571-29F01-019
Boot
5 517 ₽/шт
30
51575-29F00
BAND,BOOT UPR
1 095 ₽/шт
31
51576-29F00
BAND,BOOT LWR
997 ₽/шт
