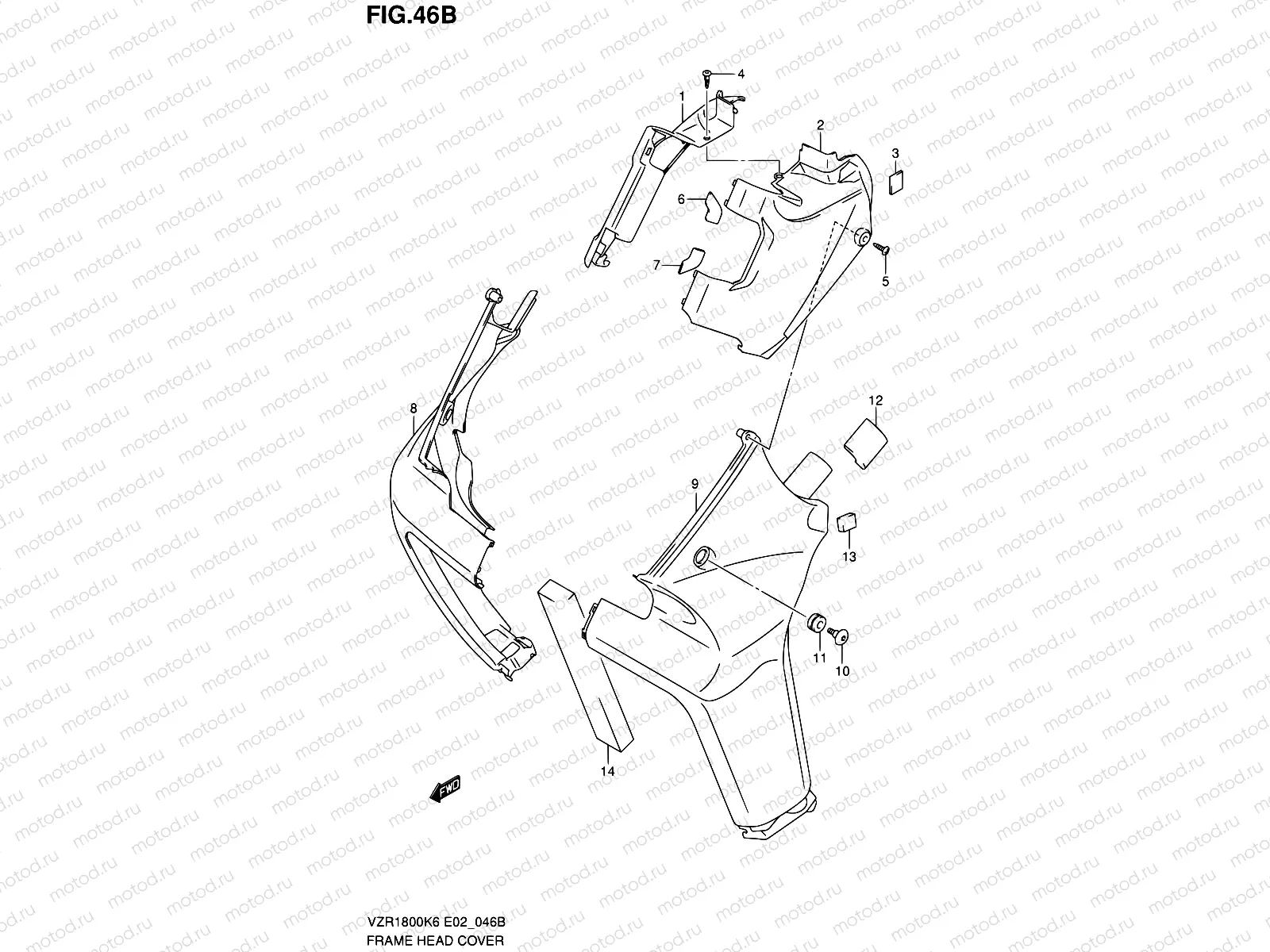

46B - FRAME HEAD COVER (VZR1800K8/U2K8/NK8/NU2K8)

46B - FRAME HEAD COVER (VZR1800K8/U2K8/NK8/NU2K8)

Например: 47350-48G00-YAY

1

47350-48G00-YAY

COVER,FRAME HEAD,R(BLACK)

33 626 ₽/шт

1

47350-48G00-YHG

COVER,FRAME HEAD,R(GRAY)

13 333 ₽/шт

2

47361-48G00-YAY

НАКЛАДКА

31 867 ₽/шт

2

47361-48G00

COVER,FRAME HEAD,L(NON PAINT)

31 651 ₽/шт

3

17798-39G00

ДЕТАЛЬ

204 ₽/шт

4

09409-06314-5PK

КЛИПСА КРЕПЁЖНАЯ, ПЛАСТИК

162 ₽/шт

5

03541-0516A

Болт

81 ₽/шт

6

47352-48G00

TAPE,HEAD COVER UPR

422 ₽/шт

7

47353-48G01

TAPE,HEAD COVER LWR

422 ₽/шт

8

47551-48G00-YAY

COVER,FRAME BODY UPR,R

21 114 ₽/шт

8

47551-48G00-YHG

COVER,FRAME BODY UPR,R

17 204 ₽/шт

9

47561-48G00-YAY

COVER,FRAME BODY UPR,L

21 114 ₽/шт

9

47561-48G00-YHG

COVER,FRAME BODY UPR,L

15 836 ₽/шт

10

09139-06126

БОЛТ МЕТАЛЛ (6х20)

194 ₽/шт

11

09320-09016

РЕЗИНКА

162 ₽/шт

12

63191-25C00

USHION

204 ₽/шт

13

17798-39G00

ДЕТАЛЬ

204 ₽/шт

14

47552-48G00

CUSHION,FRAME BODY COVER,R

1 028 ₽/шт
