Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1300 R Hayabusa SUZUKI GSX1300R K8 Hayabusa (E19) SUZUKI (VIN: JS1CK111) 46 - METER PANEL

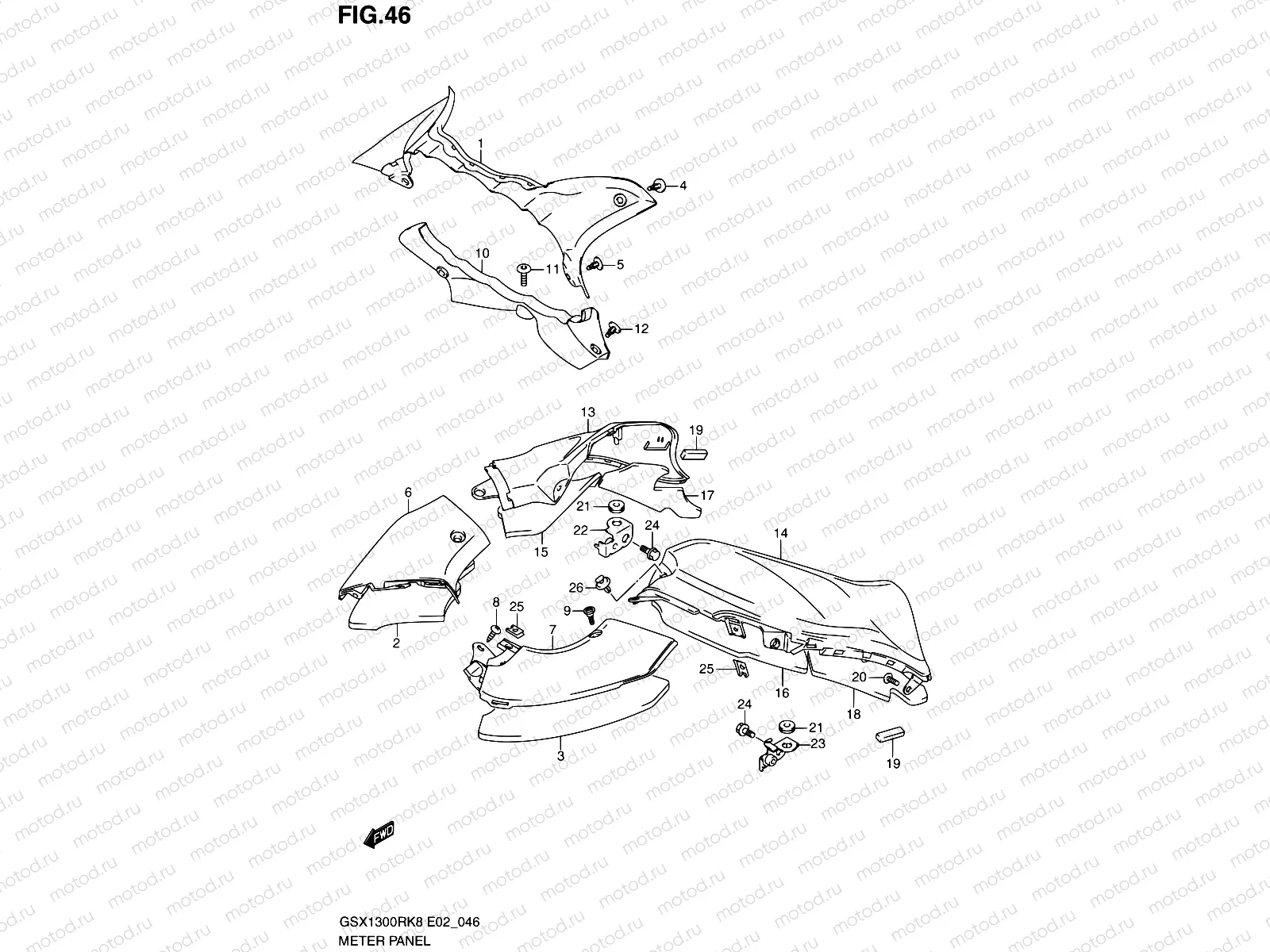

46 - METER PANEL

46 - METER PANEL

Например: 94424-15H00

1

94424-15H00

НАКЛАДКА

3 578 ₽/шт

2

94643-15H01

CUSHION,PANEL UPPER,R

1 581 ₽/шт

3

94644-15H01

CUSHION,PANEL UPPER,L

1 705 ₽/шт

4

09409-06314-5PK

КЛИПСА КРЕПЁЖНАЯ, ПЛАСТИК

162 ₽/шт

5

09409-07333

ХОМУТ МАЛЫЙ

129 ₽/шт

6

94641-15H00

PANEL,UPR,R

1 975 ₽/шт

7

94651-15H00

НАКЛАДКА КУЗОВА

1 975 ₽/шт

8

03241-1516B

Винт

1 450 ₽/шт

9

09139-05504

Винт

2 270 ₽/шт

10

94425-15H00

ПАНЕЛЬ КУЗОВА

3 578 ₽/шт

11

09139-05503

Болт

129 ₽/шт

12

09409-08327

КЛИПСА, ПЛАСТИК

204 ₽/шт

13

94621-15H00

PANEL,SIDE,R

4 760 ₽/шт

14

94631-15H00

PANEL,SIDE,L

5 007 ₽/шт

15

94622-15H01

CUSHION,SIDE PANEL FR,R

2 209 ₽/шт

16

94632-15H01

CUSHION,SIDE PANEL FR,L

2 125 ₽/шт

17

94623-15H01

CUSHION,SIDE PANEL RR,R

1 705 ₽/шт

18

94633-15H01

CUSHION,SIDE PANEL RR,L

1 581 ₽/шт

19

33652-02H00

CUSHION

543 ₽/шт

20

03541-0516B

Болт

81 ₽/шт

21

09320-08527

Cushion

1 640 ₽/шт

22

94520-24F00

BRACKET,PANEL,R

2 444 ₽/шт

23

94530-24F00

BRACKET,PANEL,L

3 265 ₽/шт

24

01550-0620B

БОЛТ

81 ₽/шт

25

94484-24F00

Гайка

178 ₽/шт

26

09409-07332

КЛИПСА КРЕПЛЕНИЯ ПОДКРЫЛКА ПЛАСТИК

136 ₽/шт
