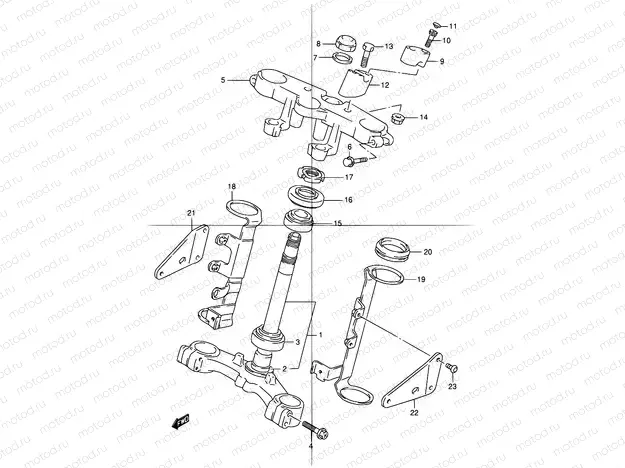

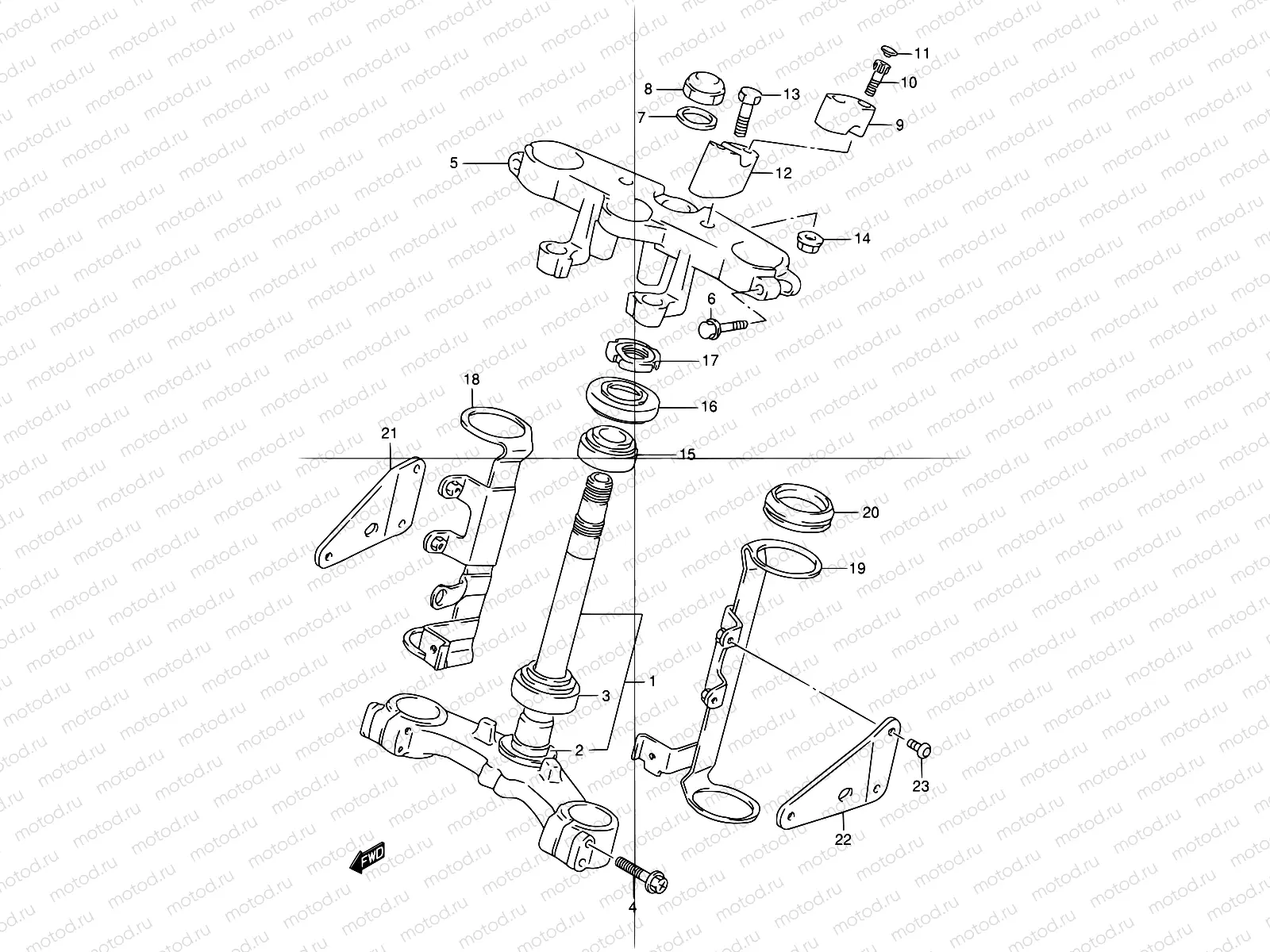

46 - FRONT FORK BRACKET

46 - FRONT FORK BRACKET
Например: 51410-03F00
1
51410-03F00
STEM,STEERING
46 750 ₽/шт
2
51644-12C00
САЛЬНИК
727 ₽/шт
3
09267-30010
ПОДШИПНИК РУЛЕВОГО МЕХАНИЗМА
2 503 ₽/шт
4
51328-03FK0
BOLT(8X40)
170 ₽/шт
5
51311-03FK0
Head,strng.stem
6
51328-03FK0
BOLT(8X40)
170 ₽/шт
7
51356-24B01
Шайба
655 ₽/шт
8
51353-24B00
ГАЙКА
1 785 ₽/шт
9
56211-25D30
Holder,handle,u
10
07130-08257
Болт
2 070 ₽/шт
11
09250-06011
КОЛПАЧОК БОЛТА КРЕПЛЕНИЯ
194 ₽/шт
12
56221-03FK0
Holder,handle,u
13
01500-1050A
Болт
1 840 ₽/шт
14
08319-31107
Гайка
210 ₽/шт
15
09267-25009
BEARING(25X47X15)
2 020 ₽/шт
16
51643-40503
Seal,dust
727 ₽/шт
17
51631-28000
NUT,STEERING STEM(25X44X10)
935 ₽/шт
18
51530-03F00
Bracket,headl,r
19
51540-03F00
Bracket,headl,l
20
51553-15D01
amper,head Lamp Hsg Brkt
459 ₽/шт
21
51851-23E01
STAY,HEADLAMP HOUSING,R
8 670 ₽/шт
22
51861-23E01
STAY,HEADLAMP HOUSING,L
8 670 ₽/шт
23
09139-06027
Винт (6х12)
194 ₽/шт
