Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSX 600 F SUZUKI GSX600F K2 SUZUKI (VIN: JS1AJ111, JS1AJ121) 46 - FRONT DAMPER (MODEL W/X/Y/K1/K2)

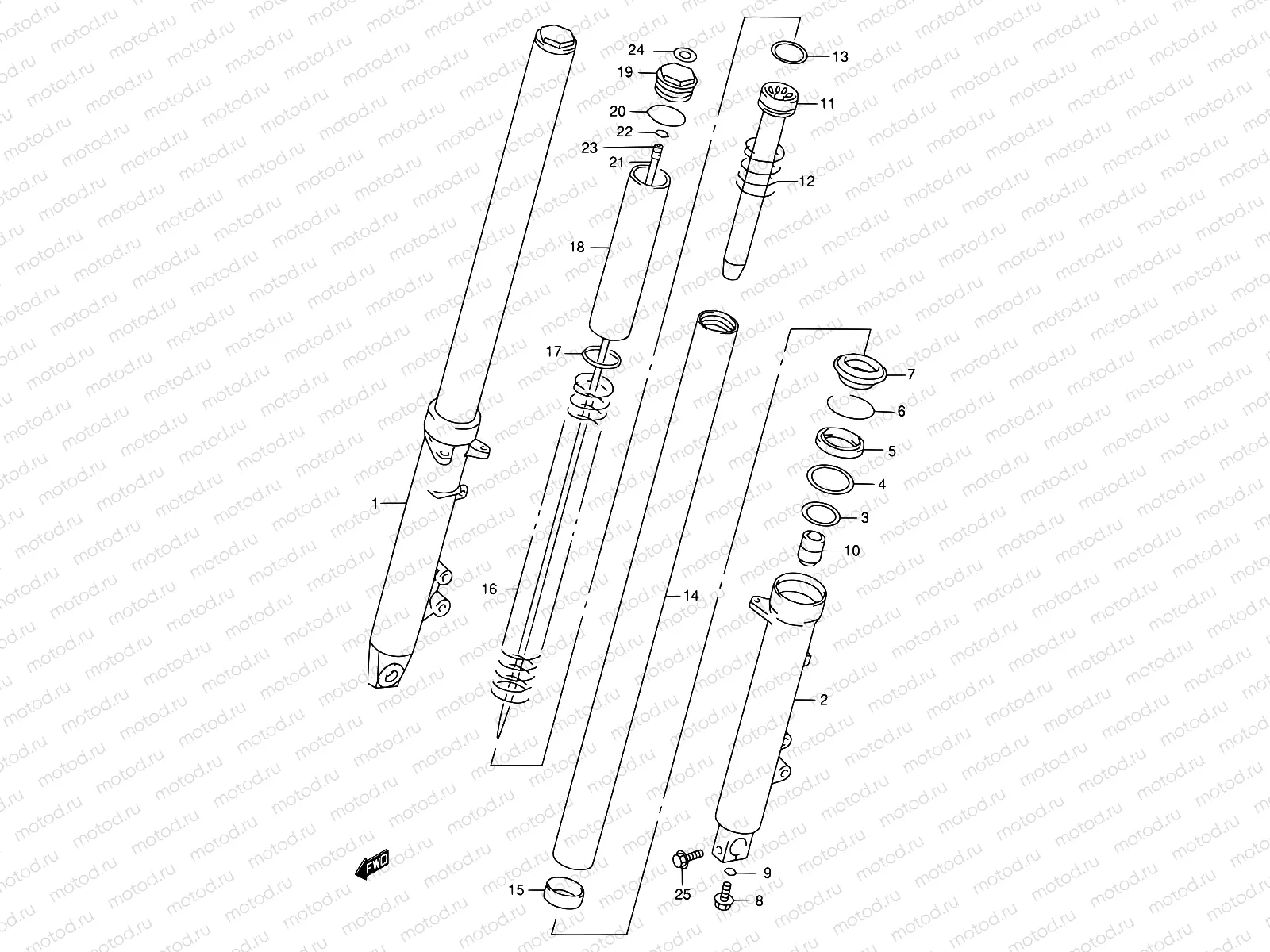

46 - FRONT DAMPER (MODEL W/X/Y/K1/K2)

46 - FRONT DAMPER (MODEL W/X/Y/K1/K2)

Например: 51103-08F00

0

51103-08F00

Damper,fr.fork

0

51104-08F00

Damper,fr.fork

1

51130-08F00

Tube,outer,r

2

51140-08F00

Tube,outer,l

3

51152-11D60

Направляющая втулка

1 197 ₽/шт

4

51168-38B00

SPACER,SEAL

459 ₽/шт

5

51153-08D00

Сальник

1 195 ₽/шт

6

51556-38B00

Кольцо

243 ₽/шт

7

51571-47D50

Уплотнение

804 ₽/шт

8

51147-48130

BOLT(8X27)

221 ₽/шт

9

51148-36011

GASKET

210 ₽/шт

10

51195-48B31

PIECE,OIL LOCK

1 173 ₽/шт

11

51194-08F30

UNDER SEAT

12

51177-48B31

Пружина

275 ₽/шт

13

51196-12C00

Кольцо поршневое

422 ₽/шт

14

51110-08F00

TUBE,INNER

25 806 ₽/шт

15

51121-48B31

Скользящая втулка

2 180 ₽/шт

16

51171-08F00

Spring,front

17

51192-19C00

JOINT,SPRING

194 ₽/шт

18

51176-12C00

SPACER,SPRING

719 ₽/шт

19

51351-20C20

BOLT,FORK

3 871 ₽/шт

20

51117-12C00

O RING

194 ₽/шт

21

52111-08F00

ROD,DAMPER

5 474 ₽/шт

22

09280-03002

Прокладка масляного насоса

1 130 ₽/шт

23

51169-20C20

Кольцо

301 ₽/шт

24

51149-20C20

LABEL,S-H

387 ₽/шт

25

01550-08407

Болт 8 X 40

2 070 ₽/шт
