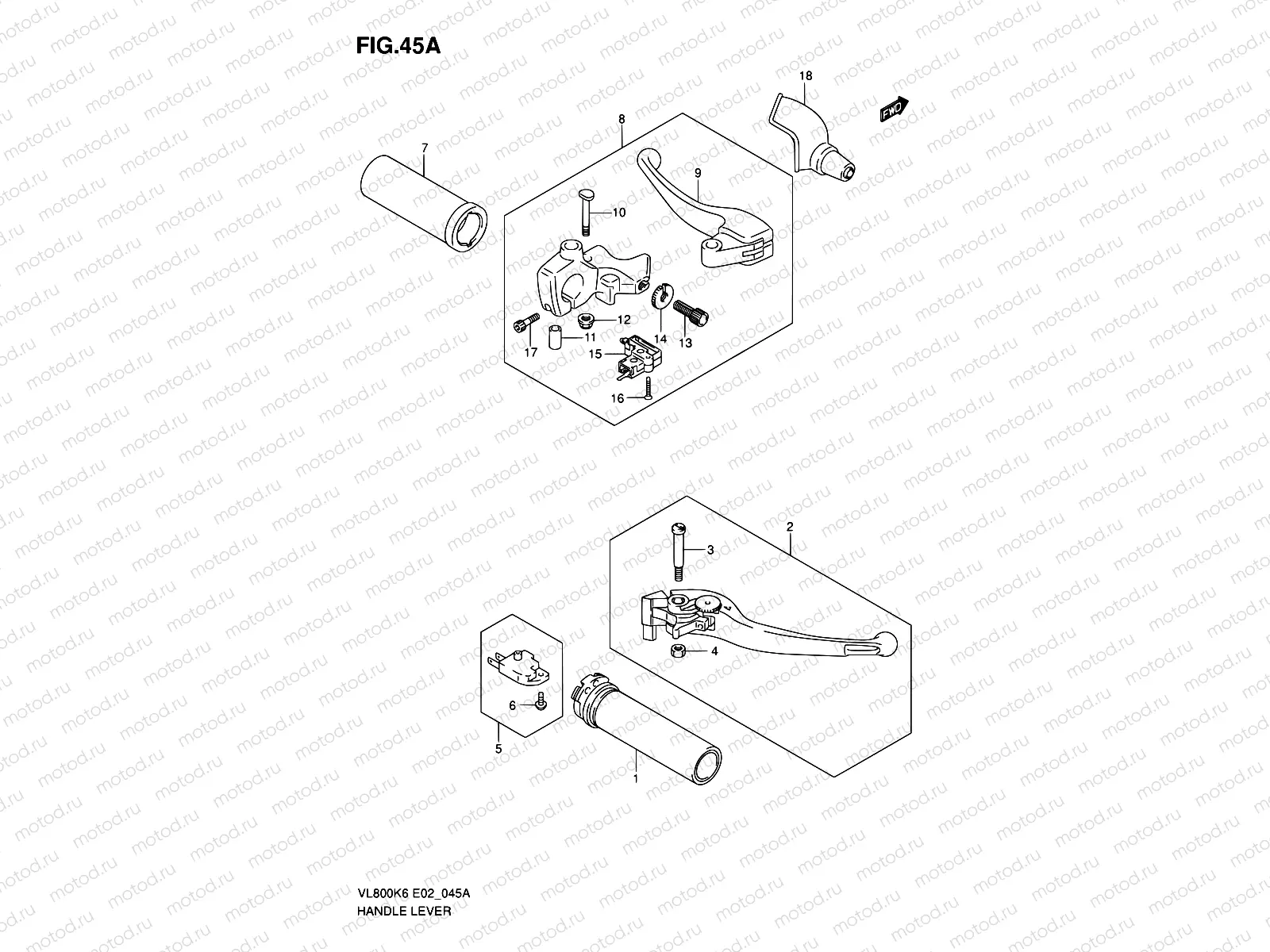

45A - HANDLE LEVER (MODEL K7/K8/K9/L0)

45A - HANDLE LEVER (MODEL K7/K8/K9/L0)
Например: 57110-26D01
1
57110-26D01
Grip,throttle
8 042 ₽/шт
2
57300-48G00
Рычаг тормоза
12 835 ₽/шт
3
57431-48G00
Болт
629 ₽/шт
4
08319-2106A
Гайка
114 ₽/шт
5
57460-14J02
Switch Assy,stop
3 366 ₽/шт
6
57465-17C00
Болт
170 ₽/шт
7
57210-26D01
КОЖУХ РУЧКИ, ЛЕВЫЙ
1 938 ₽/шт
8
57500-48G03
Рычаг сцепления
9 149 ₽/шт
9
57621-48G00
Рукоятка муфты
9 945 ₽/шт
10
57531-48G00
Болт
1 947 ₽/шт
11
57623-48G00
Кольцо/шайба
1 560 ₽/шт
12
08319-3106B
Гайка
1 490 ₽/шт
13
57441-08C01
Adjuster,wire
735 ₽/шт
14
57442-08C01
Nut,lock
708 ₽/шт
15
57560-05A00
ПЕРЕКЛЮЧАТЕЛЬ
816 ₽/шт
16
57562-41G00
Vis
17
07130-0620B
БОЛТ
97 ₽/шт
18
57541-48G01
Cover,clutch le
