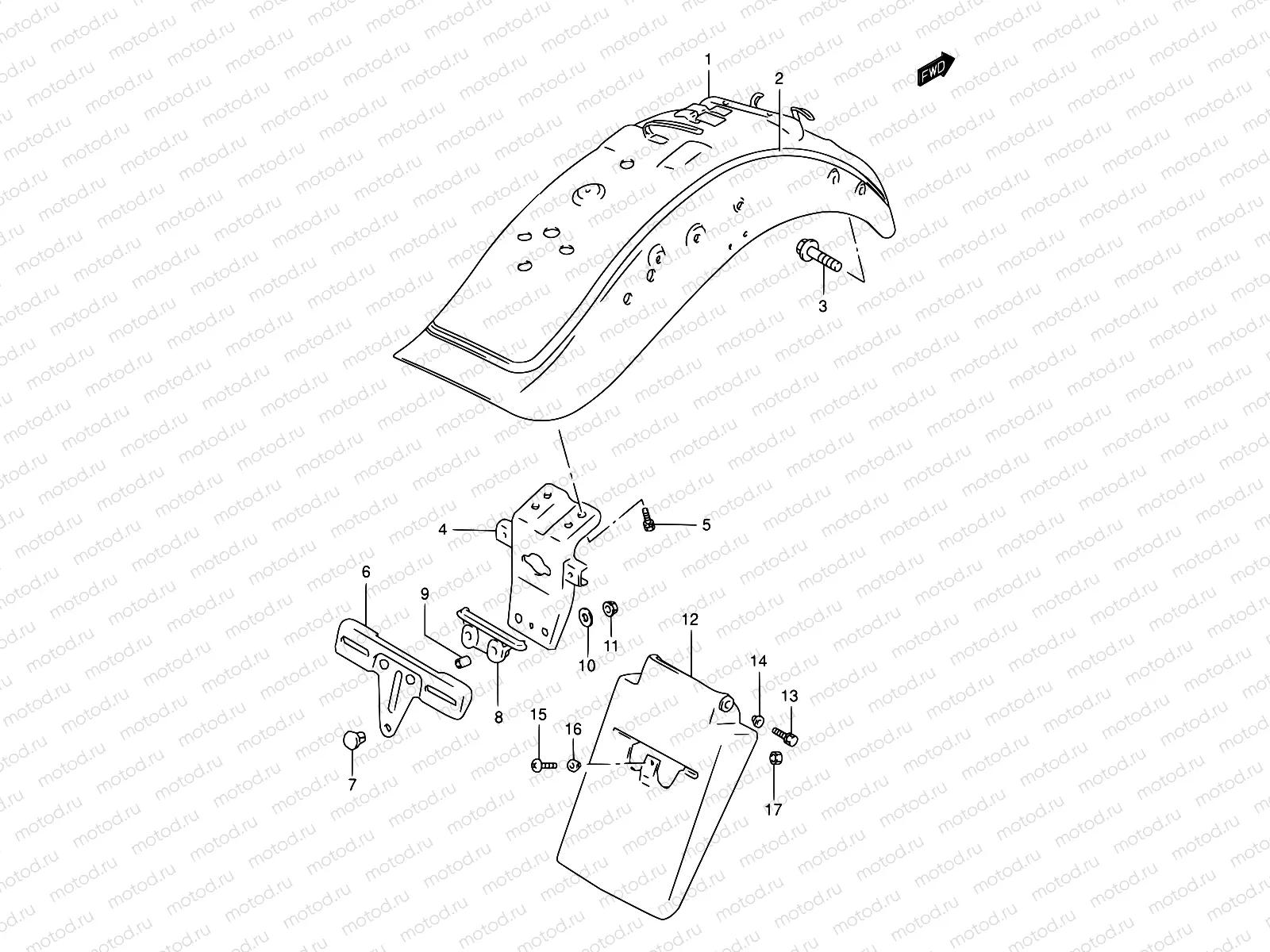

44D - REAR FENDER (MODEL K3)

44D - REAR FENDER (MODEL K3)

Например: 63100-38B70-KT7

1

63100-38B70-KT7

FENDER ASSY,REAR

1

63100-38B70-KT8

FENDER ASSY,REAR

2

68170-38B20-LJ9

.tape set

2

68170-38B20-LK1

.tape set

3

01550-0820A

БОЛТ

102 ₽/шт

4

63460-38B10

racket,license

5

01570-0612A

Болт

85 ₽/шт

6

63463-38B10

PLATE,RR LICENSE

3 030 ₽/шт

7

09321-08005

Damper

8

63464-38B01

Cushion,rr lice

9

09180-05050

Кольцо/шайба

3 010 ₽/шт

10

09160-05501

Шайба (5.5X20X1.2)

81 ₽/шт

11

08316-2005A

Гайка

85 ₽/шт

12

63311-38B00

EXTENSION,RR FENDER

2 620 ₽/шт

13

01570-0616A

Болт

85 ₽/шт

14

09169-06045

Шайба

1 060 ₽/шт

15

02112-3612A

Болт

1 250 ₽/шт

16

09169-06033

Шайба

85 ₽/шт

17

08319-2106A

Гайка

114 ₽/шт
