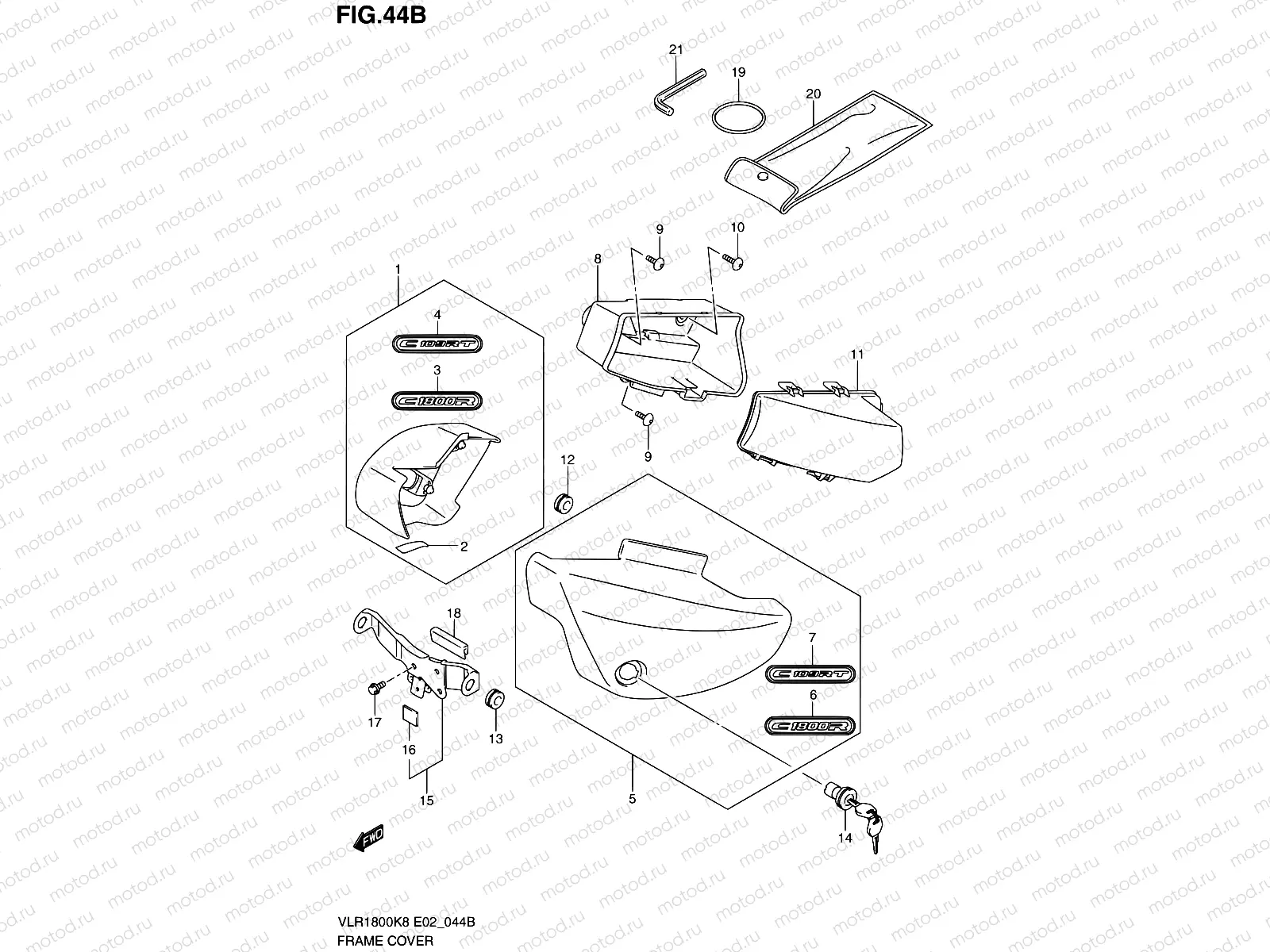

44B - FRAME COVER (VLR1800TK9)

44B - FRAME COVER (VLR1800TK9)

Например: 47110-22H10-YAY

1

47110-22H10-YAY

Cover comp,fram

1

47110-22H10-YSY

Cover comp,fram

1

47110-22HA0-YAY

Cover, frame rh (black)

1

47110-22HA0-YSY

Cover, frame rh (silver)

2

47166-22H00

SHIELD,FRAME COVER,R

1 232 ₽/шт

3

68131-22H11

EMBLEM,C1800R

2 561 ₽/шт

4

68131-22HA0

.emblem

5

47210-22H10-YAY

Cover comp,fram

5

47210-22H10-YSY

Cover, frame lh (silver)

5

47210-22HA0-YAY

Cover, frame lh (black)

5

47210-22HA0-YSY

Cover, frame lh (silver)

6

68131-22H11

EMBLEM,C1800R

2 561 ₽/шт

7

68131-22HA0

.emblem

8

92211-22H00

BODY,LUGGAGE BOX

3 851 ₽/шт

9

09139-06152

Болт

3 520 ₽/шт

10

09139-06172

Болт

1 840 ₽/шт

11

92212-22H00

Груз

3 851 ₽/шт

12

09320-08527

Cushion

1 640 ₽/шт

13

09320-08049

САЙЛЕНТБЛОК

211 ₽/шт

14

95700-07870

LOCK SET,FRAME COVER

10 557 ₽/шт

15

47120-22H00

BRACKET,FRAME COVER

5 474 ₽/шт

16

44894-24A00

CUSHION

98 ₽/шт

17

01550-0610B

Болт

85 ₽/шт

18

47514-10F00

MOLDING,FRAME HEAD COVER

918 ₽/шт

19

09280-61004

O Ring(D:3.5,id:61)

2 700 ₽/шт

20

09800-21102

Tool Assy

3 069 ₽/шт

21

09816-00050

SPANNER,HEXAGON(6)

391 ₽/шт

21

09816-00059

HEXAGON SPANNER,5

391 ₽/шт
