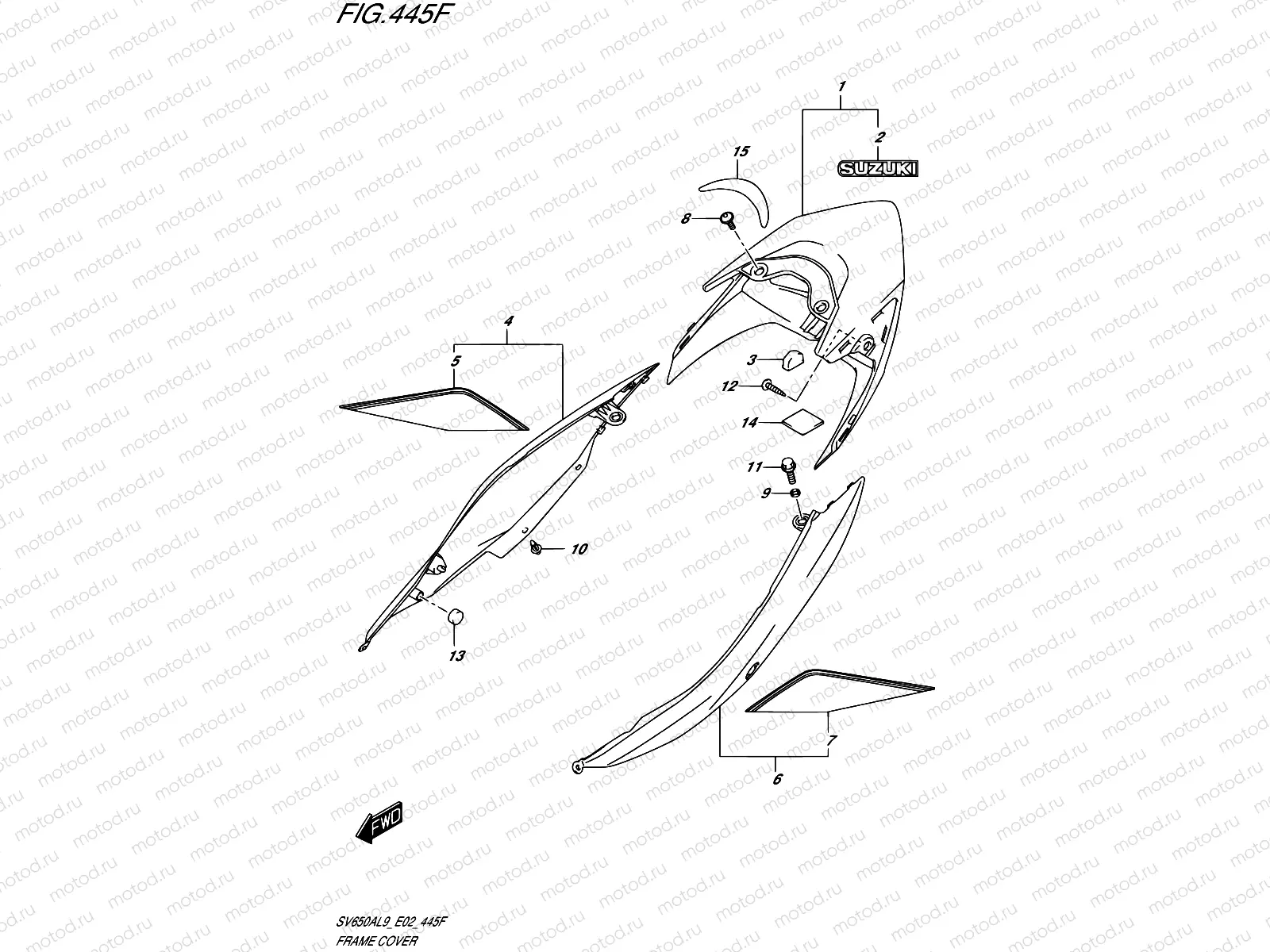

445F - FRAME COVER (SV650XAL9 E19)

445F - FRAME COVER (SV650XAL9 E19)
Например: 47310-18KA1-YVB
1
47310-18KA1-YVB
Cover,frame rr
1 шт. в узле
2
68171-28H10-APT
(NO NAME)
1 шт. в узле
3
47315-18K00
CUSHION,FRAME COVER CTR
782 ₽/шт
1 шт. в узле
4
(NO NAME)
5
(NO NAME)
6
(NO NAME)
7
(NO NAME)
8
09139-05074
Болт №1
136 ₽/шт
2 шт. в узле
9
09180-08052
SPACER(8.5X12X2.5)
1 410 ₽/шт
2 шт. в узле
10
09409-06314-5PK
КЛИПСА КРЕПЁЖНАЯ, ПЛАСТИК
162 ₽/шт
4 шт. в узле
11
01550-0812B
Болт
97 ₽/шт
2 шт. в узле
12
03541-0510A
Болт
72 ₽/шт
2 шт. в узле
13
09329-14003
Cushion(14X20X9)
2 030 ₽/шт
2 шт. в узле
14
33652-20C00
PROTECTOR
187 ₽/шт
2 шт. в узле
15
47312-18K00
TAPE,FRAME COVER REAR CENTER
704 ₽/шт
1 шт. в узле
