Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DL 650 V-Strom SUZUKI DL650XA L7 V-Strom (E27) SUZUKI (VIN: JS1C733A) 445A - FRAME COVER

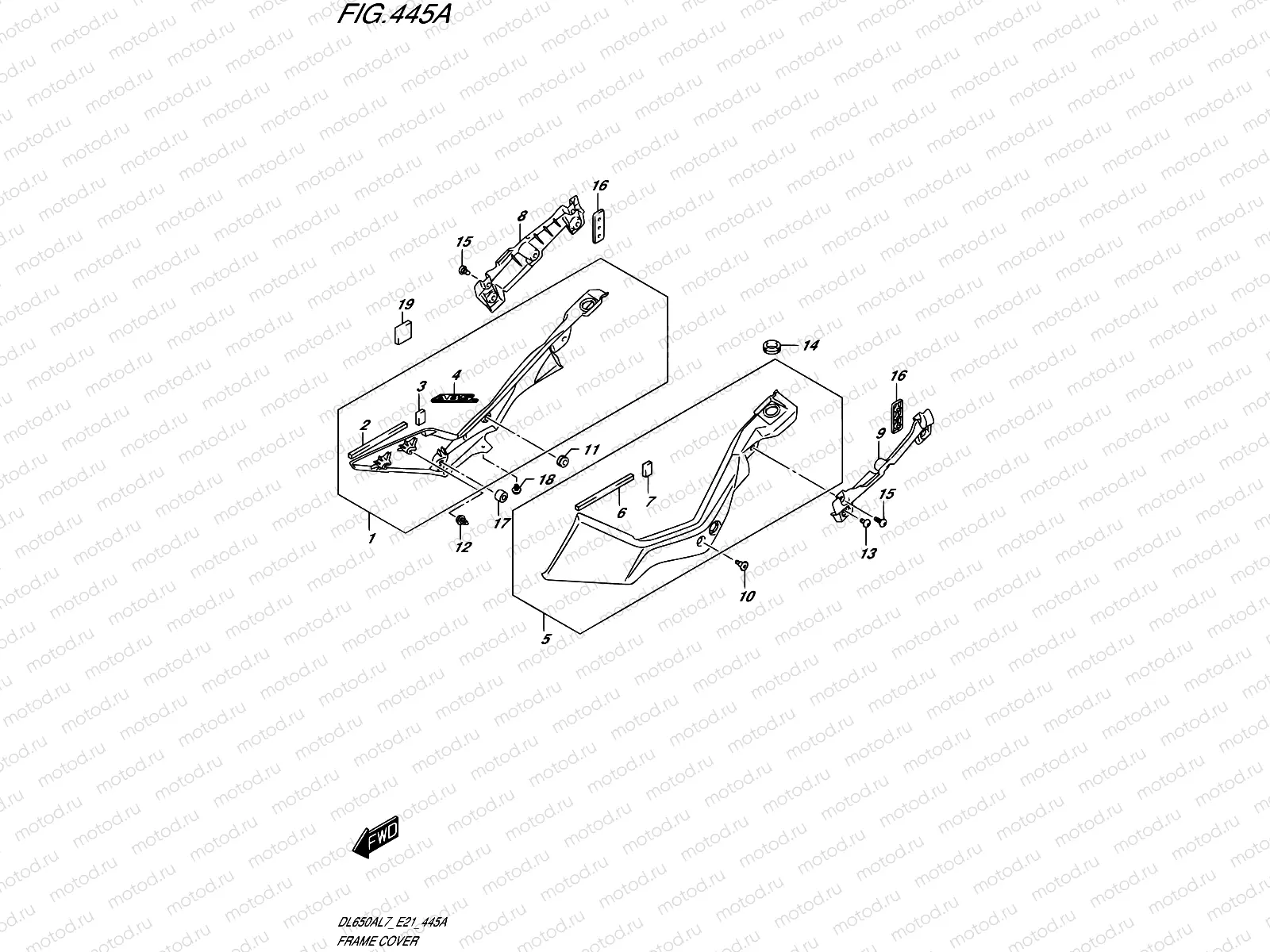

445A - FRAME COVER

445A - FRAME COVER

Например: 47110-28K01-GWM

1

47110-28K01-GWM

Cover,frame,r

9 775 ₽/шт

1 шт. в узле

2

47121-28K00

CUSHION,FRAME COVER FRONT FR

371 ₽/шт

1 шт. в узле

3

47122-28K00

CUSHION,FRAME COVER FRONT RR

371 ₽/шт

1 шт. в узле

4

68131-28K00-GWM

EMBLEM,"ABS"

821 ₽/шт

1 шт. в узле

5

47210-28K00

COVER COMP,FRAME,L

7 038 ₽/шт

1 шт. в узле

6

47121-28K00

CUSHION,FRAME COVER FRONT FR

371 ₽/шт

1 шт. в узле

7

47122-28K00

CUSHION,FRAME COVER FRONT RR

371 ₽/шт

1 шт. в узле

8

47411-31J10

COVER,FRAME REAR,R

833 ₽/шт

1 шт. в узле

9

47511-31J10

COVER,FRAME REAR,L

833 ₽/шт

1 шт. в узле

10

09139-06211

SCREW,FRAME COVER

170 ₽/шт

2 шт. в узле

11

09320-09016

РЕЗИНКА

162 ₽/шт

2 шт. в узле

12

09409-10313

CLIP

1 330 ₽/шт

4 шт. в узле

13

47913-31J00

SCREW

170 ₽/шт

6 шт. в узле

14

09320-20011

Cushion

2 070 ₽/шт

2 шт. в узле

15

09139-06120

Винт

136 ₽/шт

4 шт. в узле

16

47510-28K00

SPACER COMP,FRAME COVER

1 173 ₽/шт

2 шт. в узле

17

09321-10001

CUSHION

187 ₽/шт

2 шт. в узле

18

09409-06328

ХОМУТ МАЛЫЙ

291 ₽/шт

3 шт. в узле

19

47123-28K00

CUSHION,FRAME COVER

371 ₽/шт

2 шт. в узле
