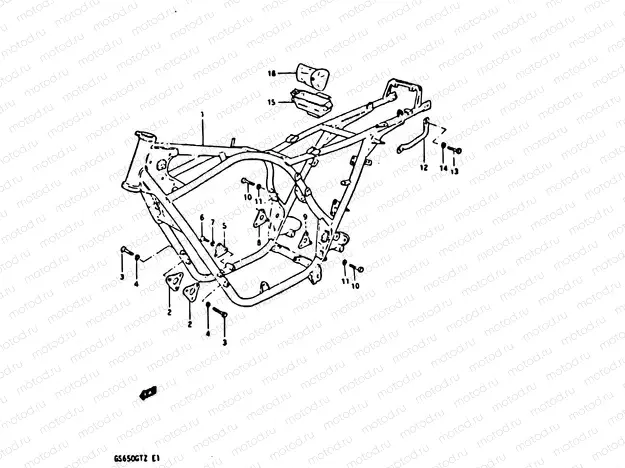

44 - FRAME

44 - FRAME

Например: 41100-34250-019

1

41100-34250-019

Frame (black)

2

41910-34200-019

Plate, no.1 (black)

3

01500-0860B

Болт

2 030 ₽/шт

4

08321-01087

Пластина замка

81 ₽/шт

5

41921-34200-019

Plate, no.2 (black)

6

01500-0816B

Болт

85 ₽/шт

7

08321-01087

Пластина замка

81 ₽/шт

8

41970-34200-019

Plate, no.4 rh (black)

9

41980-34200-019

Plate, no.4 lh (black)

10

01500-0816B

Болт

85 ₽/шт

11

08321-01067

Шайба, стопорная

81 ₽/шт

12

41610-34200

Grip,frame hand

13

01500-0816B

Болт

85 ₽/шт

14

08322-01087

Шайба

81 ₽/шт

15

41551-34200

Holder, tool

16

09800-06801

Tool assy
