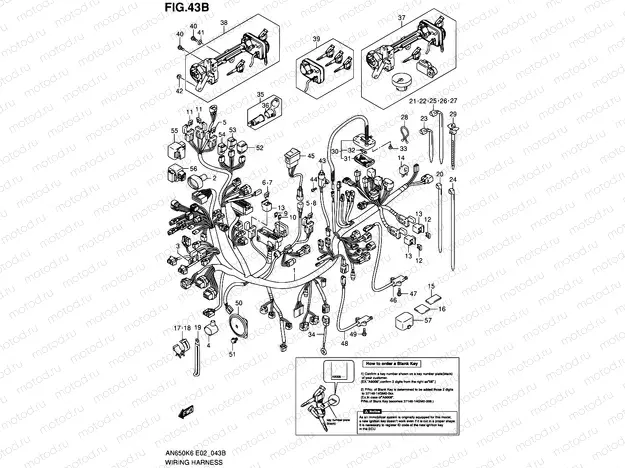

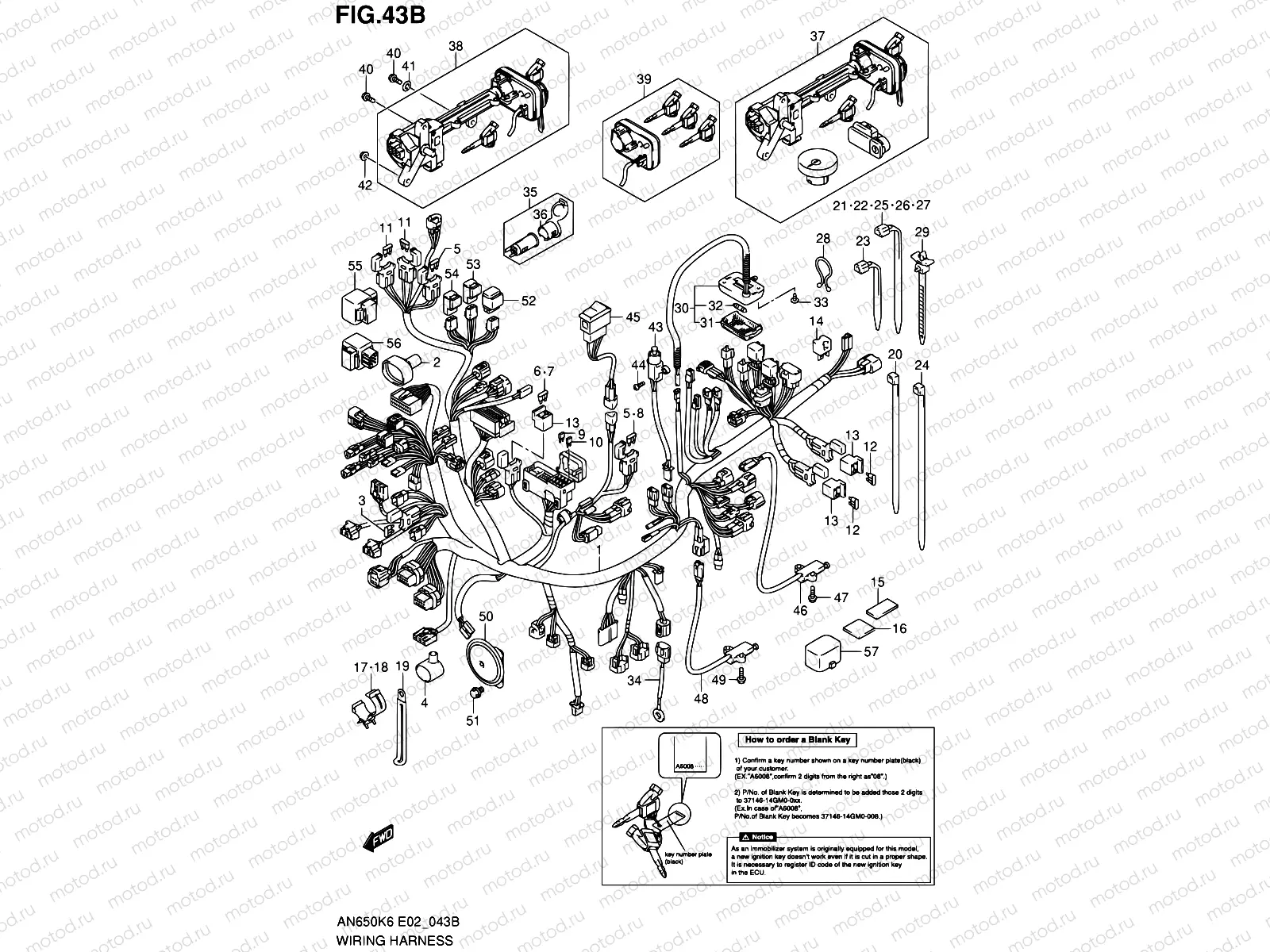

43B - WIRING HARNESS (AN650AK9/AL0 E02/E19/P37)

43B - WIRING HARNESS (AN650AK9/AL0 E02/E19/P37)

Например: 36610-19HL1

1

36610-19HL1

arness wire

1

36610-19HR1

arness wire

1

36610-19HK1

arness wire

2

36618-21E00

COVER

688 ₽/шт

3

09481-03101

FUSE(3A)

980 ₽/шт

4

36717-19H00

Boot

5

09481-10005-025

Fusible (5A)

6

09481-10015-025

Fusible (15A)

7

09481-10010-025

Fusible (10A)

8

09481-10020-025

Fusible (20A)

9

09481-10504

Ограничитель,10A

1 250 ₽/шт

10

09481-15501-LCP

Fusible (10A)

11

09481-10015-025

Fusible (15A)

12

09481-40101

FUSE(40A)

4 970 ₽/шт

13

36742-39D00

HOLDER,FUSE

1 052 ₽/шт

14

32800-16A00

Диод

1 697 ₽/шт

15

36920-08D00

PROTECTOR(30X60X3)

152 ₽/шт

17

09403-25401

CLAMP

2 030 ₽/шт

18

09403-30403

CLAMP

2 270 ₽/шт

19

09404-06036

Clamp(L:80)

194 ₽/шт

20

09407-14407

ЗАЖИМ

221 ₽/шт

21

09407-14403

КЛЕММА

221 ₽/шт

22

09407-14403

КЛЕММА

221 ₽/шт

23

09407-14407

ЗАЖИМ

221 ₽/шт

24

09407-17402

CLAMP

210 ₽/шт

25

09407-18402

Струбцина (L:165)

211 ₽/шт

26

09407-22403

CLAMP(L:220)

1 370 ₽/шт

27

09407-25401

Хомут

221 ₽/шт

28

09408-00012

Проводка

1 210 ₽/шт

29

09407-11402

КОЛЬЦО

186 ₽/шт

30

36210-10G00

LAMP ASSY,TRUNK BOX

4 966 ₽/шт

31

36212-79001

Линза

2 989 ₽/шт

32

09471-12073-LCP

BULB 12V.5W AN650

33

03541-0412B

Болт

85 ₽/шт

34

36851-10G00

Wire,oil pressu

35

39410-76F00-P4Z

Гнездо

2 522 ₽/шт

36

39441-76F00-P4Z

COVER

735 ₽/шт

37

37103-10826

Lock Set

66 198 ₽/шт

37

37103-10846

Lock set

38

37120-10846

Lock assy,steer

39

37155-10GF3

Shutter, lock a

39

37155-10G01

SHUTTER,STEERING LOCK

14 858 ₽/шт

40

09139-06048

SCREW(6X20)

1 060 ₽/шт

41

09160-06109

Шайба

85 ₽/шт

42

08316-1006B

Гайка

81 ₽/шт

43

37980-14F00

SWITCH ASSY,TRUNK BOX LAMP

4 966 ₽/шт

44

02112-0516B

Болт

1 090 ₽/шт

45

37320-19H00

SWITCH ASSY,SEAT HEATER

8 680 ₽/шт

46

37840-10G01

Switch Assy,side Stand

8 041 ₽/шт

47

01550-0620B

БОЛТ

81 ₽/шт

48

37840-20E01

Switch Assy,side Stand

9 444 ₽/шт

49

01550-0620B

БОЛТ

81 ₽/шт

50

38500-10G00

Звуковой сигнал

4 927 ₽/шт

51

01550-0812B

Болт

97 ₽/шт

52

38740-24X50

RELAY ASSY, HEAD LAMP

2 665 ₽/шт

53

38740-26E01

Relay Assy,fuel Pump

2 287 ₽/шт

54

38740-26E01

Relay Assy,fuel Pump

2 287 ₽/шт

55

38750-03G00

RELAY ASSY,DRIVE

8 602 ₽/шт

56

38750-10G00

RELAY ASSY,SCREEN

8 602 ₽/шт
