Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GS 500 SUZUKI GS500 K5 (P03,P28,P33) SUZUKI 43 - SEAT

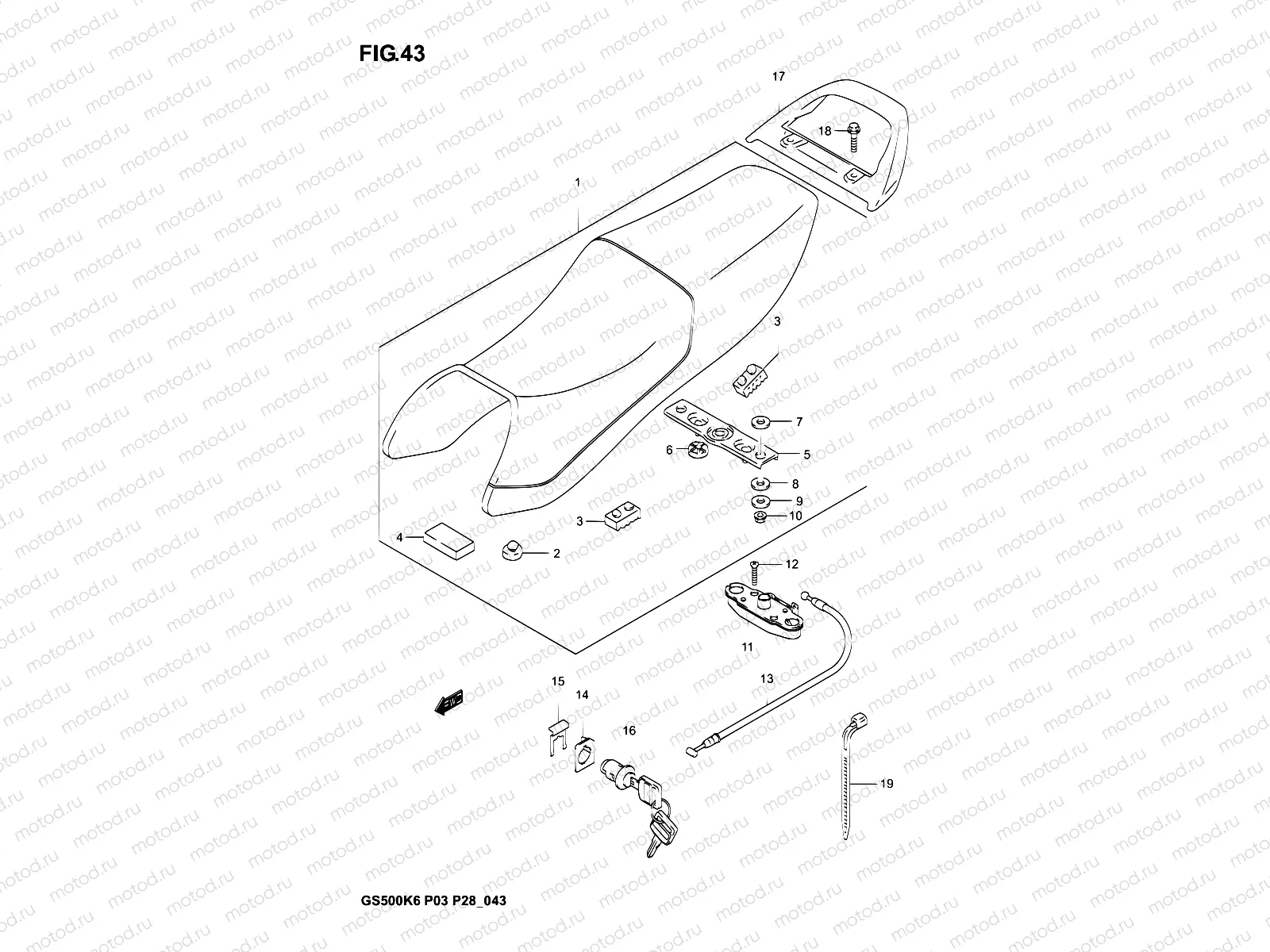

43 - SEAT

43 - SEAT

Например: 45100-C01D2-0JFH4

1

45100-C01D2-0JFH4

Seat assy

30 793 ₽/шт

2

45148-36C01

ushion,seat

289 ₽/шт

3

45147-12FA0

CUSHION,RR

255 ₽/шт

4

94982-C2940-0J000

ushion, battery stopper

209 ₽/шт

5

45215-22A00

STRIKER,SEAT LOCK

2 326 ₽/шт

6

45213-13601

CUSHION,SEAT LOCK(10X22X6)

194 ₽/шт

7

45126-41B00

CUSHION,UPR

164 ₽/шт

8

45127-41B00

CUSHION,LWR

164 ₽/шт

9

09689-06202

Шайба

83 ₽/шт

10

08310-0006B

Гайка

81 ₽/шт

11

45220-47H00

BRACKET,SEAT SUPPORT

7 390 ₽/шт

12

D2116-0630B

Vis

13

45280-38400

Кабель замка

782 ₽/шт

14

45288-14F00

Направляющая кабеля

262 ₽/шт

15

45289-11F00

PLATE SEAT LOCK ASSY

275 ₽/шт

16

95700-14810

ЗАМОК ВМЕСТЕ С КЛЮЧАМИ

4 522 ₽/шт

17

46211-C01D0-0JETN

Handle, pillion rider

14 685 ₽/шт

18

01550-0825A

Болт

119 ₽/шт

19

D9448-02875

Collier
