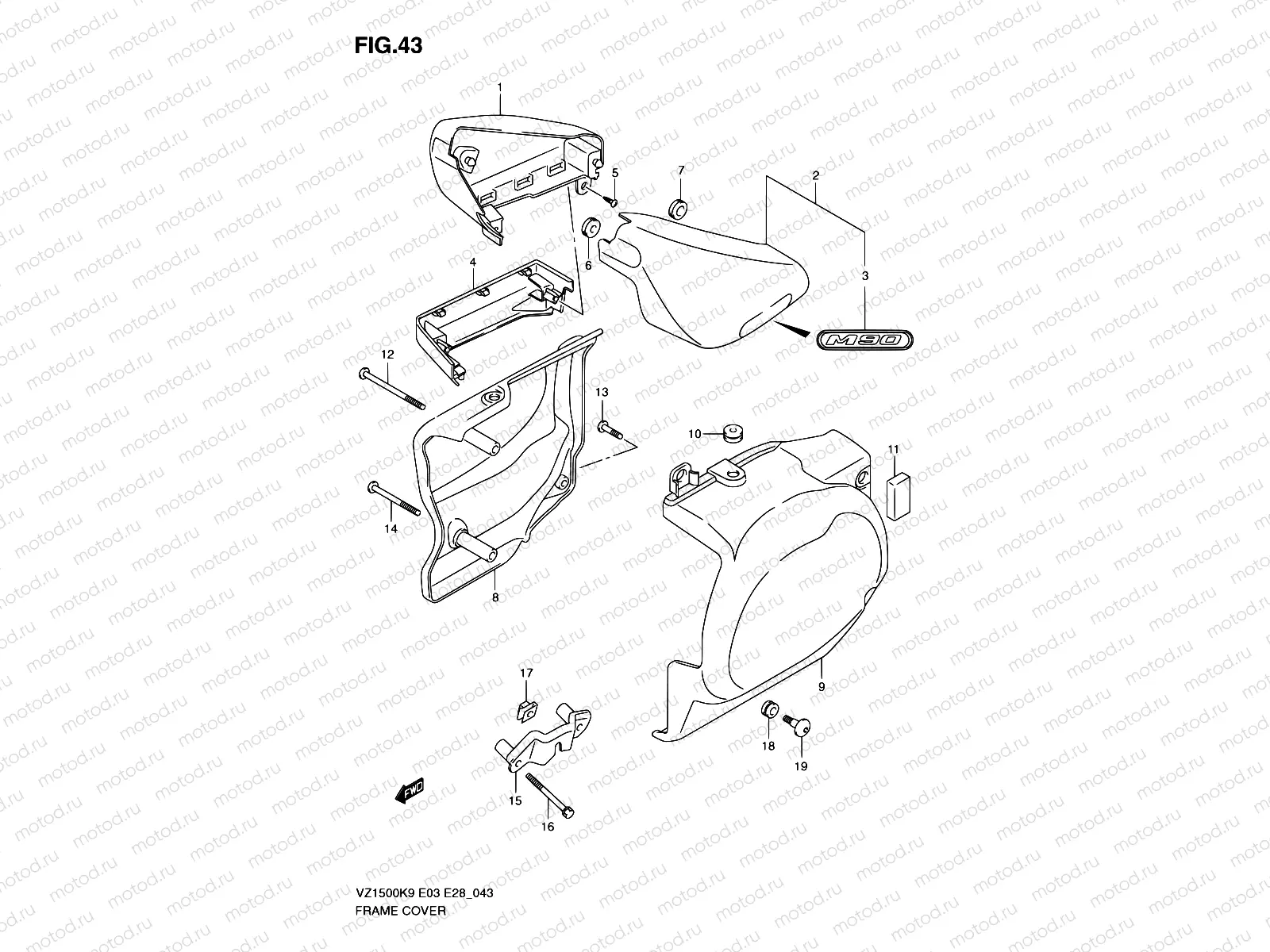

43 - FRAME COVER

43 - FRAME COVER
Например: 47110-40H00-YAY
1
47110-40H00-YAY
Cover, side rh (black)
1
47110-40H01-YHL
COVER,SIDE,R(RED)
20 723 ₽/шт
1
47110-40H00-YSF
Cover, side rh (blue)
2
47210-40H00-YAY
Cover, side lh (black)
2
47210-40H00-YHL
Cover, side lh (red)
2
47210-40H00-YSF
Cover, side lh (blue)
3
68131-40H00
.emblem
4
47121-40H00
COVER,SIDE LWR,R
8 461 ₽/шт
5
03541-0516A
Болт
81 ₽/шт
6
09320-08049
САЙЛЕНТБЛОК
211 ₽/шт
7
09320-08527
Cushion
1 640 ₽/шт
8
47130-40H00
COVER,LWR,R
23 460 ₽/шт
9
47231-40H00
COVER,LWR,L
38 378 ₽/шт
10
09320-06504
САЙЛЕНТБЛОК
194 ₽/шт
11
51827-01A00
CUSHION,HEAD LAMP HOUSING
533 ₽/шт
12
47139-40H00
SCREW,LWR COVER,R FR UP
657 ₽/шт
13
09139-06140
SCREW(6X16)
2 270 ₽/шт
14
47138-40H00
SCREW,LWR COVER,R FR LWR
590 ₽/шт
15
47250-40H00
Bracket comp,lo
16
01547-0650A
Болт
1 410 ₽/шт
17
09148-06018
Гайка
170 ₽/шт
18
09320-09016
РЕЗИНКА
162 ₽/шт
19
09139-06126
БОЛТ МЕТАЛЛ (6х20)
194 ₽/шт
