Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSX 600 F SUZUKI GSX600F R SUZUKI 42A - SEAT (MODEL R/S/T)

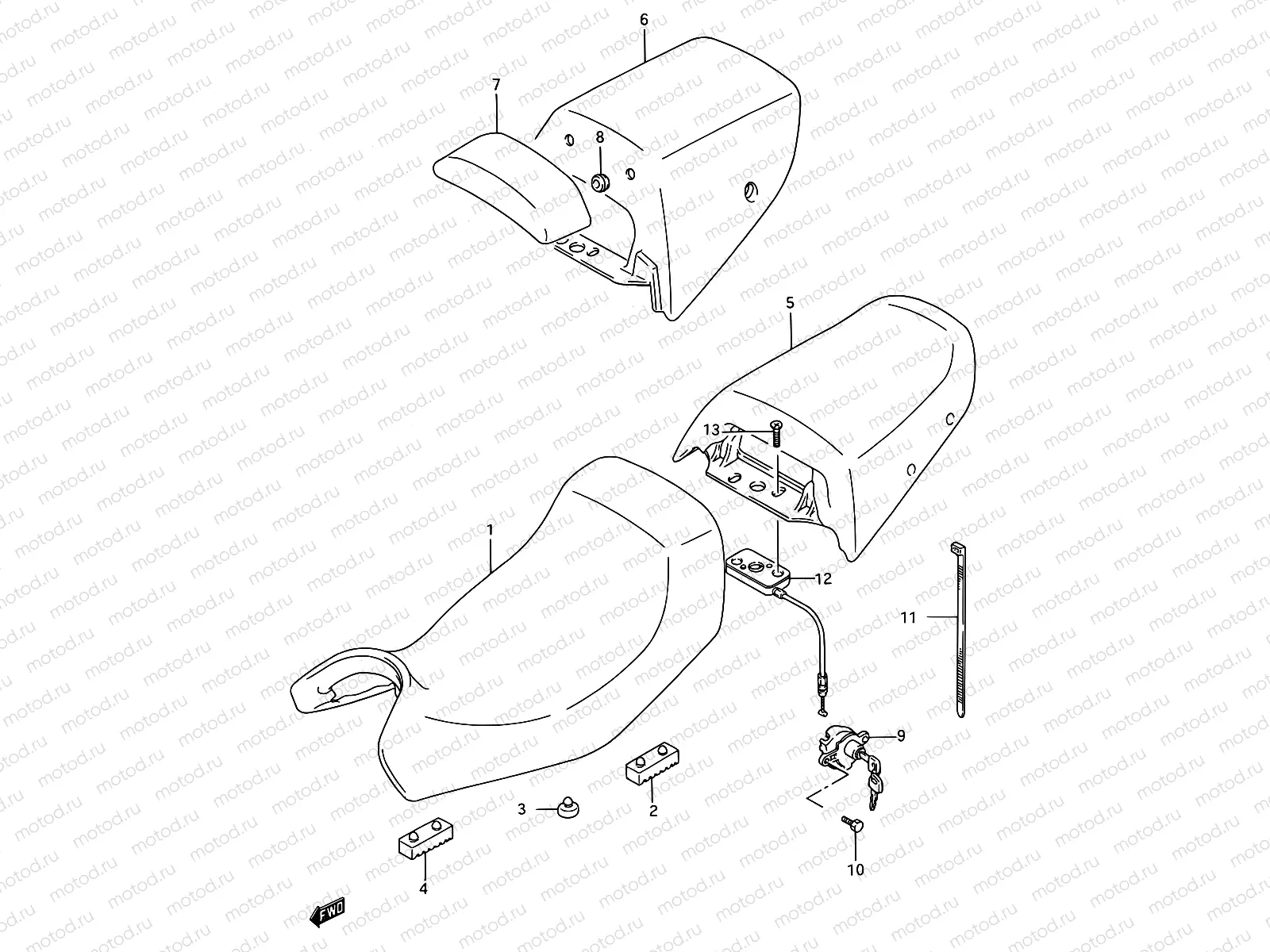

42A - SEAT (MODEL R/S/T)

42A - SEAT (MODEL R/S/T)
Например: 45100-19C00-58R
1
45100-19C00-58R
Seat assy
1
45100-19C00-6WT
Seat set (purple)
2
45149-43500
CUSHION,SEAT
510 ₽/шт
3
09321-10012
САЙЛЕНТБЛОК
178 ₽/шт
4
45149-31300
CUSHION,SEAT(40X20X15)
510 ₽/шт
5
45300-19C00-6YD
Seat set,pillio
5
45300-19C00-58R
Seat set,pillio
6
45500-19810
6
45500-19C00-1ZV
over, seat tail (green)
6
45500-19C00-2JX
over, seat tail (black)
7
45350-19C00-58R
.pad assy, seat tail (black)
7
45350-19C00-P55
.pad assy, seat tail (purple)
8
09320-09062
Damper
9
45700-19841
Cap set,seat
10
01570-0616A
Болт
85 ₽/шт
11
09407-18402
Струбцина (L:165)
211 ₽/шт
12
45220-19C00
Bracket comp,se
13
02122-0630B
Болт
1 250 ₽/шт
