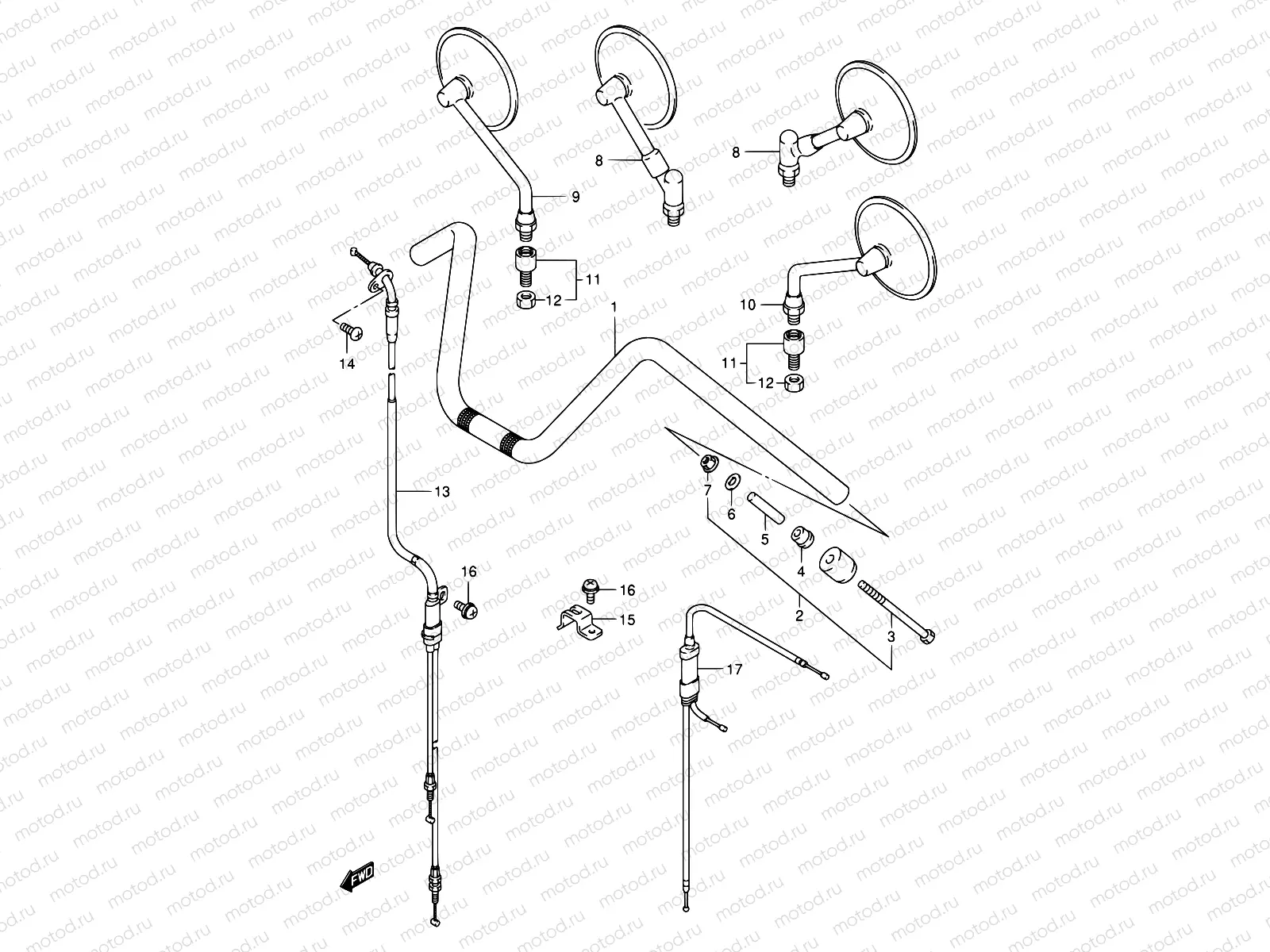

42A - HANDLEBAR (MODEL Y/K1/K2/K3)

42A - HANDLEBAR (MODEL Y/K1/K2/K3)

Например: 56111-38E00

1

56111-38E00

HANDLEBAR

22 287 ₽/шт

2

56200-48831

BALANCER SET,HANDLEBAR

8 245 ₽/шт

3

09127-06019

SCREW(6X110)

2 740 ₽/шт

4

56272-26D01

EXPANDER,HANDLE BALANCER NO.2

436 ₽/шт

5

56276-17D00

Кольцо/шайба

194 ₽/шт

6

09160-06121

Шайба

1 520 ₽/шт

7

09159-06024

Гайка

136 ₽/шт

8

56500-38AE0

MIRROR ASSY,RR VIEW

34 995 ₽/шт

9

56500-38AB2

Mirror Assy,rr View,r

30 498 ₽/шт

10

56500-38AB2

Mirror Assy,rr View,r

30 498 ₽/шт

11

56700-45400

CUSHION ASSY,RR VIEW MIRROR

1 771 ₽/шт

12

08310-00107

Гайка

85 ₽/шт

13

58300-38B30

Кабель дросселя

8 721 ₽/шт

14

02142-05087

Винт 5X8 CROSS

85 ₽/шт

15

58621-38B00

CLAMP,THROTTLE CABLE CONNECTOR

422 ₽/шт

16

02112-7512A

Болт

1 410 ₽/шт

17

58400-39B00

Кабель стартера
