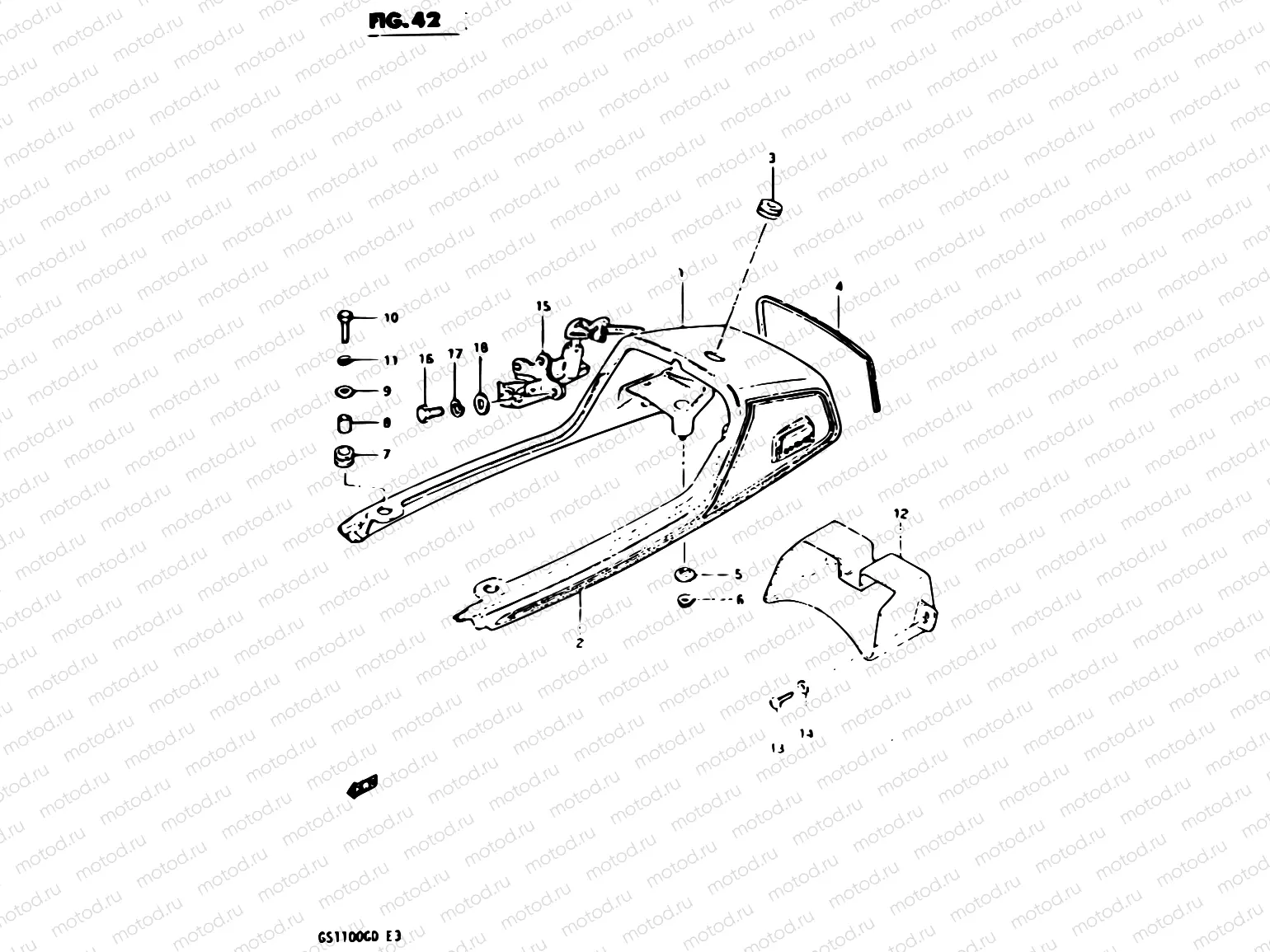

42 - TAIL COVER (MODEL Z)

42 - TAIL COVER (MODEL Z)
Например: 45510-49400
1
45510-49400
Cover seat tail (black) cover seat tail (red)
2
68160-49410-764
.tape set (gold)
3
45522-49200
GROMMET,SEAT LOCK HOLE
571 ₽/шт
4
45562-49400
Molding seat tail
5
09169-06016
WASHER
170 ₽/шт
6
08319-2106A
Гайка
114 ₽/шт
7
09320-10003
CUSHION
1 640 ₽/шт
8
09180-06290
Кольцо/шайба
1 250 ₽/шт
9
09160-06134
Шайба
102 ₽/шт
10
09118-06086
Болт 6X25
1 680 ₽/шт
11
08321-01067
Шайба, стопорная
81 ₽/шт
12
94991-49400
Box seat tail
13
02142-06127
Винт 6X12
81 ₽/шт
14
08321-01067
Шайба, стопорная
81 ₽/шт
15
95700-49830
Lock set,seat
16
01500-06127
Болт
81 ₽/шт
17
08321-01067
Шайба, стопорная
81 ₽/шт
18
08322-0106A
Шайба
81 ₽/шт
