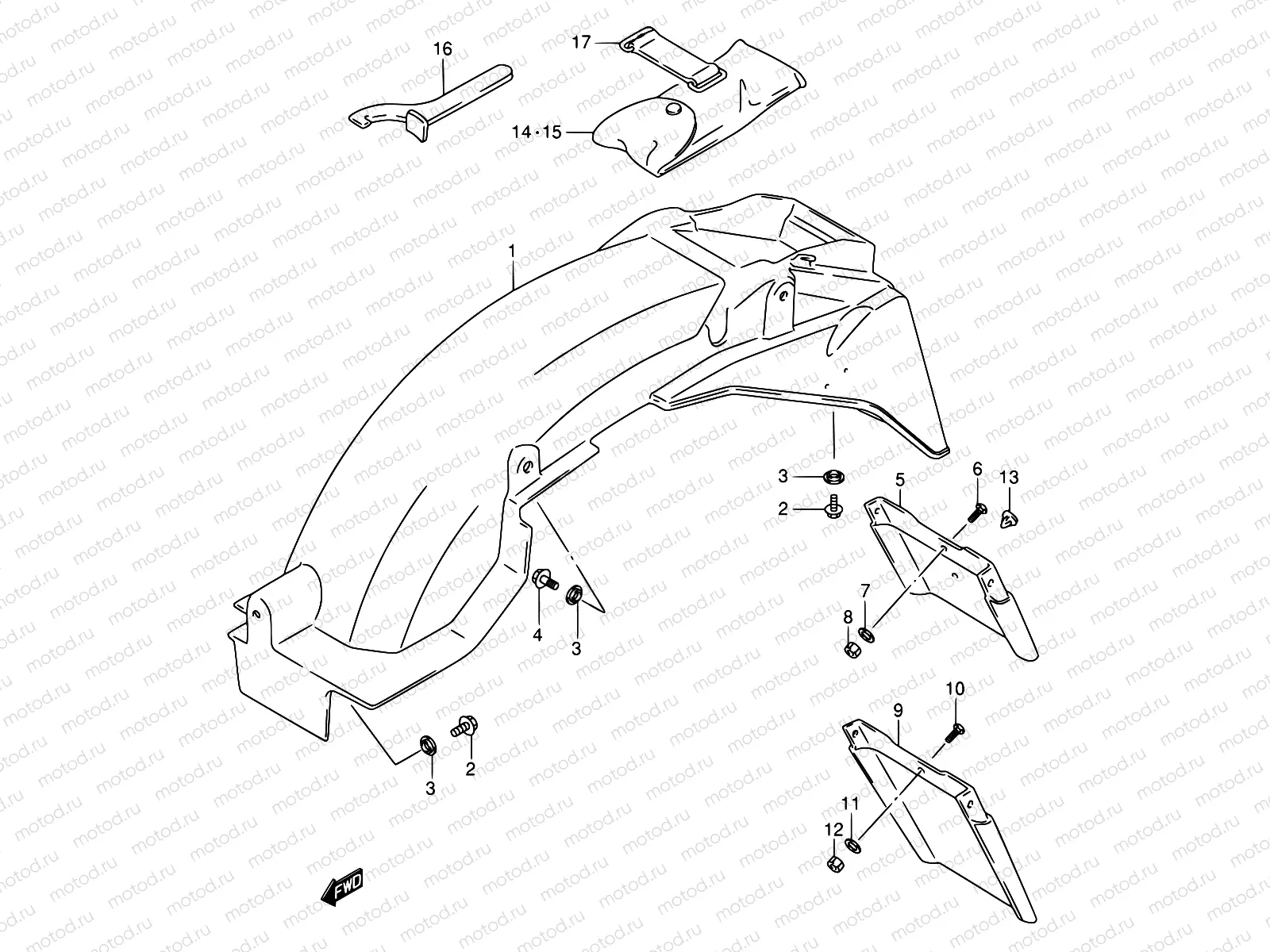

42 - REAR FENDER (MODEL K/L/M/N/P/R)

42 - REAR FENDER (MODEL K/L/M/N/P/R)
Например: 63111-20C00
1
63111-20C00
Fender,rear
1
63111-20C20
Body, rear fender
1
63111-20C30
BODY,RR FENDER
10 909 ₽/шт
1
63111-20C50
Body, rear fender
2
09128-06058
SCREW(6X10)
136 ₽/шт
3
09169-06011
Пластина замка
759 ₽/шт
4
09128-06023
Болт 6X20
820 ₽/шт
5
63311-48B01
Extension, rear fender
5
63311-48B21
Extension, rear fender
6
02142-0616A
Болт
81 ₽/шт
7
09160-06019
Шайба
81 ₽/шт
8
08319-2106A
Гайка
114 ₽/шт
9
63331-48B12
Mud guard,rear
10
02142-0616A
Болт
81 ₽/шт
11
09160-06019
Шайба
81 ₽/шт
12
08319-2106A
Гайка
114 ₽/шт
13
09409-07320
CAP
1 840 ₽/шт
14
09822-00005
CLAMP
845 ₽/шт
14
09800-21074
Tool assy
17
09462-00034
ХОМУТ
510 ₽/шт
18
99011-20C58-042
O.m.gsx750/600f
18
99011-20C52-028
Manual, owner's
18
99011-20C58-042
O.m.gsx750/600f
18
99011-20C58-042
O.m.gsx750/600f
18
99011-20C58-042
O.m.gsx750/600f
18
99011-20C55-028
Manual, owner's
18
99011-20C58-042
O.m.gsx750/600f
