Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GS 1000 SUZUKI GS1000G X SUZUKI 42 - REAR COMBINATION LAMP (E02, E04, E21)

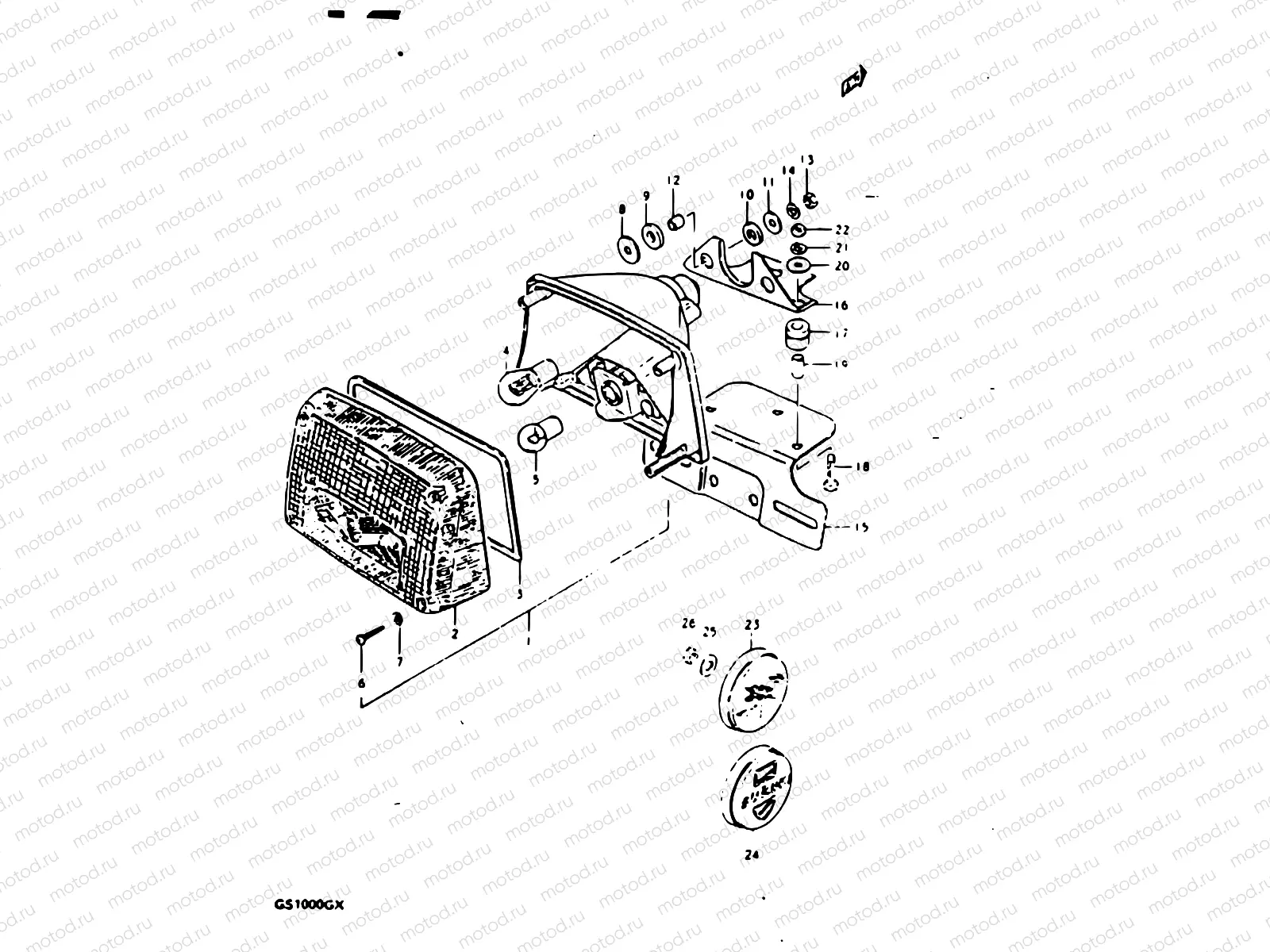

42 - REAR COMBINATION LAMP (E02, E04, E21)

42 - REAR COMBINATION LAMP (E02, E04, E21)

Например: 35710-49052-999

1

35710-49052-999

Lamp,rr. combi

2

35712-49031

Линза

10 200 ₽/шт

3

35713-49030

Gasket

4

40503-00838-069

P21/5w,5w, bay1 (12V 21/5W BAY15d)

5

09471-12140-LCP

Bulb

6

03511-0416A

Болт

900 ₽/шт

7

35627-43010

GASKET

179 ₽/шт

8

09160-06084

Шайба 6.5X18X1

81 ₽/шт

9

09320-09004

CUSHION

210 ₽/шт

10

09320-09003

CUSHION

1 290 ₽/шт

11

09160-06054

Шайба

129 ₽/шт

12

09180-06038

ВТУЛКА

1 020 ₽/шт

13

08310-00067

Гайка

81 ₽/шт

14

08321-01067

Шайба, стопорная

81 ₽/шт

15

35927-49091

Plate, license

16

35928-49031

Bracket, license plate

17

35765-30950

CUSHION

250 ₽/шт

18

09118-06086

Болт 6X25

1 680 ₽/шт

19

09180-06269

SPACER(6.5X9X15.5)

2 460 ₽/шт

20

09160-06084

Шайба 6.5X18X1

81 ₽/шт

21

08321-01067

Шайба, стопорная

81 ₽/шт

22

08310-00067

Гайка

81 ₽/шт

23

35950-49080

REFLEX REFLECTOR,RR

1 443 ₽/шт

24

35992-49040

Emblem, rear side

25

08322-0105B

Шайба

81 ₽/шт

26

08310-00057

Гайка

81 ₽/шт
